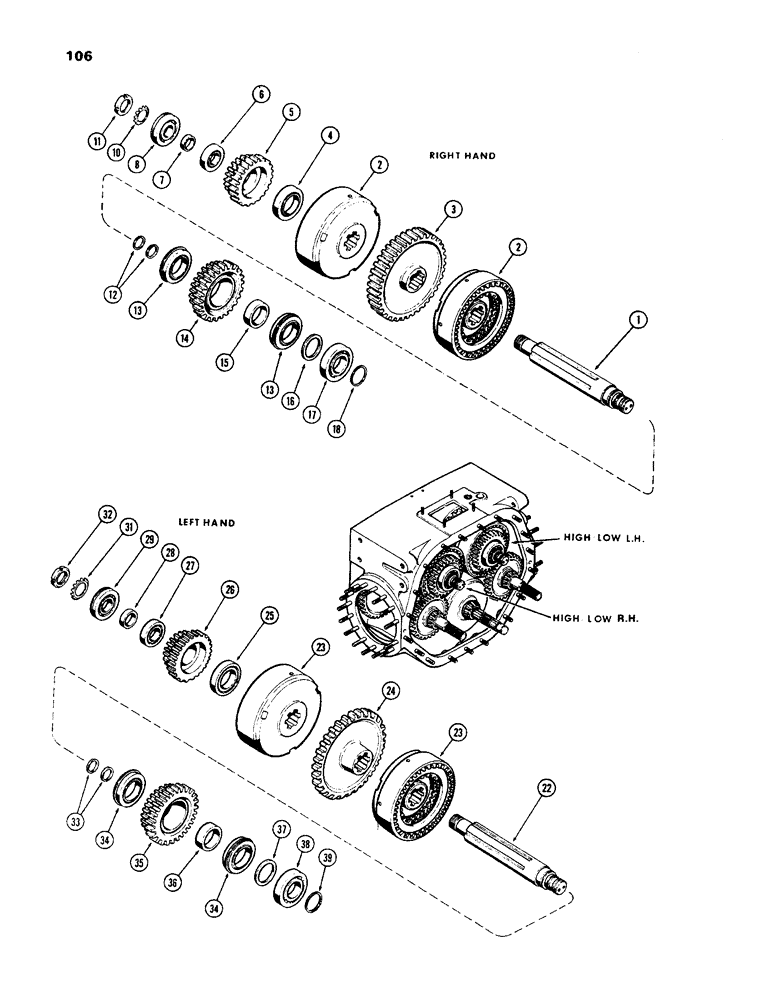

Запчасти Case 450 (106) - HIGH-LOW CLUTCH SHAFTS, WITH CONSTANT RUNNING P.T.O., R.H. (03) - TRANSMISSION

1

A50521

SHAFT

ASSY.

1шт.

2

A50412

CLUTCH

ASSY. - high-low (See Figure 108)

2шт.

3

A50508

GEAR

- drive (51T) (W/1-1/2" wide tooth)

1шт.

4

G10418

BEARING, BALL

BEARING - ball, low clutch gear inner (1-61/64 x 3-9/64 x 5/8")

1шт.

5

A50574

SHAFT

GEAR- drive, low clutch (20 & 29T)

1шт.

6

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- ball, low clutch gear outer (1-3/8 x 2-7/16 x 35/64")

1шт.

7

A50036

RING

SPACER - bearing, low clutch drive gear (1-3/8 x 1-5/8 x 7/16")

1шт.

8

40031

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

ASSY - rear, clutch shaft

1шт.

10

192-307

LOCK WASHER,Type W-07

WASHER - lock, rear bearing

1шт.

11

131-1007

LOCK NUT,Bearing, 1.3780" Bore

NUT - lock, shaft bearings

1шт.

12

A50039

SEAL

RING - seal, clutch shaft oil collector

2шт.

13

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSY. - high clutch gear

2шт.

14

A50509

GEAR WHEEL

GEAR - drive, high clutch (29 & 32T)

1шт.

15

A50035

BUSHING

SPACER - high clutch gear bearings (1-21/32 x 2-3/8 x 49/64")

1шт.

16

A50034

SPACER

- front clutch shaft bearing (1-31/32 x 2-3/8 x 1/8")

1шт.

17

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, clutch shaft front (1-49/64 x 3-11/32 x 3/4")

1шт.

18

A50033

SNAP RING,#177, 1.657", Ext

RING - snap, front bearing retaining

1шт.

22

A50521

SHAFT

ASSY., L.H. with narrow gear

1шт.

23

A50412

CLUTCH

ASSY. - high-low (See Figure 108), L.H. with narrow gear

2шт.

24

A50511

GEAR

- drive (51T) (11/16" wide tooth), L.H. with narrow

1шт.

25

G10418

BEARING, BALL

BEARING - ball, low clutch gear inner (1-61/64 x 3-9/64 x 5/8"), L.H. with narrow gear

1шт.

26

A50574

SHAFT

GEAR - drive, low clutch (20 & 29T), L.H. with narrow

1шт.

27

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- ball, low clutch gear outer (1-3/8 x 2-7/16 x 35/64"), L.H. with narrow

1шт.

28

A50036

RING

SPACER - low clutch drive gear bearing (1-3/8 x 1-5/8 x 7/16"), L.H. with narrow

1шт.

29

40031

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

ASSY. - clutch shaft rear, L.H. with narrow gear

1шт.

31

192-307

LOCK WASHER,Type W-07

WASHER - lock, rear bearing, L.H. with narrow gear

1шт.

32

131-1007

LOCK NUT,Bearing, 1.3780" Bore

NUT - lock, shaft bearings, L.H. with narrow gear

1шт.

33

A50039

SEAL

RING - seal, clutch shaft oil collector, L.H. with narrow gear

2шт.

34

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSY. - high clutch gear, L.H. with narrow

2шт.

35

A50509

GEAR WHEEL

GEAR - drive, high clutch (29 & 32T), L.H. with narrow

1шт.

36

A50035

BUSHING

SPACER - high clutch gear bearings (1-31/32 x 2-3/8 x 49/64"), L.H. with narrow

1шт.

37

A50034

SPACER

- front clutch shaft bearing (1-31/32 x 2-3/8 x 1/8"), L.H. with narrow gear

1шт.

38

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, clutch shaft front (1-49/64 x 3-11/32 x 3/4"), L.H. with narrow gear

1шт.

39

A50033

SNAP RING,#177, 1.657", Ext

RING - snap, front bearing retaining, L.H. with narrow gear

1шт.
