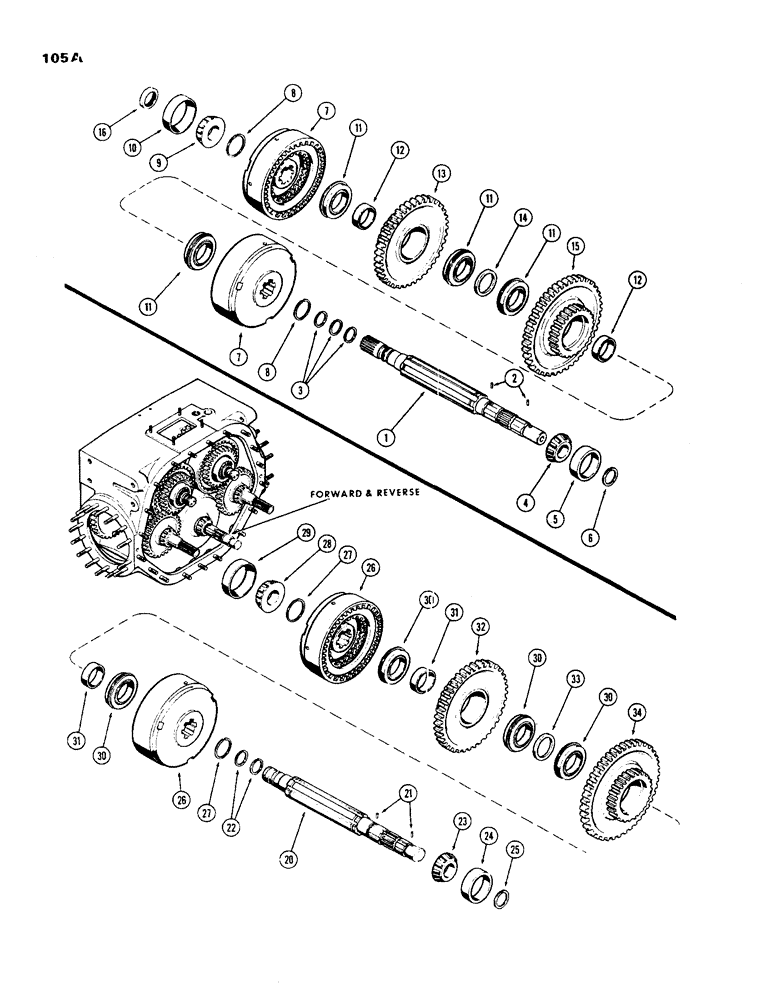

Запчасти Case 450 (105A) - FORWARD-REVERSE CLUTCH AND P.T.O. SHAFT, WITH CONSTANT RUNNING P.T.O. (03) - TRANSMISSION

1

A54108

SHAFT

ASSY. - forward-reverse clutch & P.T.O.

1шт.

2

138-68

LOCK PIN,5/32" x 7/16", Slotted

PIN, 5/32" x 7/16", Slotted

2шт.

3

A54110

SEAL

RING - seal, clutch shaft oil collector

3шт.

4

A30076

ROLLER BEARING,1.625" ID x 0.963"

CONE - bearing, clutch shaft front (1-5/8" I.D.)

1шт.

5

G15202

CUP

- bearing, clutch shaft front (3" O.D.)

1шт.

6

R20786

RING

- snap, front bearing

1шт.

7

A50411

CLUTCH

ASSY. - forward-reverse (See Figure 109A)

2шт.

8

A50046

RING

- snap, clutch retaining

2шт.

9

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE - bearing, clutch shaft rear (1-37/64" I.D.)

1шт.

10

A27138

BEARING CUP,85 mm OD x 17.462 mm

CUP - bearing, clutch shaft rear (3-11/32" O.D.)

1шт.

11

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSY. - clutch

4шт.

12

A50293

SPACER

- clutch bearings

2шт.

13

A50506

GEAR

- drive, forward clutch (29 & 51T)

1шт.

14

A50034

SPACER

- drive gears

1шт.

15

A50505

GEAR WHEEL

GEAR - drive, reverse clutch (29 & 56T)

1шт.

16

A54107

OIL SEAL,38.1mm ID x 8mm Thk

- oil, P.T.O. shaft

1шт.

20

A50519

SHAFT

ASSY. - forward-reverse clutch, with no constant running P.T.O.

1шт.

21

138-68

LOCK PIN,5/32" x 7/16", Slotted

PIN, , with no constant running P.T.O. 5/32" x 7/16", Slotted

2шт.

22

A50039

SEAL

RING - seal, oil collector, with no constant running P.T.O.

2шт.

23

A30076

ROLLER BEARING,1.625" ID x 0.963"

CONE - bearing, frwd.rev. front (1-5/8" I.D), with no constant running P.T.O.

1шт.

24

G15202

CUP

- bearing, frwd.-rev. front (3" O.D.), with no constant running P.T.O.

1шт.

25

R20786

RING

- snap, front bearing retaining, with no constant running P.T.O.

1шт.

25

A50289

CLUTCH ASSY. - frwd. & rev. (w/cast iron piston) (Repairs figure 109A) (Order A50411), with no constant running P.T.O.

2шт.

26

A50411

CLUTCH

ASSY. - frwd. & rev. (w/aluminum piston) (Repairs figure 109A), with no constant running P.T.O.

2шт.

27

A50046

RING

- snap, frwd.-rev. clutch retaining, with no constant running P.T.O.

2шт.

28

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE - bearing, rear (1-37/64" I.D.), with no constant running P.T.O.

1шт.

29

A27138

BEARING CUP,85 mm OD x 17.462 mm

CUP - bearing, rear (3-11/32" O.D.), with no constant running P.T.O.

1шт.

30

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSY. - ball, frwd.-rev. clutch, with no constant running P.T.O.

4шт.

31

A50293

SPACER

- clutch bearing, with no constant running P.T.O.

2шт.

32

A50506

GEAR

- reverse clutch (29 & 51T), with no constant running P.T.O.

1шт.

33

A50034

SPACER

- bearing & gears, with no constant running P.T.O.

1шт.

34

A50505

GEAR WHEEL

GEAR - driver, reverse clutch (29 & 56T), with no constant running P.T.O.

1шт.
