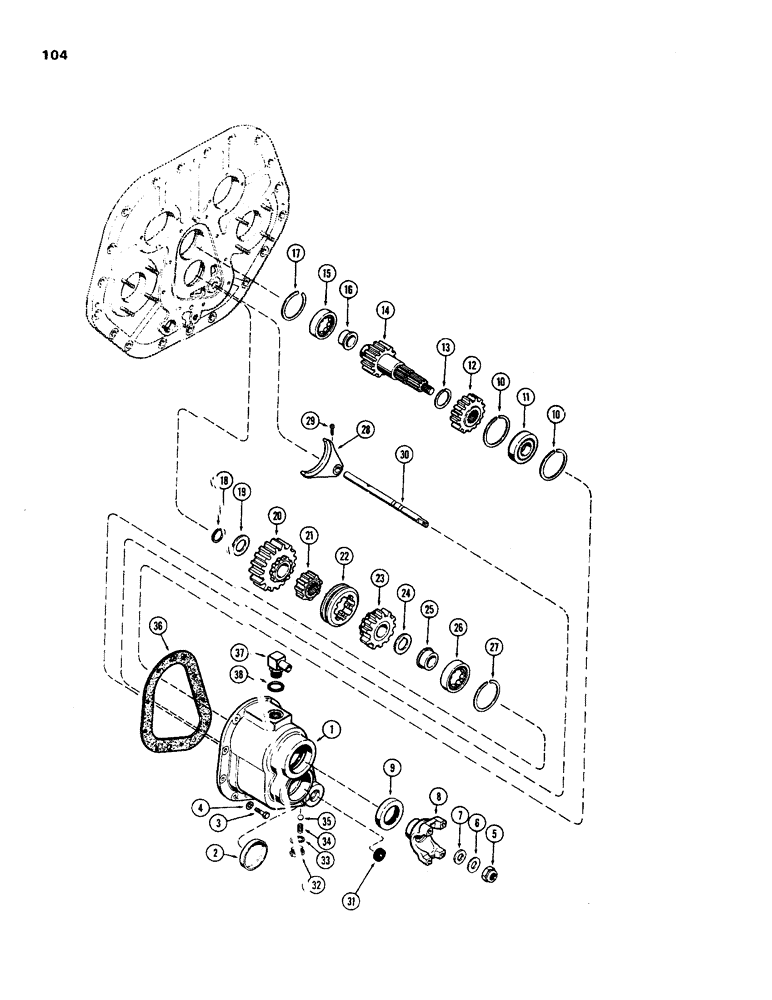

Запчасти Case 450 (104) - MECHANICAL RANGE SHIFT (03) - TRANSMISSION

1

NSS

NOT SOLD SEPARAT

HOUSING - two speed shift (Order A50467, figure 102)

1шт.

2

A50268

PLUG

- housing (3-5/32" cup type)

1шт.

3

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - ferry cap (3/8 x 1-1/4" N.C., 12 pt. hd.)

9шт.

4

A22317

WASHER

- (11/16 x 25/64 x 18 Ga. copper)

9шт.

5

131-37

LOCK NUT,3/4"-16

NUT - lock, 3/4" NF hex

1шт.

6

32601

WASHER

- yoke nut

1шт.

7

34395

SEALING WASHER

WASHER - yoke nut

1шт.

8

A50192

FLANGE

YOKE - universal

1шт.

9

A50420

SEAL

- oil (2-1/8 x 3-5/32 x 25/64")

1шт.

10

R13804

RING

- snap, brg. retaining

2шт.

11

A26537

BALL BEARING,34.99mm ID x 80mm OD x 21mm W

BEARING - ball, front

1шт.

12

A50253

GEAR - driver, high (25 teeth)

1шт.

13

R15364

SNAP RING,#152, 1.527", Ext

RING - snap, gear retaining

1шт.

14

A50365

SHAFT

- input

1шт.

15

A50255

BEARING, ROLLER, CYL,2.8359" OD x 0.748"

BEARING ASSY. - outer ring & rollers

1шт.

16

A50077

BEARING CONE,1.1811" ID x 0.748"

BEARING - single rib inner ring

1шт.

17

A27417

RING

- snap, rear bearing

1шт.

18

A26946

RING

- snap, washer retaining

1шт.

19

A50071

WASHER

- thrust

1шт.

20

A50366

GEAR

- driven, low (20 & 39 teeth)

1шт.

21

A50073

X

COLLAR - sliding

1шт.

22

A50074

SLEEVE

HUB - shifter

1шт.

23

A50260

X

GEAR - driven, high (20 & 32 teeth)

1шт.

24

A50333

WASHER

- thrust

1шт.

25

A50332

BEARING CONE,1.25" ID x 0.8268"

BEARING - single rib inner ring

1шт.

26

A50258

ROLLER BEARING,3.1510" OD x 0.8268"

BEARING ASSY. - outer ring and rollers

1шт.

27

R13804

RING

- snap, bearing retaining

1шт.

28

A50080

SHAFT

FORK - shifter

1шт.

29

A7044

SET SCREW,3/8" - 16 x 7/8"

- shifter fork

1шт.

30

A50079

SHAFT

- shifter

1шт.

31

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

- oil, shifter shaft (3/4 x 1-1/4 x 1/4")

1шт.

32

A50094

PLUG,Screw, 5/8" - 18 x 0.377"

SCREW - plug, selector detent

1шт.

33

A50093

SEALING WASHER

- plug

1шт.

34

A50092

SPRING

- mesh lock

1шт.

35

211-13

BALL,1/2" Dia

- mesh lock 1/2" Dia

1шт.

36

A50269

GASKET

- range housing

1шт.

37

A50357

ELBOW

- 90 degree, hydraulic, Includes: Ref. 38

1шт.

38

A50357

ELBOW

"O" RING - elbow

1шт.
