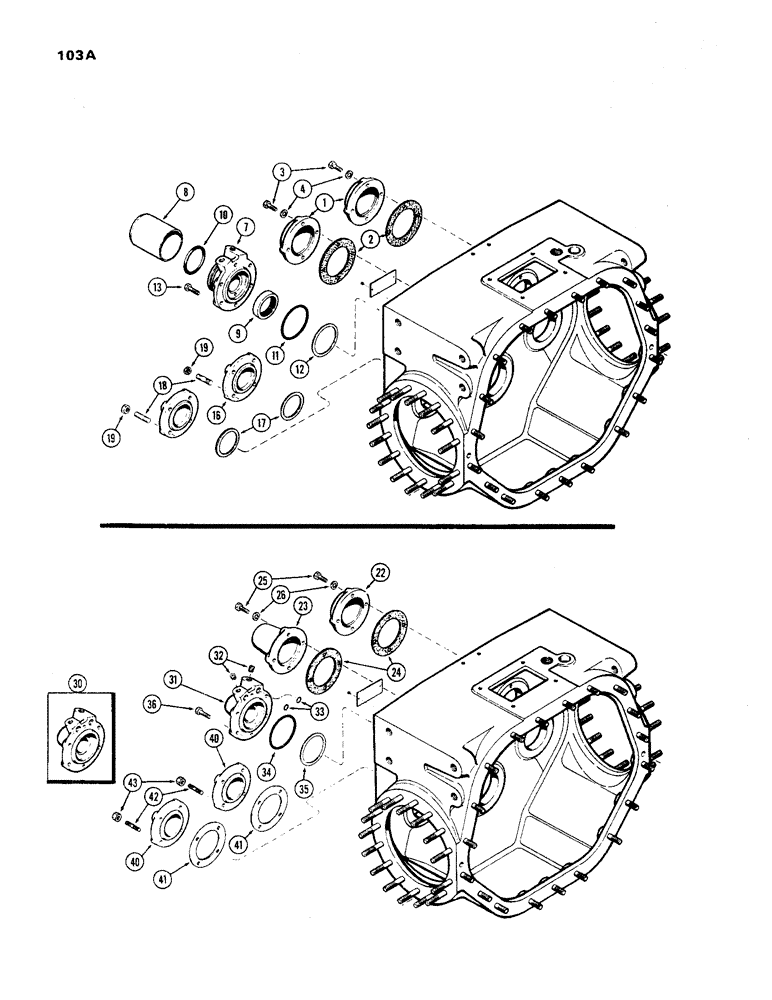

Запчасти Case 450 (103A) - TRANSMISSION HOUSING AND REAR COVERS (03) - TRANSMISSION

1

A50060

COVER

- Hi-Lo clutch shaft

2шт.

2

A50058

GASKET

- rear cover

2шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

8шт.

4

A22317

WASHER

- copper (25/64 x 11/16 x 3/64")

8шт.

7

A50578

COVER

- forward-reverse and P.T.O. shaft (Use w/1/4 " P.T., tube adapter)

1шт.

7

A54106

X

COVER - forward-reverse and P.T.O. shaft (Order A50578 & 218-443)

1шт.

8

A54111

COVER

- P.T.O. shaft

1шт.

9

A54107

OIL SEAL,38.1mm ID x 8mm Thk

- oil. P.T.O. shaft

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - (2-1/2 x 2-3/4 x 1/8") (use w/winch)

1шт.

11

A50055

SEALING RING

RING - cover seal (3-1/4 x 3-7/16 x 3/32" rubber)

1шт.

12

A50053

SHIM,.003" Thk

Cover .003" Thk

1шт.

12

40590

SHIM

- cover (.005")

1шт.

12

40591

SHIM

- cover (.010")

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

16

A50271

COVER

- pinion shafts

2шт.

17

A50348

SHIM,.003" Thk

Cover .003" Thk

1шт.

17

A50372

X

SHIM - cover (.005")

1шт.

17

CASA50347

SHIM

- cover (.010")

1шт.

18

A50019

NO LONGER SERVICED

STUD - cover (3/8" N.C. x 1-1/2")

8шт.

19

25-106

NUT,3/8"-16, G5

- cover studs (3/8" N.C. hex.)

8шт.

22

A50060

COVER

- Hi-Lo clutch shaft, L.H.

1шт.

23

A50059

COVER

- Hi-Lo clutch shaft, R.H.

1шт.

24

A50058

GASKET

- cover

3шт.

25

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover (3/8 x 1-1/2 " N.C. hex.)

8шт.

26

A22317

WASHER

- copper (25/64 x 11/16 x 3/64")

8шт.

30

A50469

COVER

- rear, oil inlet (1st used trans. SN 8661238)

1шт.

31

A50054

COVER

- rear, oil inlet (Used prior to trans. SN2661238)

1шт.

32

221-1840

PLUG

- 1/8" P.T. sckt. hd. (Used prior to trans. SN 8661238)

2шт.

33

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING- (7/16 x 5/8 x 3/32) (Used prior to trans. SN 2661238

2шт.

34

A50055

SEALING RING

RING - oil inlet cover seal (3-1/4 x 3-7/16 x 3/32")

1шт.

35

A50053

SHIM,.003" Thk

Inlet cover .003" Thk

1шт.

35

40590

SHIM

- inlet cover (.005")

1шт.

35

40591

SHIM

- inlet cover (.010")

1шт.

36

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

5шт.

40

A50271

COVER

- pinion shafts

2шт.

41

A50348

SHIM,.003" Thk

Rear cover .003" Thk

1шт.

41

A50272

SHIM,.005" Thk

Rear cover .005" Thk

1шт.

41

CASA50347

SHIM

- rear cover (.010")

1шт.

42

A50019

NO LONGER SERVICED

STUD - cover (3/8" N.C. x 1-1/2")

8шт.

43

25-106

NUT,3/8"-16, G5

- (3/8" N.C., hex.)

8шт.
