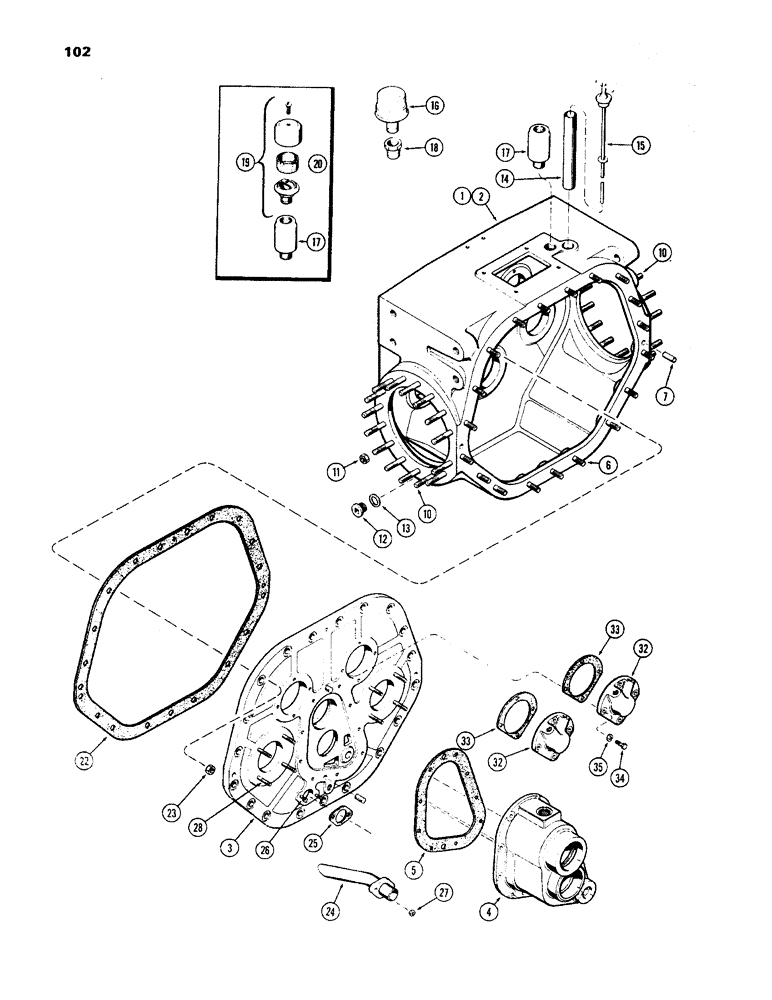

Запчасти Case 450 (102) - TRANSMISSION HOUSING AND FRONT COVERS (03) - TRANSMISSION

A50180

TRANSMISSION ASSY. - (w/o constant running P.T.O.) (Loader Models) (Order A54115), Includes: Ref. 1 - 35

1шт.

Transmission assy. includes all parts listed on figures 102 - 115C.

1шт.

A54115

TRANSMISSION ASSY. - (w/constant running P.T.O.) (Loader Models), Includes: Ref. 1 - 35

1шт.

Transmission assy. includes all parts listed on figures 102 - 115C.

1шт.

A50245

TRANSMISSION ASSY. - (w/o running P.T.O.) (Dozer Models) (Order A54116), Includes: Ref. 1 - 35

1шт.

Transmission assy. includes all parts listed on figures 102 - 115C.

1шт.

A54116

NO LONGER SERVICED

TRANSMISSION ASSY. - (w/constant running P.T.O.) (Dozer Models), Includes: Ref. 1 - 35

1шт.

Transmission assy. includes all parts listed on figures 102 - 115C.

1шт.

1

A50280

HOUSING

ASSY. - transmission (Used prior to trans. SN 2661238) (Order A50467 and A50470, A50471, 218-447, 218-5057 and 218-5105 from figure 114), Includes: Ref. 2 - 7

1шт.

1

A50467

HOUSING

ASSY. - transmission, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - transmission (Order A54067)

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - frt, trans. (Order A50467)

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - range gear (See Figure 104)

1шт.

5

A50269

GASKET

- range housing

1шт.

6

A50249

STUD

- cover to hsg. (9/16" N.C. x 2-3/8")

19шт.

7

A50247

DOWEL

PIN - cover to hsg. (1/2 x 1-1/4" w/drilled end)

4шт.

10

A50021

STUD

- mtg., final drive

28шт.

11

131-194

LOCK NUT,1/2"-13, GC

NUT - lock (1/2" N.C. hex.)

28шт.

12

R14777

PLUG

- drain, housing

1шт.

13

A58613

SEALING WASHER

WASHER - drain plug

1шт.

14

A50018

TUBE

- oil level gauge

1шт.

15

A50225

DIPSTICK

GAUGE ASSY. - dipstick, trans. oil level

1шт.

16

A27173

BREATHER

ASSY. - (1st used trans. SN 2625809)

1шт.

17

A50116

BAFFLE

- breather

1шт.

18

221-58

BUSHING,Hex, 3/4" x 1/4" NPT

- reducer, 3/4" to 1/4" (used w/A27173)

1шт.

19

A9238

BREATHER

ASSY. - (Used prior to trans. SN 2625809), Includes: Ref. 20

1шт.

20

A10059

FILTER, ELEMENT

ELEMENT - breather

1шт.

22

A50246

GASKET

- frt., Serial Range: cover-housing

1шт.

23

232-4119

LOCK NUT,9/16"-12, GC

NUT - lock (9/16" N.C., hex.)

19шт.

24

A50110

TUBE

SNORKEL - transmission

1шт.

25

A50109

GASKET

- snorkel

1шт.

26

A50362

STUD

- mtg., snorkel (3/8" N.C. x 1-3/8")

2шт.

27

25-106

NUT,3/8"-16, G5

- lock, 3/8 " N.C.

2шт.

28

A50241

STUD

- brake plate mounting (1/2" N.C. x 2-1/8")

8шт.

32

A50057

COVER

- inlet cover, front

2шт.

33

A50056

GASKET

- inlet cover, front

2шт.

34

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

8шт.

35

A22317

WASHER

- (25/64 x 11/16 x 18 Ga. copper)

16шт.
