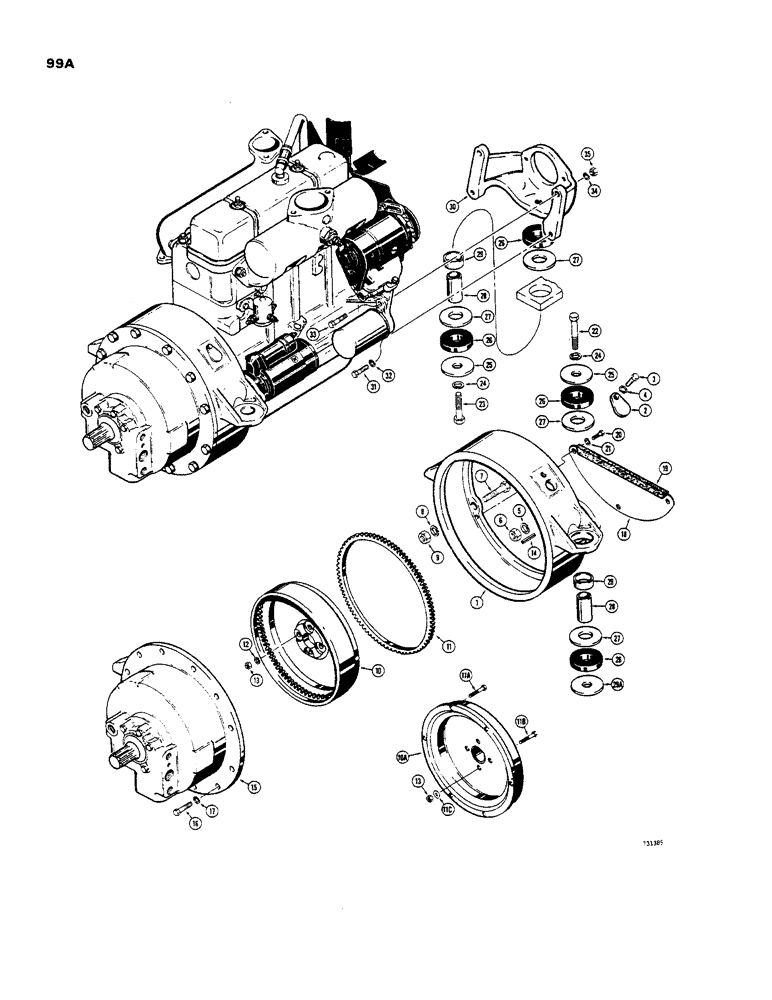

Запчасти Case 450 (099A) - ENGINE, FLYWHEEL AND TORQUE CONVERTER MOUNTING (03) - TRANSMISSION

1

A36596

HOUSING

Flywheel

1шт.

2

A29068

COVER

Timing hole

2шт.

3

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

4

92-4

LOCK WASHER,1/4"

2шт.

5

92-10

LOCK WASHER,5/8"

2шт.

6

25-1110

NUT,5/8"-18, G5

2шт.

7

A30129

BOLT

Ground body

2шт.

8

92-10

LOCK WASHER,5/8"

2шт.

9

25-1110

NUT,5/8"-18, G5

2шт.

A36594

FLYWHEEL

ASSEMBLY - Used with D35012 and D45565 converters, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

FLYWHEEL

1шт.

11

G11710

GEAR

RING - flywheel

1шт.

A39123

FLYWHEEL

ASSEMBLY - used with D52422 converter, Includes: Ref. 10A and 11

1шт.

10a

NSS

NOT SOLD SEPARAT

FLYWHEEL

1шт.

11

G11710

GEAR

RING - flywheel

1шт.

11a

28-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 8

(A39123 flywheel only)

6шт.

11b

121-300

LOCK BOLT,Lock Place, Hex, 7/16" - 20 x 1 1/8", Gr 8

(A39123 flywheel only)

4шт.

11c

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

Special (A39123 flywheel only)

4шт.

12

92-7

LOCK WASHER,7/16"

4шт.

13

25-117

NUT,7/16"-20, G5

4шт.

14

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

1шт.

15

D35012

X

TORQUE CONVERTER - Twin Disc 6-F-1108 Spec. N98328 (Used D52422 converter, items 10A, 11A, 11B, and 11C for service)

1шт.

15

REF

INSTRUCTION

TORQUE CONVERTER - see Figures 94 thru 97A for converters

1шт.

16

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

12шт.

17

92-6

LOCK WASHER,3/8"

12шт.

18

D36893

COVER

Flywheel housing, Includes: Ref. 19

1шт.

19

D36892

SEAL ASSY.

Dust

1шт.

20

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

21

92-4

LOCK WASHER,1/4"

3шт.

22

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

(Torque converter)

2шт.

23

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

(Engine)

1шт.

24

92-10

LOCK WASHER,5/8"

3шт.

25

CASD35009

WASHER,16.67mm ID x 63.5mm OD

Special (5/8)")

3шт.

26

R31034

WASHER,22.23mm ID x 63.5mm OD x 12.7mm Thk

Special

6шт.

27

R31035

WASHER

Special

6шт.

28

R18586

SPACER

SPACER - mount

3шт.

29

D35010

BUSHING,22.23mm ID x 41.27mm OD x 19.05mm L

Rubber mount

3шт.

29a

D35232

SPACER

SPACER - torque converter mounting

2шт.

30

D35017

SUPPORT

Engine, front

1шт.

31

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

32

92-10

LOCK WASHER,5/8"

2шт.

33

G49039

BOLT

Ground body (5/8" - 18 NF x 2-1/2"), If used

2шт.

33

R33936

BOLT

Ground body (5/8" - 11 NC x 3"), If used

2шт.

34

92-10

LOCK WASHER,5/8"

2шт.

35

25-1110

NUT,5/8"-18, G5

2шт.

35

25-1010

NUT,5/8"-11, G5

2шт.
