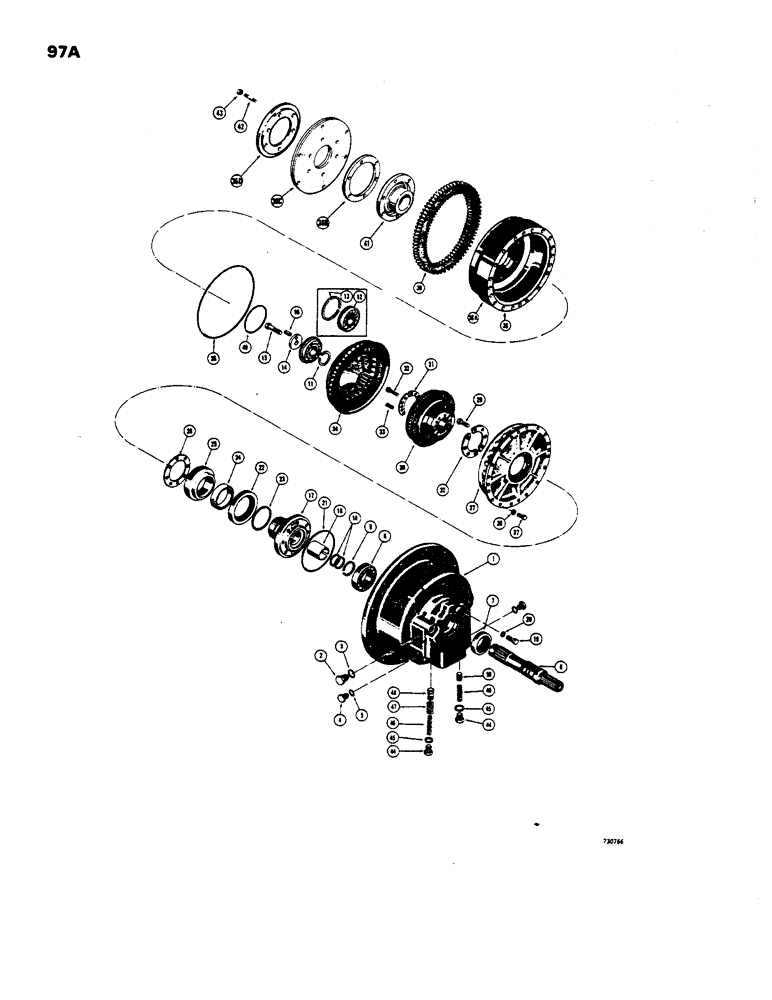

Запчасти Case 450 (097A) - D45565 AND D52422 TORQUE CONVERTERS (03) - TRANSMISSION

D45565

CONVERTER

TORQUE CONVERTER - Twin Disc X-209547-E spec. N60623 (Use D52422 converter, A39123 flywheel, (6) 28-520 bolts and (4) 121-300 bolts and (4) A30013 washers - see Figure 99A), Includes: Ref. 1 - 50

1шт.

D52422

CONVERTER

TORQUE CONVERTER - Twin Disc X-209547-F Spec. N61896, Includes: Ref. 1 - 50

1шт.

1

D37028

HOUSING

- converter

1шт.

2

214389

PLUG,3/4" - 16 ORB

Converter housing (Upper), Includes Ref. 3 Hex Hd, 3/4"-16 ORB

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

129998

PLUG,1/2" - 20 ORB

Converter housing (Lower), Incl. Ref. 5 Hex Hd, 1/2"-20 ORB

2шт.

5

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, seal

1шт.

6

D37026

SHAFT

- output

1шт.

7

D51517

SEAL,50.8mm ID x 76.2mm OD x 13.11mm Thk

- oil, output shaft

1шт.

8

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, output shaft (Rear)

1шт.

9

A27085

RING

SNAP RING - bearing retaining

1шт.

10

D37021

RING

- piston

2шт.

11

A27085

RING

SNAP RING - shaft retaining

1шт.

12

G13606

BALL BEARING

BEARING - ball, output shaft (Front), Includes: Ref. 13

1шт.

13

NSS

NOT SOLD SEPARAT

SNAP RING

1шт.

14

D37015

PLATE

- shaft retaining

1шт.

15

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2" - 20 NF x 1-3/4"

1шт.

16

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

17

D39288

GUIDE

CARRIER GUIDE AND SLEEVE ASSEMBLY, Includes: Ref. 18

1шт.

18

D37027

SLEEVE

BUSHING - split

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

20

D32117

COPPER WASHER

WASHER, COPPER, Special

1шт.

21

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

SEAL - "O"ring, carrier guide

1шт.

22

D37024

SEAL

- oil, carrier guide

1шт.

23

A36273

RING

- piston

1шт.

24

A36272

BUSHING,76.44mm ID x 81.08mm OD x 19.05mm L

BUSHING - bronze, steel backed

1шт.

25

D37009

CARRIER

- bushing

1шт.

26

NLS

NO LONGER SERVICED

- impeller hub

1шт.

27

D36825

IMPELLER

1шт.

28

D37017

PLATE

- clamp

1шт.

29

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

30

D36835

WHEEL

GUIDE - converter

1шт.

31

A36278

PLATE

- clamp

2шт.

32

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW - ferry (5/16" - 18 NC x 3/4")

6шт.

33

138-224

LOCK PIN,5/16" x 3/4", Slotted

PIN, 5/16" x 3/4", Slotted

4шт.

34

D36829

TURBINE

1шт.

35

D37020

RING

GASKET - ring

1шт.

36

D47665

HOUSING

- rotating, D45565 converter (Used with D52317 ring only)

1шт.

36a

D52481

HOUSING

- rotating, D52422 converter

1шт.

36b

D52482

SHIM,.020" Thk

Flex plate, D52422 converter .020" Thk

3шт.

36c

D52483

PLATE ASSY.

PLATE - flex. D52422 converter

1шт.

36d

D52484

WASHER

- special, support (D52422 converter)

1шт.

37

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

18шт.

38

A40877

WASHER

- special

18шт.

39

D52317

RING, FLYWHEEL

GEAR - ring, driving (D45565 converter)

1шт.

40

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, flywheel pilot

1шт.

41

D37016

FLYWHEEL

PILOT - flywheel

1шт.

42

D32067

STUD

- flywheel pilot retaining

6шт.

43

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

6шт.

44

D32013

PLUG

- relief valve

2шт.

45

D32119

WASHER,25.4mm ID x 34.8mm OD x 1.52mm Thk

- copper

2шт.

46

D32022

SPRING

- inner

1шт.

47

D32023

SPRING

- outer

1шт.

48

D37018

PISTON

- relief valve

1шт.

49

D37012

SPRING

- relief valve

1шт.

50

D32014

PISTON

- relief valve

1шт.
