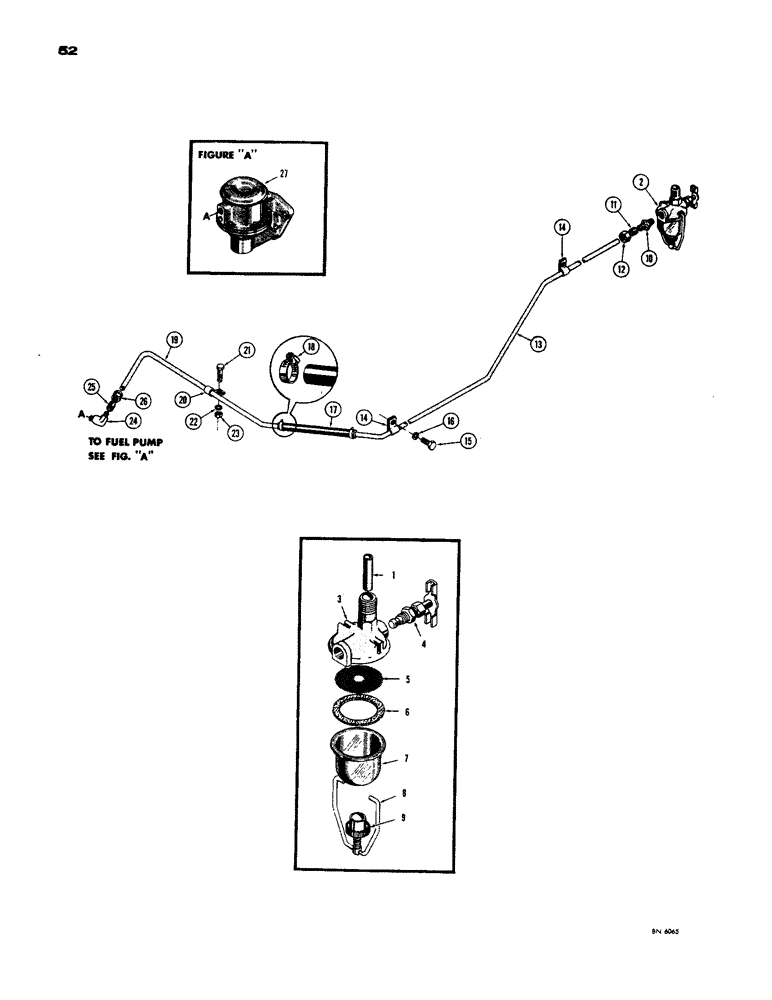

Запчасти Case 450 (052) - FUEL LINES - GAS (02) - FUEL SYSTEM

33487

STRAINER ELEMENT

FUEL STRAINER ASSEMBLY - complete, Includes: Ref. 1 - 9

1шт.

1

NLS

NO LONGER SERVICED

TUBE - inlet

1шт.

2

A30049

STRAINER ELEMENT

FUEL STRAINER, Includes: Ref. 3 - 9

1шт.

3

41932

COVER

- strainer

1шт.

4

A11200

COCK

VALVE - shut-off

1шт.

5

A11211

FILTER SCREEN

SCREEN - strainer

1шт.

6

A11208

GASKET

- bowl

1шт.

7

41933

BOWL

1шт.

8

A11212

BAIL

- bowl

1шт.

9

A11210

ADJUSTER

NUT - cup, bail

1шт.

10

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - male, straight, Includes: Ref. 11 and 12

1шт.

11

222-103

SLEEVE,5/16" Tube

- Connector 5/16" Tube

1шт.

12

222-113

TUBE NUT,9/16"-24

NUT - connector

1шт.

13

D34994

TUBE

- fuel line, Serial Range: strainer-hose

1шт.

14

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- fuel line

2шт.

15

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

16

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

17

D34989

FUEL HOSE,0.31" ID x 9.00", SAE 30R1

0.31" ID x 9.00", SAE 30R1

1шт.

18

214-300

CLAMP

- fuel line hose

2шт.

19

D34991

TUBE - fuel line, fuel, Serial Range: pump-hose

1шт.

20

49838

CLAMP

- fuel line tube

1шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

22

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

23

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

1шт.

24

222-44

ELBOW,90 Degree, 9/16"-24 Fem x 1/8"-27 NPTF

- male, 90 Degree, Includes: Ref. 25 and 26

1шт.

25

222-103

SLEEVE,5/16" Tube

- Connector 5/16" Tube

1шт.

26

222-113

TUBE NUT,9/16"-24

NUT - connector

1шт.

27

G45778

PUMP

- fuel

1шт.
