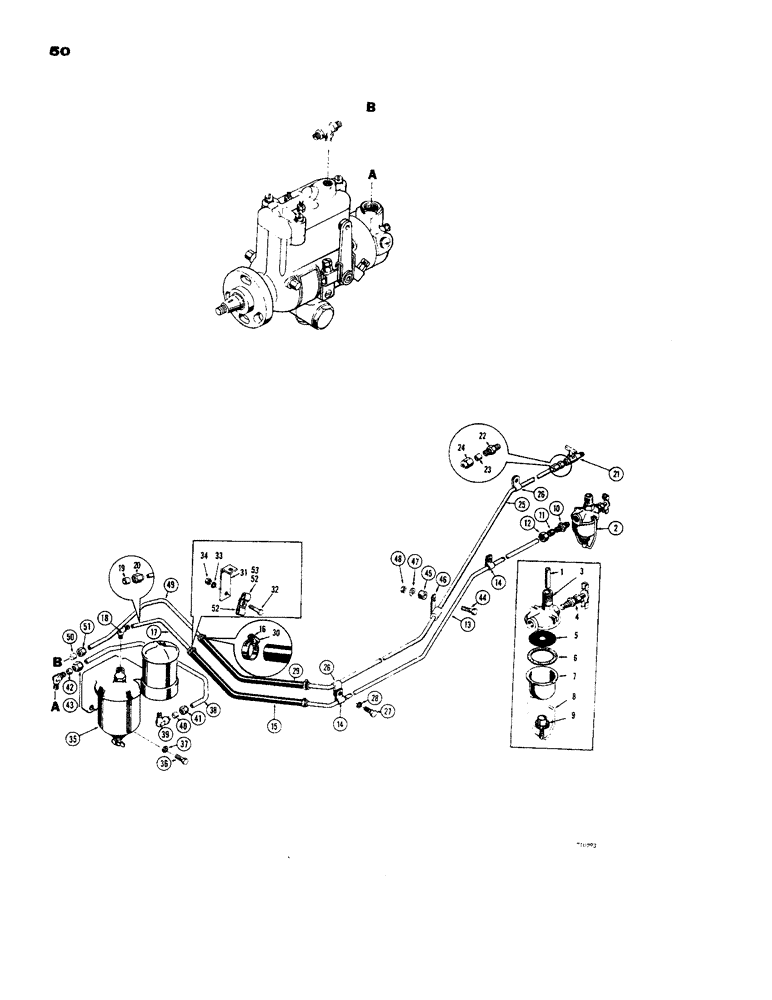

Запчасти Case 450 (050) - FUEL LINES - DIESEL (02) - FUEL SYSTEM

33487

STRAINER ELEMENT

FUEL STRAINER ASSEMBLY - complete, Includes: Ref. 1 - 9

1шт.

1

NLS

NO LONGER SERVICED

TUBE - inlet

1шт.

2

A30049

STRAINER ELEMENT

FUEL STRAINER, Includes: Ref. 3 - 9

1шт.

3

41932

COVER

- strainer

1шт.

4

A11200

COCK

VALVE - shut-off

1шт.

5

A11211

FILTER SCREEN

SCREEN - strainer

1шт.

6

A11208

GASKET

- bowl

1шт.

7

86982913

BOWL

- Metal

1шт.

7a

A11209

BOWL

- Glass, not illust.

1шт.

8

A11212

BAIL

- bowl

1шт.

9

A11210

ADJUSTER

NUT - cup, bail

1шт.

10

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - flex, male, Includes: Ref. 11 and 12

1шт.

11

222-103

SLEEVE,5/16" Tube

1шт.

12

222-113

TUBE NUT,9/16"-24

NUT

1шт.

13

D34994

TUBE

- fuel lien (Rear)

1шт.

14

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- tube

2шт.

15

D34989

FUEL HOSE,0.31" ID x 9.00", SAE 30R1

0.31" ID x 9.00", SAE 30R1

1шт.

16

214-300

CLAMP

- hose

2шт.

17

D34993

TUBE

- fuel line (Front)

1шт.

18

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- flex, male, Includes: Ref. 19 and 20

1шт.

19

222-103

SLEEVE,5/16" Tube

1шт.

20

222-113

TUBE NUT,9/16"-24

NUT

1шт.

21

217-94

SHUT-OFF VALVE

VALVE - shut-off, screw type

1шт.

22

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR - flex, male, Includes: Ref. 23 and 24

1шт.

23

222-103

SLEEVE,5/16" Tube

1шт.

24

222-113

TUBE NUT,9/16"-24

NUT

1шт.

25

D34995

TUBE

- fuel return (Rear)

1шт.

26

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- tube

2шт.

27

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

28

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

29

D34989

FUEL HOSE,0.31" ID x 9.00", SAE 30R1

Fuel Return 0.31" ID x 9.00", SAE 30R1

1шт.

30

214-300

CLAMP

- hose

2шт.

31

D34990

BRACKET

- tube support

1шт.

32

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

33

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

34

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

1шт.

35

A35735

FILTER

- fuel, dual stage (Parts list, Figure 44)

1шт.

36

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

37

92-5

LOCK WASHER,5/16"

med sect. 5/16"

3шт.

38

A36566

TUBE

- fuel line, Serial Range: filter-pump

1шт.

39

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- flex, male, Includes: Ref. 40 and 41

1шт.

40

222-104

SLEEVE,3/8" Tube

1шт.

41

222-114

NUT,5/8"-24

NUT

1шт.

42

222-104

SLEEVE,3/8" Tube

1шт.

43

222-114

NUT,5/8"-24

NUT, Includes: Ref. 44

1шт.

44

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

HHCS - 1/2" - 13 NC X 3"

1шт.

45

A27328

SPACER

- clamp

1шт.

46

49832

CLAMP

- tube

2шт.

47

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

48

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

49

D34992

TUBE - fuel return (Front), used before eng s/n 2627377

1шт.

50

221-103

FITTING

SLEEVE, used before eng s/n 2627377

1шт.

51

222-113

TUBE NUT,9/16"-24

NUT, used before eng s/n 2627377

1шт.

52

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- hose, used before eng s/n 2627377

2шт.

49

D41913

TUBE

- fuel return (Front), used eng s/n 2627377 & aft

1шт.

50

222-102

SLEEVE,1/4" Tube

Used eng S/N 2627377 & aft 1/4" Tube

1шт.

51

87017024

TUBE NUT,1/2"-24

NUT, used eng s/n 2627377 & aft

1шт.

52

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- hose, used eng s/n 2627377 & aft

1шт.

53

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- hose, used eng s/n 2627377 & aft

1шт.
