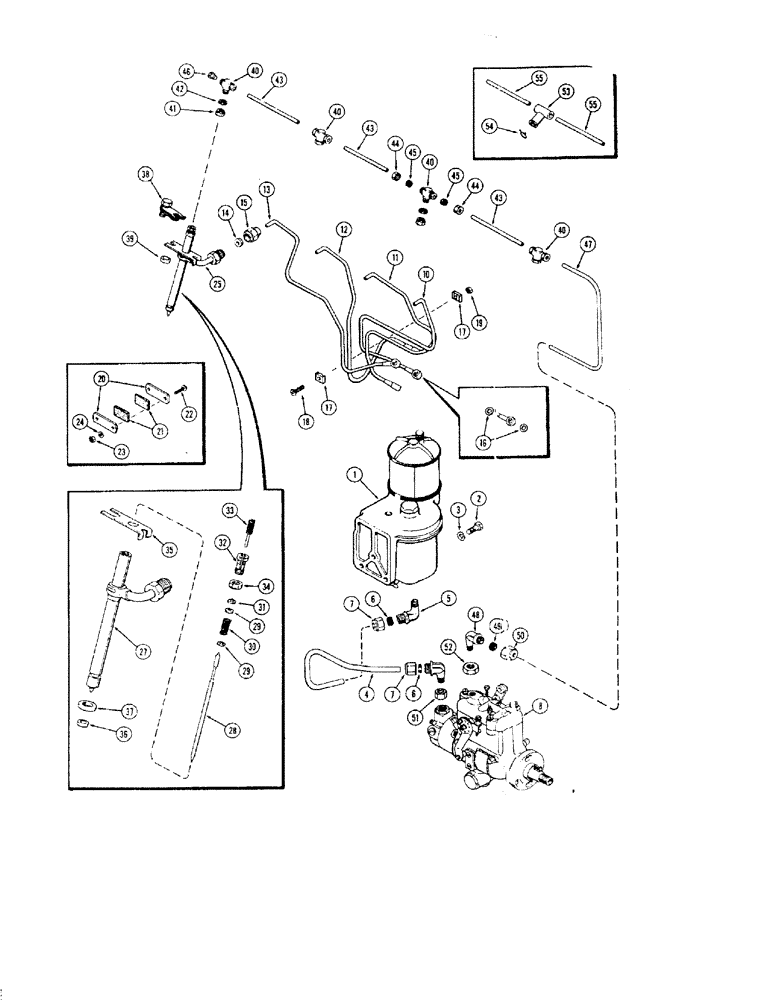

Запчасти Case 450 (042) - FUEL INJECTION SYSTEM, (188) DIESEL ENGINE, 1ST USED ENG. SER. NO. 2627377 (02) - FUEL SYSTEM

1

A35735

FILTER

FILTER ASSY - fuel (see figure 44)

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

3

92-5

LOCK WASHER,5/16"

2шт.

4

A36566

TUBE

LINE - fuel, Serial Range: filter-pump

1шт.

5

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ELBOW ASSY - 3/8" O.D. x 1/4" P.T., Includes: Ref. 6 and 7

2шт.

6

222-104

SLEEVE,3/8" Tube

SLEEVE - 3/8" Tube

1шт.

7

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

8

A35775

PUMP

PUMP - fuel injection (see figure 44)

1шт.

10

A41391

TUBE

TUBE ASSY - pump to #1 cyl., Includes: Ref. 14 - 16

1шт.

11

A41392

TUBE

TUBE ASSY - pump to #2 cyl., Includes: Ref. 14 - 16

1шт.

12

A41393

TUBE

TUBE ASSY - pump to #3 cyl., Includes: Ref. 14 - 16

1шт.

13

A41394

TUBE

TUBE ASSY - pump to #4 cyl., Includes: Ref. 14 - 16

1шт.

14

A37850

PIPE FITTING

SLEEVE - tube

1шт.

15

A37851

NUT

NUT - tube

1шт.

16

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - banjo fitting

2шт.

17

A58709

BRACKET

CLAMP - fuel injection line

4шт.

18

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

BOLT - #10 x 1" rd. hd. mach.

2шт.

19

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 flat Tinnerman

2шт.

20

A27978

CLAMP

CLAMP - injection tubes (Order A58709)

2шт.

21

A27980

CUSHION

CUSHION - tube clamp

2шт.

22

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

SCREW - clamp (#10 - 24 x 1" rd. hd.)

2шт.

23

129-7

NUT,Hex, #10 - 24

2шт.

24

92-3

LOCK WASHER,#10

2шт.

25

A37836

NOZZLE

NOZZLE ASSY - fuel injection, Includes: Ref. 27 - 37

4шт.

Whenever nozzle is removed from head the seal ref. 36 and washer ref. 37 must be replaced before nozzle is installed back in head.

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A37836)

1шт.

28

NSS

NOT SOLD SEPARAT

VALVE - nozzle (Order A37836)

1шт.

29

A41401

SEAT

SEAT - pressure spring

2шт.

30

A41444

VALVE SPRING

SPRING - pressure adjusting

1шт.

31

A41407

WASHER

WASHER - bolt type

1шт.

32

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting

1шт.

33

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting

1шт.

34

A42424

LOCK NUT

NUT - lock

1шт.

35

A41405

PLATE

PLATE - locating, nozzle

1шт.

36

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

SEAL - carbon stop

1шт.

37

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

WASHER - plain

1шт.

38

A37837

CLAMP

CLAMP ASSY - injector nozzle

4шт.

39

A37839

SPACER

SPACER - nozzle clamp

4шт.

40

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - nozzle leak-off (metal)

4шт.

41

A58961

NUT

NUT -, Serial Range: tee-nozzle

4шт.

42

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

GROMMET - rubber, Serial Range: tee-nozzle

4шт.

43

A38644

TUBE

TUBE - leak-off (3 - 7/8" lg.) (w/ metal tee)

3шт.

44

87017024

TUBE NUT,1/2"-24

NUT - leak-off tube (for 1/4" tube)

8шт.

45

222-102

SLEEVE,1/4" Tube

Leak-off tube

8шт.

46

47-47

RIVET,FH, 1/4" x 7/16"

PLUG - leak-off

1шт.

47

A38158

TUBE

TUBE -, Serial Range: leak-off-pump

1шт.

48

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ELBOW - 1/4" tube x 1/8" P.T., Includes: Ref. 49 and 50

1шт.

49

222-102

SLEEVE,1/4" Tube

1шт.

50

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

51

A38161

LOCK NUT

NUT - sealing (1/4" P.T.)

1шт.

52

A38160

LOCK NUT

NUT - sealing (1/8" P.T.)

1шт.

53

A37838

BOOT

BOOT - nozzle leak-off (nylon) (Order ref 40 - 45)

4шт.

54

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - boot, nylon

4шт.

55

A37840

TUBE

TUBE - leak-off (4 - 3/16" lg.) (see ref. 40 - 45)

3шт.
