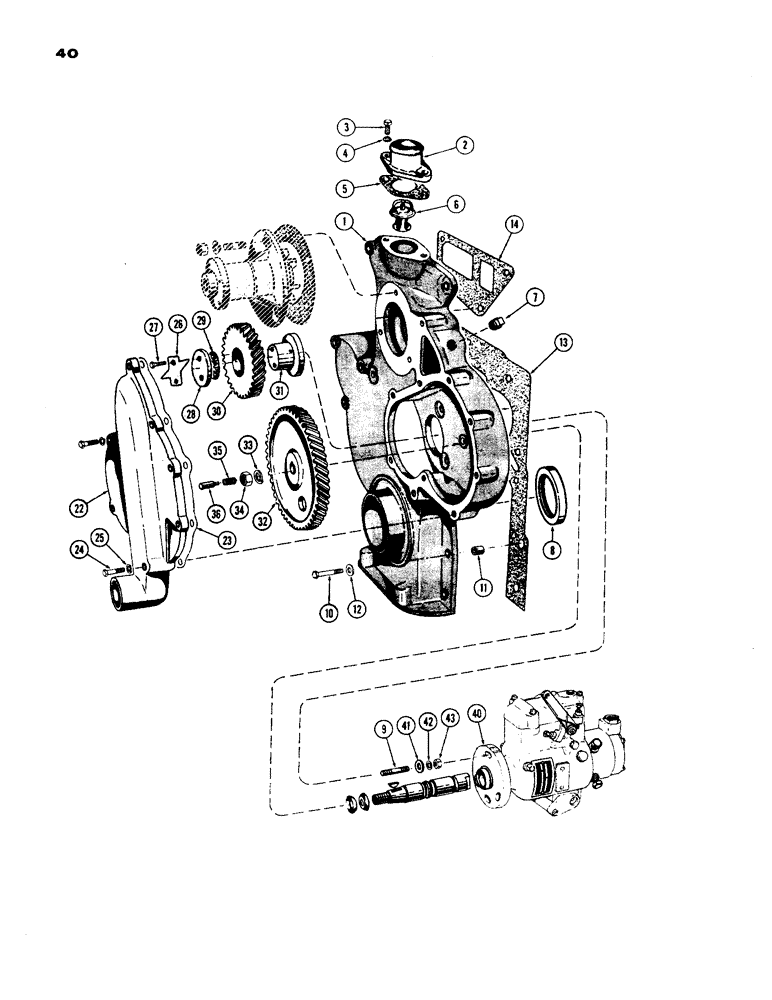

Запчасти Case 450 (040) - FUEL INJECTION PUMP AND DRIVE, (188) DIESEL ENGINE (02) - FUEL SYSTEM

1

A36823

COVER

ASSY. - injection pump drive, Includes: Ref. 2 - 9

1шт.

2

G2144

FITTING

CONNECTION - water outlet

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

G46907

GASKET

- water outlet

1шт.

6

A57641

THERMOSTAT

- (180 Degree)

1шт.

7

221-843

PLUG,Hex Soc, 3/8"-18

- (3/8" P.T. socket hd.)

1шт.

8

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft, front (2-1/8 x 3 x 1/2")

1шт.

9

G11204

STUD

- inj. pump mtg. (3/8" N.C. x 1-7/16")

3шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex)

3шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

10

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- (3/8 x 2-3/4" N.C. hex)

3шт.

10

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- (3/8 x 3" N.C. hex)

1шт.

10

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- (3/8 x 3-1/4" N.C. hex)

3шт.

11

A29442

RING

- dowel, cover to block (13/32 x 9/16 x 5/8")

2шт.

12

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64")

2шт.

13

A38228

GASKET

-, Serial Range: cover-block

1шт.

14

G46858

GASKET

-, Serial Range: cover-head

1шт.

22

G2077

COVER ASSY

COVER - drive gear

1шт.

23

G46859

GASKET

- gear cover

1шт.

24

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

25

92-6

LOCK WASHER,3/8"

9шт.

26

G11746

PLATE

- lock, idler gear

1шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

28

G11732

PLATE

- thrust, idler gear

1шт.

29

G11728

SHIM,.005" Thk

Idler gear .005" Thk

1шт.

29

G11729

SHIM,.006" Thk

Idler gear .006" Thk

1шт.

29

G11730

SHIM,.007" Thk

Idler gear .007" Thk

1шт.

29

G11731

SHIM,.009" Thk

Idler gear .009" Thk

1шт.

30

G11852

GEAR

ASSY. - idler (incl. bushing)

1шт.

31

G11726

HUB

- idler gear

1шт.

32

G2076

GEAR

- drive, injection pump

1шт.

33

192-24

LOCK WASHER,9/16"

WASHER, LOCK, , Pump drive shaft 9/16"

1шт.

34

25-159

JAM NUT,Jam, 9/16"-18, G5

- (9/16" N.F. hex. jam)

1шт.

35

G48502

SPRING

- thrust, pump drive shaft (Part of pump. See Figure 44)

1шт.

36

A44653

PLUNGER

- thrust spring (part of pump see Figure 44)

1шт.

40

A35775

PUMP

ASSY. - fuel injection (See Figure 44)

1шт.

41

A30043

WASHER

- pump mtg. stud.

3шт.

42

92-6

LOCK WASHER,3/8"

3шт.

43

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex)

3шт.
