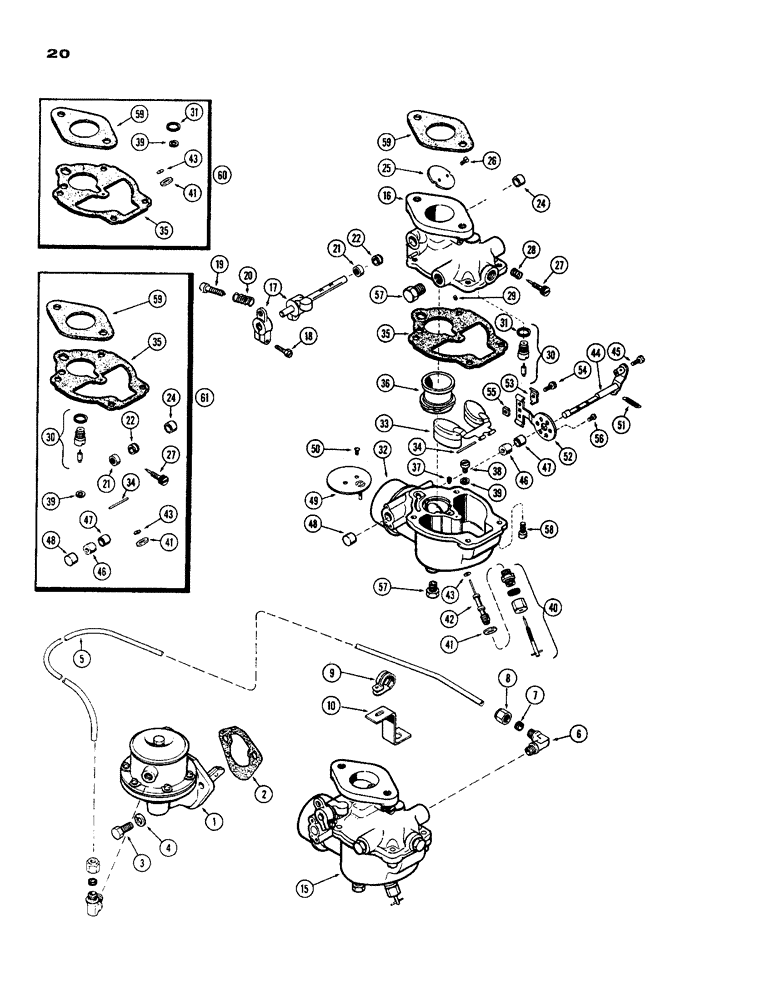

Запчасти Case 450 (020) - FUEL PUMP AND CARBURETOR, (188) SPARK IGNITION ENGINE (02) - FUEL SYSTEM

1

G45778

PUMP

ASSY. - fuel

1шт.

2

A65561

GASKET

- fuel, Serial Range: pump-block

1шт.

3

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

G46295

LINE - fuel, Serial Range: pump-carburetor

1шт.

6

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

ASSY. - fuel line, Includes: Ref. 7 and 8

2шт.

7

222-653

SLEEVE,5/16" Tube, Comp

(For 5/16" O.D. tube)

1шт.

8

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT (For 5/16" O.D. tube)

1шт.

9

G11359

CLAMP - fuel line

1шт.

10

G11364

BRACKET - fuel line clamp

1шт.

15

A36170

CARBURETOR ASSY. - (Order A37175 figure 19A) (check Carburetor on figure 19 before ordering parts), Includes: Ref. 16 - 58

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - throttle (Order A36170)

1шт.

17

A25105

SHAFT

LEVER & SHAFT ASSY. - throttle, Includes: Ref. 18 - 20

1шт.

18

B51584

SCREW - throttle lever clamp

1шт.

19

A25106

SCREW

- throttle stop

1шт.

20

A25107

SPRING - stop screw

1шт.

21

B51416

RETAINER

- seal, throttle shaft

1шт.

Part of Repair Kit, P/N B51570

1шт.

22

B51528

SEAL

- throttle shaft

1шт.

Part of Repair Kit, P/N B51570

1шт.

24

B51438

PLUG

- throttle shaft hole

1шт.

Part of Repair Kit, P/N B51570

1шт.

25

B51211

PLATE

- throttle disc.

1шт.

26

B51638

SCREW - throttle disc.

2шт.

27

B51265

HOSE

NEEDLE - idle adjusting

1шт.

Part of Repair Kit, P/N B51570

1шт.

28

B51404

SPRING

- idle adj. needle

1шт.

29

B51306

JET

- idle

1шт.

30

B51343

HYDRAULIC VALVE

VALVE & SEAT ASSY. - fuel, Includes: Ref. 31

1шт.

Part of Repair Kit, P/N B51570

1шт.

31

B51618

WASHER

fuel valve seat

1шт.

Part of Carburetor Gasket Kit, P/N B51496

1шт.

32

B51181

BOWL - fuel

1шт.

33

B51359

FLOAT

- fuel

1шт.

34

B51433

AXLE

- float pivot

1шт.

Part of Repair Kit, P/N B51570

1шт.

35

B51471

GASKET

, Serial Range: bowl-body

1шт.

Part of Carburetor Gasket Kit, P/N B51496

1шт.

36

B51196

VENTURI

1шт.

37

B51338

TUBE

JET - well vent

1шт.

38

B51323

JET

- main

1шт.

39

B51610

WASHER

main jet

1шт.

Part of Carburetor Gasket Kit, P/N B51496

1шт.

40

B51330

ADJUSTER

JET ASSY. - main adjustment

1шт.

41

B51618

WASHER

main jet adj.

1шт.

Part of Carburetor Gasket Kit, P/N B51496

1шт.

42

B51289

JET - discharge

1шт.

43

B51619

WASHER

discharge jet

1шт.

Part of Carburetor Gasket Kit, P/N B51496

1шт.

44

B51385

SHAFT & LEVER ASSY. - choke, Includes: Ref. 45

1шт.

45

B51579

SCREW - swivel, choke cable

1шт.

46

B51439

RETAINER

WASHER - packing, choke shaft

1шт.

Part of Repair Kit, P/N B51570

1шт.

47

B51439

RETAINER

- packing washer

1шт.

Part of Repair Kit, P/N B51570

1шт.

48

B51509

PLUG

- choke shaft hole

1шт.

Part of Repair Kit, P/N B51570

1шт.

49

B51365

PLATE

ASSY. - choke disc.

1шт.

50

B51388

SCREW - choke disc.

2шт.

51

B51412

SPRING

- return, choke lever

1шт.

52

B51400

SUPPORT

BRACKET ASSY. - choke cable, Includes: Ref. 53 - 55

1шт.

53

B51403

CLIP

- choke cable

1шт.

54

B51580

SCREW

-, Serial Range: clip-bracket

1шт.

55

129-76

SQUARE NUT,#8 - 36

- clip screw, #8 sq.

1шт.

56

B51458

SCREW,#8 - 32 x 0.37"

-, Serial Range: bracket-bowl

2шт.

57

B51541

PLUG

- bowl & body

3шт.

58

B51635

SCREW,5/8" x 0.335"

BOLT -, Serial Range: bowl-body

4шт.

59

G46826

GASKET

-, Serial Range: carburetor-manifold

1шт.

Part of Repair Kit, P/N B51570

1шт.

60

B51496

GASKET

KIT carburetor, Includes: Ref. 31, 35, 39, 41 and 43

1шт.

Part of Repair Kit, P/N B51570

1шт.

61

B51570

REPAIR KIT, Includes: Ref. 21 - 24, 27, 30, 34, 46 - 48, 59 and 60

1шт.
