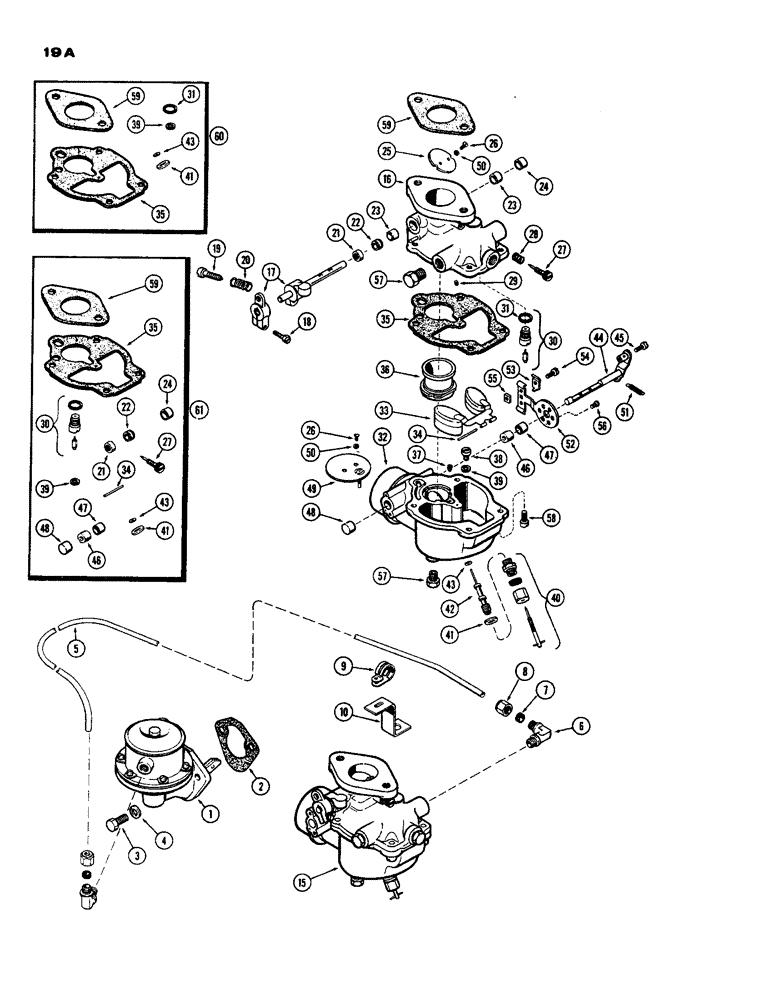

Запчасти Case 450 (019A) - FUEL PUMP AND CARBURETOR, (188) SPARK IGNITION ENGINE (02) - FUEL SYSTEM

1

G45778

PUMP

ASSY. - fuel

1шт.

2

A65561

GASKET

-, Serial Range: pump-block

1шт.

3

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Pump Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

G46295

LINE - fuel, Serial Range: pump-carb.

1шт.

6

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

ASSY. - fuel line (90 degree), Includes: Ref. 7 and 8

2шт.

7

222-653

SLEEVE,5/16" Tube, Comp

(For 5/16" O.D. tube)

1шт.

8

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - (For 5/16" O.D. tube)

1шт.

9

G11359

CLAMP - fuel line

1шт.

10

G11364

BRACKET - fuel line clamp

1шт.

15

A37175

CARBURETOR ASSY. - (Zenith #13109) (w/aluminum body) (check carburetor on figure 20 before ordering parts), Includes: Ref. 16 - 58

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - throttle (Order A37175), Includes: Ref. 18 - 20

1шт.

17

A25105

SHAFT

ASSY. - throttle, w/lever

1шт.

18

B51584

SCREW - throttle lever clamp

1шт.

19

A25106

SCREW

- throttle stop

1шт.

20

A25107

SPRING - throttle stop screw

1шт.

21

B59360

RETAINER

- throttle shaft seal

1шт.

Part of P/N A40940 Repair Kit

1шт.

22

B51528

SEAL

- throttle shaft

1шт.

Part of P/N A40940 Repair Kit

1шт.

23

A40609

BUSHING

- throttle shaft

2шт.

24

A40612

PLUG

- throttle shaft hole

1шт.

Part of P/N A40940 Repair Kit

1шт.

25

B51211

PLATE

- throttle disc.

1шт.

26

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

- throttle & choke plate, #6-32 x 1/4" rd. hd.

4шт.

27

B51265

HOSE

NEEDLE - idle adjusting

1шт.

Part of P/N A40940 Repair Kit

1шт.

28

B51404

SPRING

- idle adjusting needle

1шт.

29

B51306

JET

- idle

1шт.

30

A40938

VALVE

ASSY. - fuel, Includes: Ref. 31

1шт.

Part of P/N A40940 Repair Kit

1шт.

31

B51618

WASHER

fuel valve seat

1шт.

Part of P/N B51496 Carburetor Gasket Kit

1шт.

32

B51181

BOWL - fuel

1шт.

33

B51359

FLOAT

- fuel

1шт.

34

B51433

AXLE

- float pivot

1шт.

Part of P/N A40940 Repair Kit

1шт.

35

B51471

GASKET

, Serial Range: bowl-body

1шт.

Part of P/N B51496 Carburetor Gasket Kit

1шт.

36

B51196

VENTURI

1шт.

37

B51338

TUBE

JET - wall vent

1шт.

38

A40844

JET - main

1шт.

39

B51610

WASHER

main jet

1шт.

Part of P/N B51496 Carburetor Gasket Kit

1шт.

40

B51330

ADJUSTER

JET ASSY. - main adjustment

1шт.

41

B51618

WASHER

main adj. jet

1шт.

Part of P/N B51496 Carburetor Gasket Kit

1шт.

42

B51323

JET

- discharge

1шт.

43

B51619

WASHER

discharge jet

1шт.

Part of P/N B51496 Carburetor Gasket Kit

1шт.

44

B51385

SHAFT ASSY. - choke, Includes: Ref. 45

1шт.

45

B51579

SCREW - clamp, choke cable

1шт.

46

B51533

WASHER

SEAL - dust, choke shaft hole

1шт.

Part of P/N A40940 Repair Kit

1шт.

47

B51439

RETAINER

- dust seal

1шт.

Part of P/N A40940 Repair Kit

1шт.

48

B51509

PLUG

- choke shaft hole

1шт.

Part of P/N A40940 Repair Kit

1шт.

49

B51365

PLATE

ASSY. - choke disc.

1шт.

50

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER - lock, #6

4шт.

51

B51412

SPRING

- choke lever return

1шт.

52

B51400

SUPPORT

BRACKET ASSY. - choke cable, Includes: Ref. 53 - 55

1шт.

53

B51403

CLIP

- choke cable

1шт.

54

B51580

SCREW

- clip retaining

1шт.

55

129-76

SQUARE NUT,#8 - 36

- clip screw, #8 sq.

1шт.

56

B51458

SCREW,#8 - 32 x 0.37"

-, Serial Range: bracket-bowl

2шт.

57

B51541

PLUG

- bowl & body

3шт.

58

B51635

SCREW,5/8" x 0.335"

BOLT -, Serial Range: bowl-body

4шт.

59

G46826

GASKET

-, Serial Range: carb.-manifold

1шт.

Part of P/N A40940 Repair Kit

1шт.

60

B51496

GASKET

KIT carburetor, Includes: Ref. 31, 35, 39, 41 and 43

1шт.

Part of P/N A40940 Repair Kit

1шт.

61

CASA40940

KIT

REPAIR KIT, Include: Ref. 21, 22, 24, 27, 30, 34, 46 - 48, 59 and 60

1шт.
