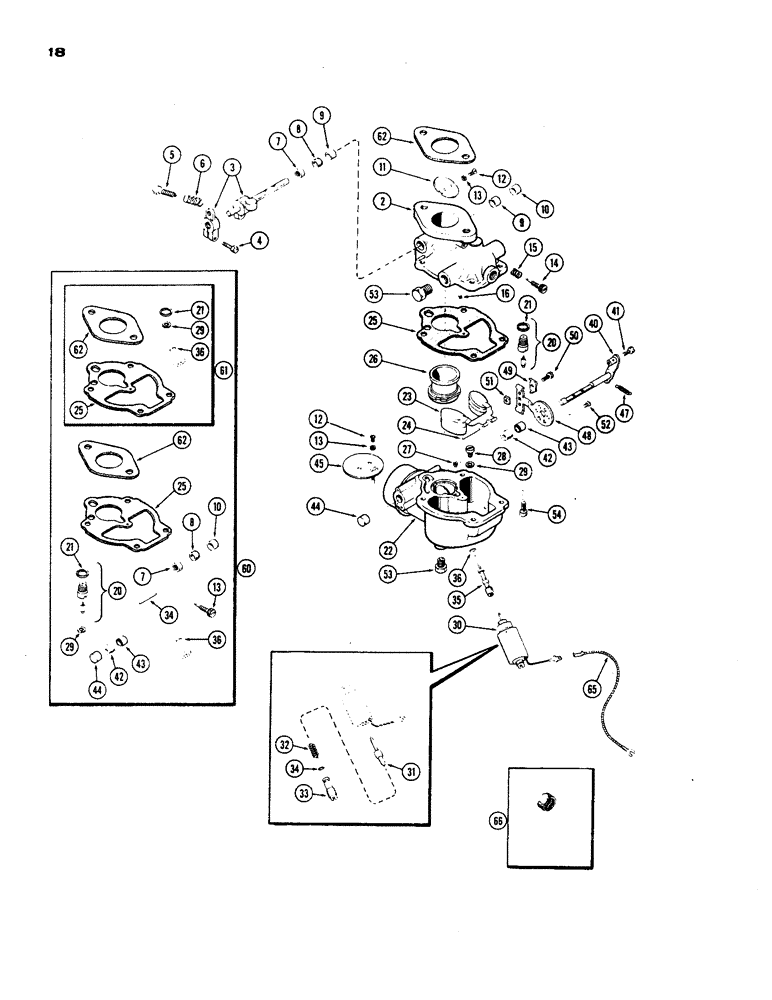

Запчасти Case 450 (018) - A38252 CARBURETOR, (188) SPARK IGNITION ENGINE (02) - FUEL SYSTEM

A38252

CARBURETOR

ASSY., Includes: Ref. 2 - 54

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - throttle (Order A38252)

1шт.

3

A25105

SHAFT

ASSY. - throttle, w/lever, Includes: Ref. 4 - 6

1шт.

4

B51584

SCREW - throttle lever clamp

1шт.

5

A25106

SCREW

- throttle stop

1шт.

6

A25107

SPRING - throttle stop screw

1шт.

7

B59360

RETAINER

- throttle shaft seal

1шт.

8

B51528

SEAL

- throttle shaft

1шт.

9

A40609

BUSHING

- throttle shaft

2шт.

10

A40612

PLUG

- throttle shaft hole

1шт.

11

B51211

PLATE

- throttle disc.

1шт.

12

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

- throttle & choke plate, #6-32 x 1/4" rd. hd.

4шт.

13

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

4шт.

14

B51265

HOSE

NEEDLE - idle adjusting

1шт.

15

B51404

SPRING

- idle adjusting needle

1шт.

16

B51306

JET

- idle

1шт.

20

A40938

VALVE

ASSY. - fuel, Includes: Ref. 21

1шт.

21

B51618

WASHER

- fuel valve seat (See ref. 61)

1шт.

22

B51181

BOWL - fuel

1шт.

23

B51359

FLOAT

- fuel

1шт.

24

B51433

AXLE

- float pivot

1шт.

25

B51471

GASKET

- bowel to body (See ref. 61)

1шт.

26

B51196

VENTURI

1шт.

27

B51338

TUBE

JET - well vent

1шт.

28

A40844

JET - main

1шт.

29

B51610

WASHER

- main jet (See ref. 61)

1шт.

30

A38253

SOLENOID

ASSY., Includes: Ref. 31 - 34

1шт.

31

A41560

PLUNGER

- solenoid

1шт.

32

A41557

SPRING

- plunger

1шт.

33

A41559

SCREW

- lead

1шт.

34

A41558

O-RING

"O" RING - screw

1шт.

35

B51323

JET

- discharge

1шт.

36

B51619

WASHER

- discharge jet (See ref. 61)

1шт.

40

A40618

SHAFT ASSY. - choke, Includes: Ref. 41

1шт.

41

B51579

SCREW - clamp, choke cable

1шт.

42

B51533

WASHER

SEAL - dust, choke shaft hole

1шт.

43

B51439

RETAINER

- dust seal

1шт.

44

B51509

PLUG

- choke shaft hole

1шт.

45

B51365

PLATE

ASSY. - choke disc.

1шт.

47

B51412

SPRING

- choke lever return

1шт.

48

B51401

BRACKET ASSY. - choke cable, Includes: Ref. 49 - 51

1шт.

49

B50403

CLIP - choke cable

1шт.

50

B51580

SCREW

- clip retaining

1шт.

51

129-76

SQUARE NUT,#8 - 36

- clip screw , #8 sq.

1шт.

52

B51458

SCREW,#8 - 32 x 0.37"

-, Serial Range: bracket-bowl

2шт.

53

B51541

PLUG

- bowl & body

3шт.

54

B51635

SCREW,5/8" x 0.335"

BOLT -, Serial Range: bowl-body

4шт.

60

CASA40940

KIT

REPAIR KIT - carburetor, Includes: Ref. 61 and 62

1шт.

61

B51496

GASKET

KIT - carburetor

1шт.

62

G46826

GASKET

-, Serial Range: carburetor-manifold

1шт.

65

A38244

WIRE - carburetor, Serial Range: solenoid-coil

1шт.

66

A37100

X

CLAMP - wire

1шт.
