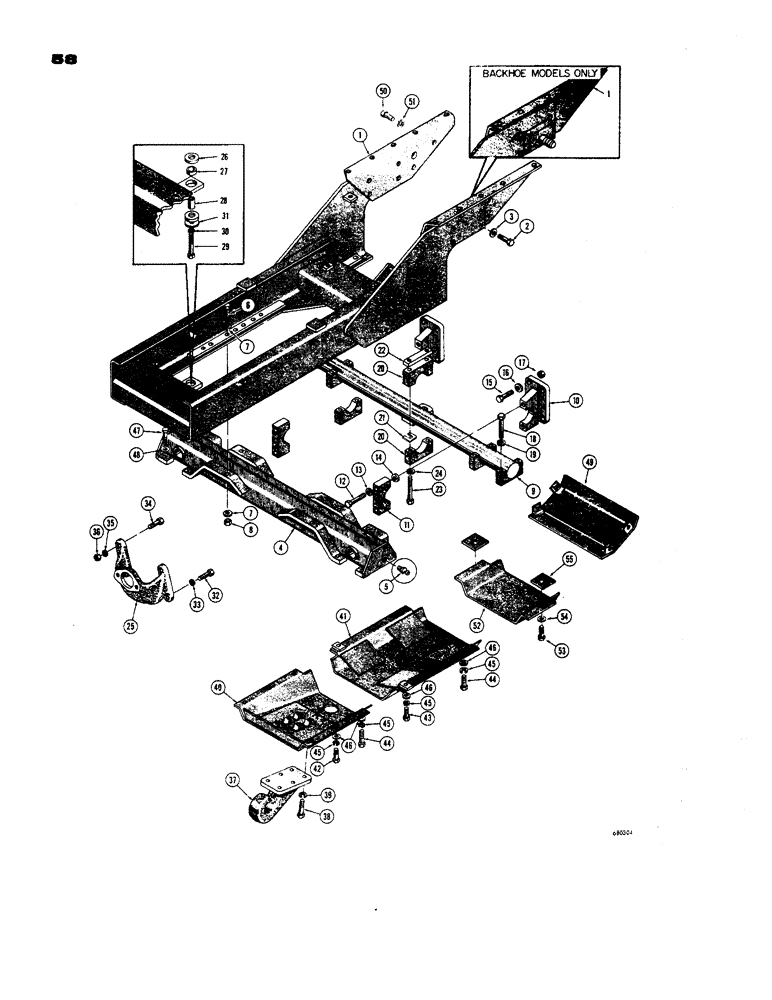

Запчасти Case 450 (058) - ENGINE FRAME AND RELATED PARTS (01) - ENGINE

1

D35264

FRAME - engine, all models except Backhoe Models

1шт.

D36548

FRAME - engine, Backhoe Models

1шт.

2

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special (Heat treated)

8шт.

4

D35263

CROSSMEMBER - front

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

6

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special (Heat treated)

8шт.

8

25-1012

NUT,3/4"-10, G5

4шт.

9

D35174

CROSSBAR - rear

1шт.

10

D35177

CLAMP

- final drive to crossbar (Rear sect.)

2шт.

11

D34663

CLAMP

- final drive to crossbar (Front Sect.)

2шт.

12

13-1464

BOLT,Hex, 7/8" - 9 x 4", Gr 5

HHCS - 7/8" - 9 NC x 4"

4шт.

13

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- special

4шт.

14

D33982

BUSHING

SPACER - clamp

2шт.

15

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

8шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special (Heat treated)

8шт.

17

131-148

NUT

- heavy (3/4" - 10 NC)

8шт.

18

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

8шт.

19

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special (Heat treated)

8шт.

20

D34663

CLAMP

- rear crossbar to engine frame

4шт.

21

D33982

BUSHING

SPACER - clamp

2шт.

22

D34722

BLOCK

- tapped

2шт.

23

13-14120

BOLT,Hex, 7/8" - 9 x 7-1/2", Gr 5

HHCS - 7/8" - 9 NC x 7-1/2"

4шт.

24

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- special

4шт.

25

D35017

SUPPORT

- engine, front

1шт.

26

D35011

WASHER

- special

2шт.

27

D35010

BUSHING,22.23mm ID x 41.27mm OD x 19.05mm L

- front engine support

1шт.

28

R18586

SPACER

- front engine support

1шт.

29

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

HHCS - 5/8" - 11 NC x 3-1/2"

1шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

31

CASD35009

WASHER,16.67mm ID x 63.5mm OD

- plain (Special)

1шт.

32

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

33

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

34

G49039

BOLT

- ground body (5/8"- 18 NF x 2-1/2")

2шт.

35

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

36

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

2шт.

37

10940

HOOK

- pull, all models except Backhoe Models

1шт.

38

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

6шт.

39

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

6шт.

40

D35159

GUARD

- crankcase, Drawbar and Dozer Models only

1шт.

D35157

GUARD

- crankcase, Loader Models without Backhoe

1шт.

41

D35162

GUARD

- transmission and torque converter (Optional on

1шт.

42

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

43

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

44

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

45

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

46

195-41

WASHER,5/8"

- plain () 5/8"

10шт.

47

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

48

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

8шт.

49

D42811

GUARD - rear sediment bowl (Models without rear mounted equipment)

1шт.

50

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

51

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

52

D41579

GUARD ASSY.

GUARD - suction tube

1шт.

53

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

54

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

55

D41580

BRACKET

- retaining, guard

2шт.
