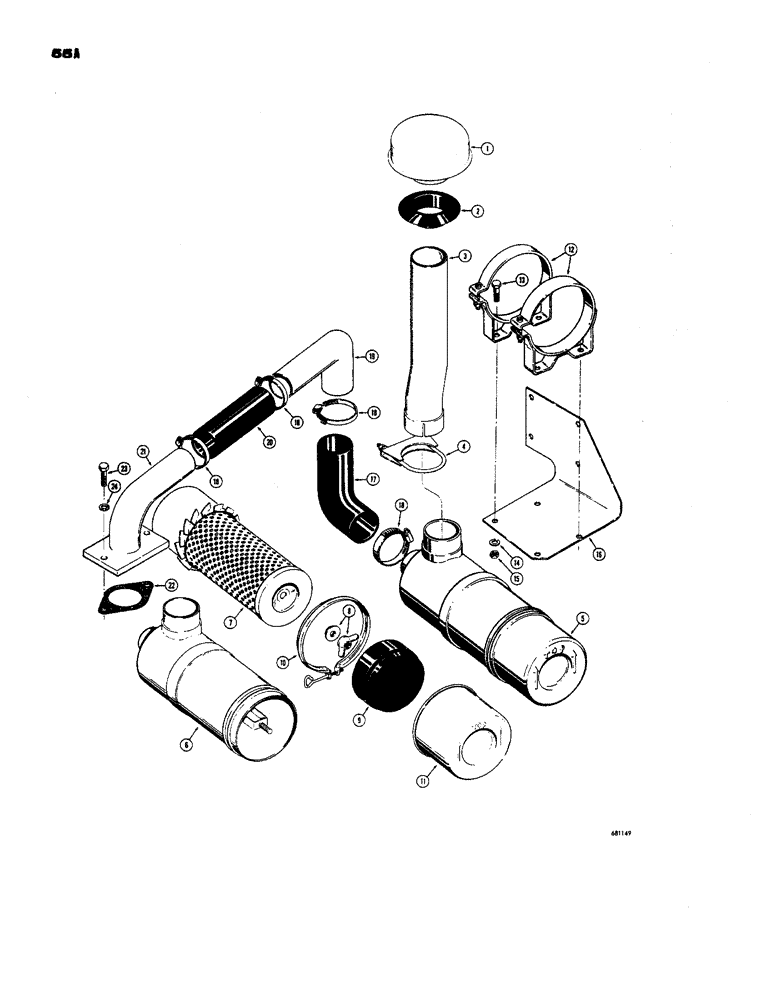

Запчасти Case 450 (055A) - DRY TYPE AIR CLEANER (01) - ENGINE

1

A21433

CAP

- inlet, air cleaner

1шт.

2

R14780

GROMMET

- air cleaner stack

1шт.

3

D43655

STACK - air cleaner extension

1шт.

4

A13240

CLAMP,2-5/8" ID

- air cleaner stack

1шт.

5

F84514

AIR CLEANER

- complete, Includes: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

7

F84998

FILTER, ELEMENT

ELEMENT - air cleaner

1шт.

8

F91761

WING NUT

AND GASKET - air cleaner

1шт.

9

F22312

BAFFLE

- air cleaner

1шт.

10

F84999

CLAMP,168.28mm

- air cleaner

1шт.

11

F91760

CUP

- air cleaner

1шт.

12

L11247

BAND

- air cleaner mounting

2шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

14

92-5

LOCK WASHER,5/16"

med sect. 5/16"

8шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" x 18 NC)

8шт.

16

D43656

BRACKET - air cleaner

1шт.

17

D28030

ELBOW UNION

ELBOW - hose

1шт.

18

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

19

D35076

TUBE - air cleaner

1шт.

20

A31130

HOSE,1.50" ID x 5.75", SAE 20R2 OR SAE 20R4

RADIATOR HOSE, , Air Cleaner to Manifold Intake Tube 1.50" ID x 5.75", SAE 20R2 OR SAE 20R4

1шт.

21

D43654

TUBE

- manifold intake

1шт.

22

D22670

GASKET

- manifold intake

1шт.

23

1954978C1

CAP

HHCS - 3/8" - 19 NC x 1"

2шт.

24

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.
