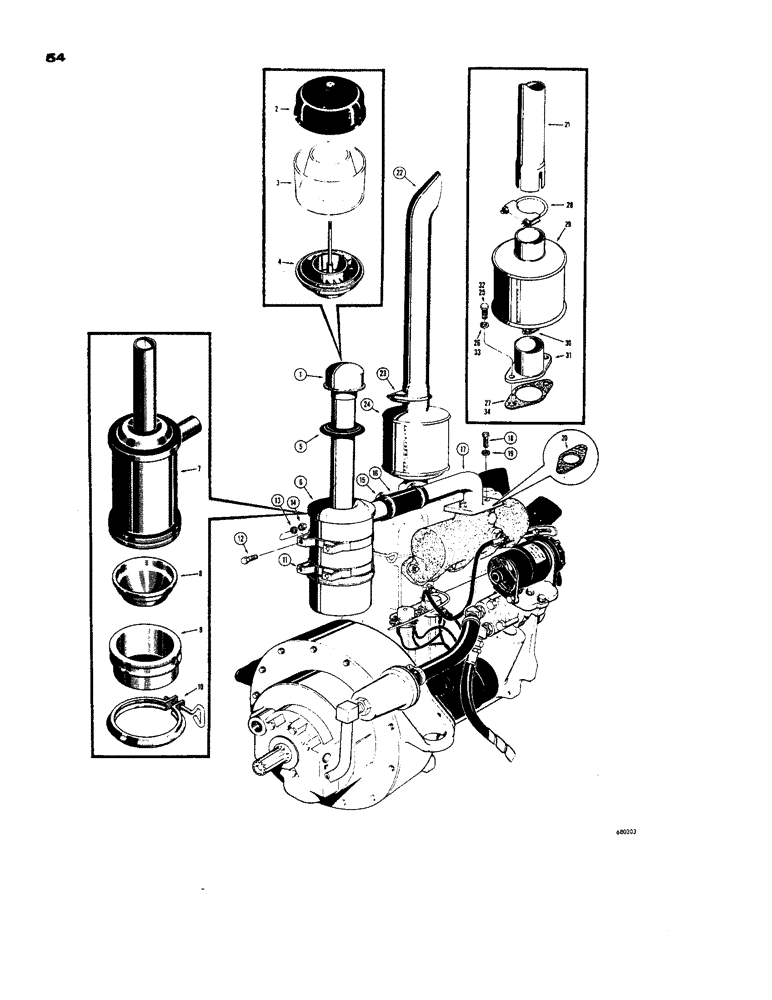

Запчасти Case 450 (054) - AIR CLEANER AND EXHAUST SYSTEM - DIESEL (01) - ENGINE

1

A21430

CAP

- inlet, air cleaner (Standard)

1шт.

A24439

CLEANER

PRE-CLEANER - inlet, air cleaner (Optional), Includes: Ref. 2 - 4

1шт.

2

73187

COVER

- pre-cleaner

1шт.

3

73186

HOUSING

BODY - pre-cleaner

1шт.

4

73189

TUBE

SLEEVE - pre-cleaner

1шт.

5

R14780

GROMMET

- air cleaner stack

1шт.

6

D22440

AIR CLEANER - complete (Use G45473 cleaner for service), Includes: Ref. 7 - 10

1шт.

G45473

AIR CLEANER - complete, Includes: Ref. 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

8

R15280

CUP

- oil, inner

1шт.

9

R15279

CUP ASSY.

CUP - oil, outer

1шт.

10

A8297

CLAMP

- air cleaner

1шт.

11

D35074

BAND

- air cleaner mounting

2шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

13

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

15

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

16

A31130

HOSE,1.50" ID x 5.75", SAE 20R2 OR SAE 20R4

RADIATOR HOSE, , Air Cleaner to Manifold 1.50" ID x 5.75", SAE 20R2 OR SAE 20R4

1шт.

17

D35077

TUBE

ELBOW - air, Serial Range: cleaner-manifold

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

20

D22670

GASKET

- air cleaner, Serial Range: elbow-manifold

1шт.

21

D33535

PIPE

- exhaust, ceramic coated (Use with D29307 muffler only)

1шт.

22

D33503

PIPE

- exhaust, ceramic coated (Use with D35106 muffler only)

1шт.

23

A13240

CLAMP,2-5/8" ID

- exhaust, Serial Range: pipe-muffler

1шт.

24

D35106

MUFFLER

- exhaust standard

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

27

G46853

MANIFOLD GASKET

- exhaust outlet

1шт.

28

D38328

X

CLAMP - exhaust, Serial Range: pipe-muffler

1шт.

29

D29307

X

MUFFLER - exhaust, spark arresting (When stock is exhausted, use D45256 muffler for service)

1шт.

D45256

MUFFLER,W/ Spark Arrester

- exhaust, spark arresting

1шт.

30

A13240

CLAMP,2-5/8" ID

-, Serial Range: muffler-outlet

1шт.

31

D29308

OUTLET

- exhaust

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

33

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.
