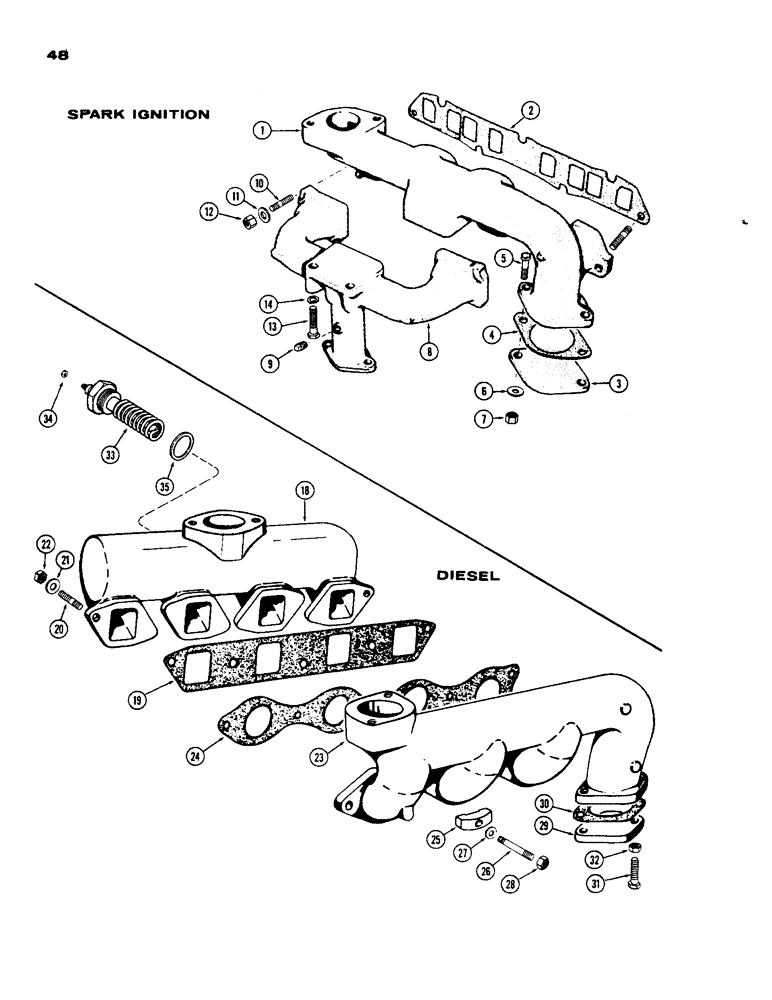

Запчасти Case 450 (048) - MANIFOLD, (188) SPARK IGNITION ENGINE (01) - ENGINE

1

G2097

MANIFOLD

- exhaust

1шт.

2

G46868

MANIFOLD GASKET

-, Serial Range: manifold-head

1шт.

3

A38188

PLATE

COVER - exhaust opening (Replaces G2044)

1шт.

4

G46853

MANIFOLD GASKET

-, Serial Range: cover-manifold

1шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

2шт.

6

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16")

2шт.

7

131-903

NUT,3/8"-16

NUT - (3/8" N.C. hex., Seez-Pruf)

2шт.

8

A37170

MANIFOLD

- intake

1шт.

9

221-12

PLUG,Sq Hd, 1/4"-18

- (1/4" P.T., sq. hd.)

1шт.

10

A29431

STUD

- manifold to head (3/8" N.C. x 1-3/4")

7шт.

11

A30058

WASHER

- stud (13/32 x 7/8 x 1/8")

4шт.

11

195-25

WASHER,3/8"

- stud (13/32 x 13/16 x 1/16")

1шт.

12

131-903

NUT,3/8"-16

NUT - (3/8" N.C. hex., Seez-Pruf)

7шт.

13

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- (3/8 x 2-1/2" N.C. hex.)

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

18

A35782

MANIFOLD

- intake, (188) diesel engine

1шт.

19

G46871

GASKET

- intake manifold to head, (188) diesel engine

1шт.

20

A29431

STUD

- manifold to head (3/8" N.C. x 1-3/4"), (188) diesel engine

4шт.

21

92-6

LOCK WASHER,3/8"

(188) diesel engine 3/8"

4шт.

22

131-903

NUT,3/8"-16

NUT - (3/8" N.C. Seez-Pruf), (188) diesel engine

4шт.

23

G2113

EXHAUST MANIFOLD

MANIFOLD - exhaust, (188) diesel engine

1шт.

24

G46872

MANIFOLD GASKET

- exhaust manifold to head, (188) diesel engine

1шт.

25

A35028

CLAMP

- manifold to head, (188) diesel engine

6шт.

26

A35175

STUD

- manifold clamp (3/8" N.C. x 2-7/16"), (188) diesel engine

6шт.

27

92-6

LOCK WASHER,3/8"

(188) diesel engine 3/8"

6шт.

28

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex), (188) diesel engine

6шт.

29

A38188

PLATE

COVER - exhaust opening (Replaces G2044), (188) diesel engine

1шт.

30

G46853

MANIFOLD GASKET

- cover to manifold, (188) diesel engine

1шт.

31

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.), (188) diesel engine

2шт.

32

131-903

NUT,3/8"-16

NUT - (3/8" N.C. hex., Seez-Pruf), (188) diesel engine

2шт.

33

A37775

HEATER

ASSY. - manifold, (188) diesel engine, Includes: Ref. 34

1шт.

34

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Terminal (188) diesel engine

1шт.

35

A20916

MANIFOLD GASKET

GASKET - heater to manifold, (188) diesel engine

1шт.
