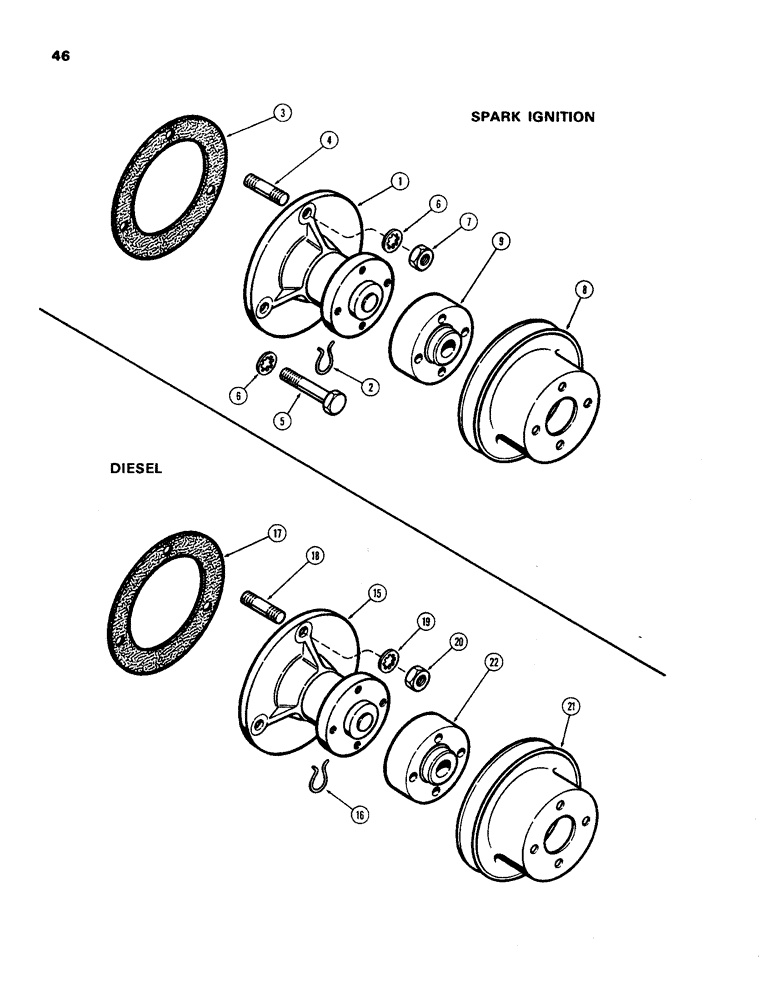

Запчасти Case 450 (046) - WATER PUMP, (188) SPARK IGNITION ENGINE (01) - ENGINE

1

A39076

WATER PUMP

PUMP ASSY. - water, Includes: Ref. 2 and 3

1шт.

2

A30067

RING

- bearing retaining

1шт.

3

A38083

GASKET

-, Serial Range: pump-engine

1шт.

4

A29433

STUD

- pump to engine (3/8" N.C. x 1")

1шт.

5

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

5

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- (3/8 x 2-3/4" N.C hex)

1шт.

6

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

7

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex)

1шт.

8

G11339

PULLEY

- drive

1шт.

9

A37191

BUSHING

SPACER - fan hub (For 3/4" & 5/8" shaft)

1шт.

15

A39074

PUMP

ASSY. - water, (188) diesel engine, Includes: Ref. 16 and 17

1шт.

16

A30067

RING

- bearing retainer, (188) diesel engine

1шт.

17

A38083

GASKET

- pump to engine, (188) diesel engine

1шт.

18

A29433

STUD

- pump mounting (3/8" N.C. x 1"), (188) diesel engine

3шт.

19

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , (188) Diesel engine Int Tooth, 3/8"

3шт.

20

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex), (188) diesel engine

3шт.

21

G11339

PULLEY

- drive, (188) diesel engine

1шт.

22

A37191

BUSHING

SPACER - fan hub (For 3/4" & 5/8" shaft), (188) diesel engine

1шт.
