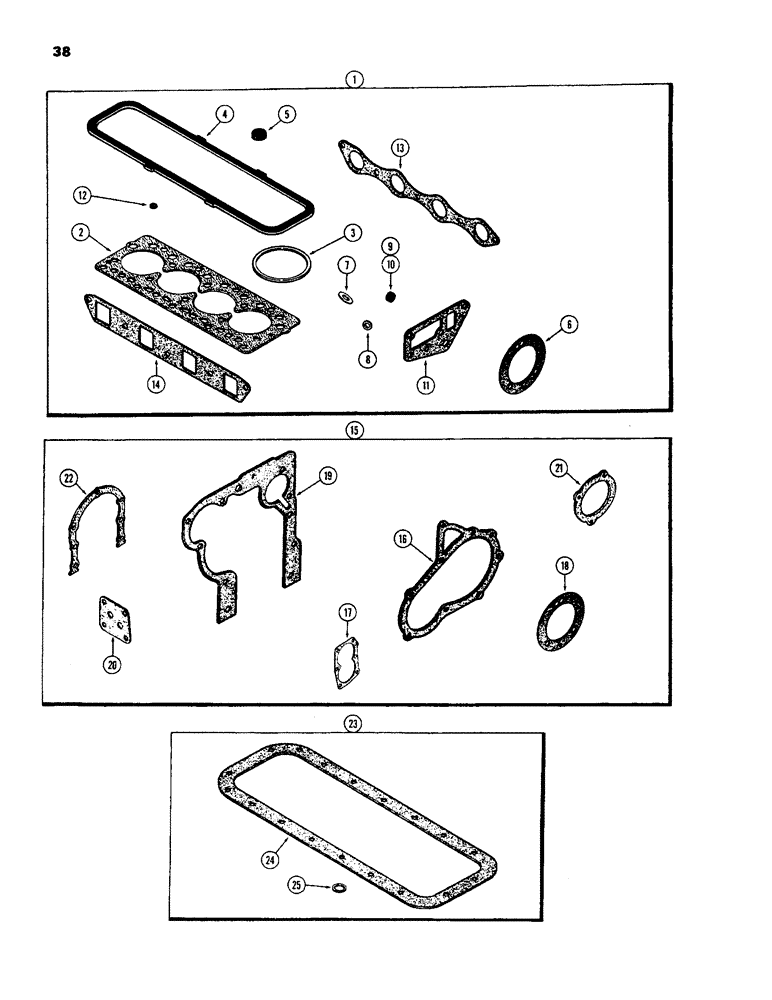

Запчасти Case 450 (038) - ENGINE GASKET KITS, (188) DIESEL ENGINE (01) - ENGINE

1

A42001

GASKET

VALVE GRIND KIT, Includes: Ref. 2 - 14

1шт.

For complete engine overhaul order ref 1, 15 and 23

1шт.

2

A36877

GASKET

-, Serial Range: head-block

1шт.

3

A36900

RING, PISTON

RING - fire, cylinder

4шт.

4

A43030

GASKET,3.05mm Thk

- valve cover

1шт.

5

G46867

GROMMET

- rubber, valve cover

2шт.

6

G46875

GASKET

- water pump

1шт.

7

G49068

GASKET

- seat, fuel injector

4шт.

8

D49407

WASHER - injection, Serial Range: tube-pump

8шт.

9

222-101

SLEEVE,3/16" Tube

- injector leak-off

4шт.

10

222-103

SLEEVE,5/16" Tube

5/16" Tub - Fuel line

4шт.

11

G46858

GASKET

- pump drive cover

1шт.

12

G46851

SEAL

- rubber, valve stem

8шт.

13

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

14

G46871

GASKET

- intake manifold

1шт.

15

A41426

KIT

CYLINDER BLOCK KIT - (Replaces G11950), Includes: Ref. 16 - 22

1шт.

For complete engine overhaul order ref 1, 15 and 23

1шт.

16

G46859

GASKET

- pump drive cover

1шт.

17

G46852

GASKET

- oil pump cover

1шт.

18

G46875

GASKET

- water pump

1шт.

19

G38228

GASKET - drive, Serial Range: cover-block

1шт.

20

G46854

GASKET

- oil filter bracket

1шт.

21

A30042

GASKET

- torque conv., pump support

1шт.

22

G46802

GASKET

- oil seal retainer

1шт.

23

A40712

KIT

OIL PAN GASKET KIT, Includes: Ref. 24 and 25

1шт.

For complete engine overhaul order ref 1, 15 and 23

1шт.

24

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40712)

1шт.

25

A58608

GASKET

- drain plug (3/4" I.D. x 1" O.D. nylon)

1шт.
