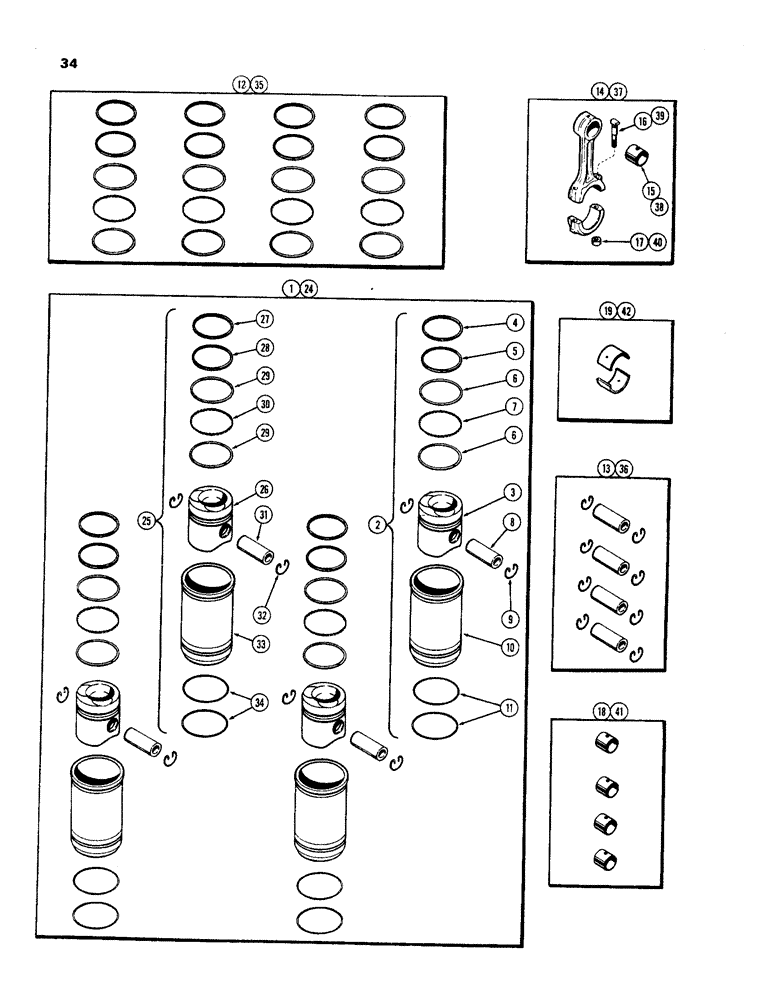

Запчасти Case 450 (034) - PISTON ASSEMBLY AND CONNECTING RODS, (188) DIESEL ENGINE, FOR WIDE FLANGED SLEEVES (01) - ENGINE

1

A42813

PISTON

& SLEEVE SET - (Set of 4) (Replaces A37764, A42002 & A42014. Order A42001 gasket kit also), Includes: Ref. 2 - 11

1шт.

2

A42812

SLEEVE

PISTON & SLEEVE ASSY. - (Set of 1) (Replaces A37769, A42003 & A42015. Order A42001 gasket kit also), Includes: Ref. 3 - 11

1шт.

3

A38424

PISTON

- (Replaces G2137)

1шт.

4

G4819

RING

- compression, 1st Groove (see ref. 12)

1шт.

5

G4817

RING

- compression, 2nd Groove (see ref. 12)

1шт.

6

G47155

RAIL

- oil control, 3rd Groove (See ref. 12)

2шт.

7

G47174

SPRING

SPACER - oil control rails (See ref. 12)

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order A35771)

1шт.

9

G46702

RING, LOCKING

RING - snap, piston pin ret.

2шт.

10

A39006

SLEEVE

- cylinder

1шт.

A39006 Sleeve: 4.53" across flanged area G2110 sleeve: 4.45" across flanged area.

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

2шт.

12

G37075

RING

SET - (Set of 4)

1шт.

13

A35771

KIT

PIN SET - piston (set of 4 pins & 8 rings)

1шт.

14

G11847

ROD

ASSY. - connecting, Includes: Ref. 15 - 17

4шт.

15

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order G11953)

1шт.

16

G49064

STEP BOLT

BOLT - conn. rod cap

2шт.

17

G49060

NUT

- conn. rod bolt

2шт.

18

G11953

BUSHING

SET - piston pin (set of 4)

1шт.

19

A36500

SEAL

INSERT ASSY. - conn. rod brg. (std.)

4шт.

19

A36501

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.002")

4шт.

19

A36502

LINING

INSERT ASSY. - conn. rod brg. (-.010")

4шт.

19

A36503

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.020")

4шт.

19

A36504

KIT

INSERT ASSY. - conn. rod brg. (-.030")

4шт.

24

A35772

KIT, LINER, PISTON R

PISTON & SLEEVE SET (Set of 4), for narrow flanged, Includes: Ref. 25 - 34

1шт.

25

A36391

SLEEVE ASSY

PISTON & SLEEVE ASSY. - (Set of 1), for narrow flanged, Includes: Ref. 26 - 34

4шт.

26

A38424

PISTON

- (Replaces G2137), for narrow flanged sleeves

1шт.

27

G4819

RING

- compression, 1st Groove (See ref. 35), for narrow flanged sleeves

1шт.

28

G4817

RING

- compression, 2nd Groove (See ref. 35), for narrow flanged sleeves

1шт.

29

G47155

RAIL

- oil control, 3rd Groove (See ref. 35), for narrow flanged sleeves

2шт.

30

G47174

SPRING

SPACER - oil control rails (See ref.35), for narrow flanged sleeves

1шт.

31

NSS

NOT SOLD SEPARAT

PIN - piston (Order A35771), for narrow flanged sleeves

1шт.

32

G46702

RING, LOCKING

RING - snap, piston pin ret., for narrow flanged sleeves

2шт.

33

G2110

SLEEVE

- piston (cylinder liner), for narrow flanged

1шт.

A39006 Sleeve: 4.53" across flanged area G2110 sleeve: 4.45" across flanged area.

1шт.

34

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing, for narrow flanged

2шт.

35

G37075

RING

SET - (Set of 4), for narrow flanged sleeves

1шт.

36

A35771

KIT

PIN SET - piston (Set of 4 pins & 8 rings), for narrow flanged sleeves

1шт.

37

G11847

ROD

ASSY. - connecting, for narrow flanged sleeves, Includes: Ref. 38 - 40

4шт.

38

NSS

NOT SOLD SEPARAT

BUSHING - pisotn pin (Order G11953), for narrow flanged sleeves

1шт.

39

G49064

STEP BOLT

BOLT - conn. rod cap, for narrow flanged sleeves

2шт.

40

G49060

NUT

- conn. rod bolt, for narrow flanged sleeves

2шт.

41

G11953

BUSHING

SET - piston pin (set of 4), for narrow flanged sleeves

1шт.

42

A36500

SEAL

INSERT ASSY. - conn. rod brg. (std.), for narrow flanged sleeves

4шт.

42

A36501

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.002"), for narrow flanged sleeves

4шт.

42

A36502

LINING

INSERT ASSY. - conn. rod brg. (-.010"), for narrow flanged sleeves

4шт.

42

A36503

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.020"), for narrow flanged sleeves

4шт.

42

A36504

KIT

INSERT ASSY. - conn. rod brg. (-.030"), for narrow flanged sleeves

4шт.
