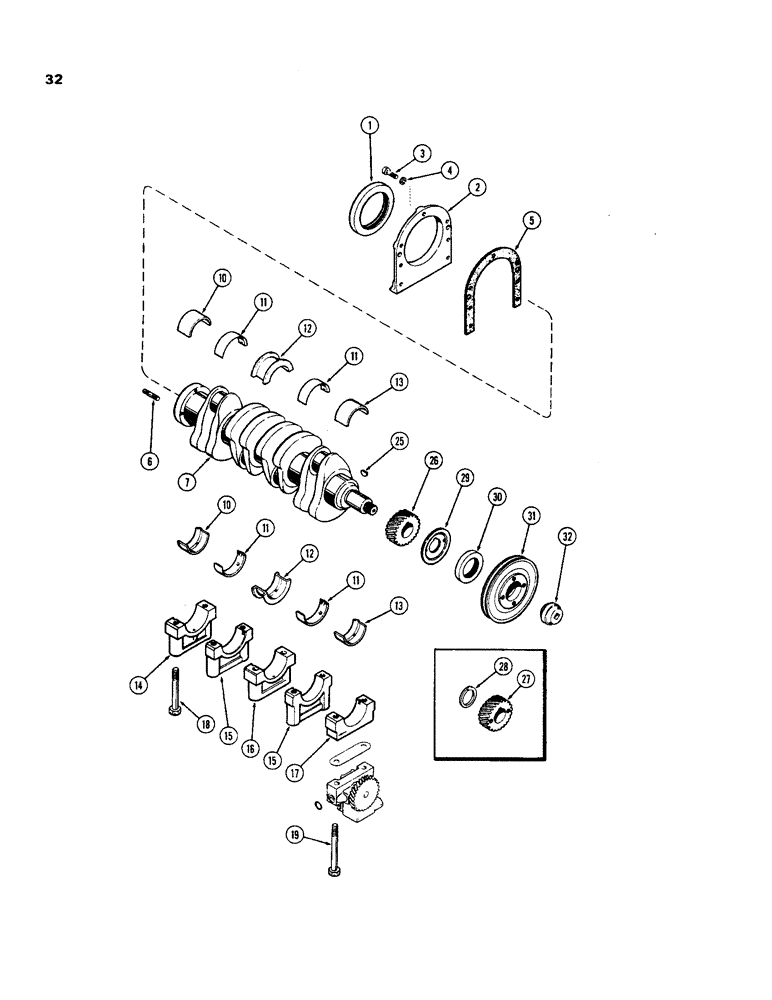

Запчасти Case 450 (032) - CRANKSHAFT, (188) DIESEL ENGINE (01) - ENGINE

1

A39027

OIL SEAL

- oil, rear (4 x 5 x 1/2") (Replaces A36610)

1шт.

2

A38390

RETAINER

- rear oil seal

1шт.

3

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- (1/4" x 3/4" N.C. hex)

4шт.

3

113-26

BOLT

- (1/4 x 1" N.C. hex.)

3шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

5

A39188

GASKET

- rear oil seal retainer

1шт.

6

A29434

STUD

- flywheel to crankshaft (7/16" N.F. x 1-3/4")

4шт.

7

A151015

CRANKSHAFT

- w/13 int. spline teeth (Order A39146)

1шт.

7

A39150

CRANKSHAFT

ASSY. - w/pilot bushing (Order A39146)

1шт.

7

A39146

CRANKSHAFT

- (Replaces G11889 and A37211)

1шт.

A39146 is NOT used in BOTH applications as written in the catalog...A39150 HAS A BUSHING IN THE FLANGED END. A151015 HAS AN INTERNAL SPLINE INSTEAD OF BUSHING

1шт.

10

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

INSERT ASSY. - main brg., rear (std.)

1шт.

10

A36496

LINING

INSERT ASSY. - main brg., rear (-002")

1шт.

10

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

INSERT ASSY. - main brg., rear (-.010")

1шт.

10

A36498

KIT

INSERT ASSY. - main brg., rear (-.020")

1шт.

10

A36499

BEARING LINER

INSERT ASSY. - main brg., rear (-.030")

1шт.

11

A36485

LINING

INSERT ASSY. - main brg., inter. (std.)

2шт.

11

A36486

LINING

INSERT ASSY. - main brg., inter. (-.002")

2шт.

11

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

INSERT ASSY. - main brg., inter. (-.010")

2шт.

11

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

INSERT ASSY. - main brg., inter. (-.020")

2шт.

11

A36489

LINING

INSERT ASSY. - main brg., inter. (-.030")

2шт.

12

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

INSERT ASSY. - main brg., center (std.)

1шт.

12

A36491

LINING

INSERT ASSY. - main brg., center (-.002")

1шт.

12

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

INSERT ASSY. - main brg., center (-.010")

1шт.

12

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

INSERT ASSY. - main brg., center (-.020")

1шт.

12

A36494

LINING

INSERT ASSY. - main brg., center (-.030")

1шт.

13

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

INSERT ASSY. - main brg., front (std.)

1шт.

13

A36481

LINING

INSERT ASSY. - main brg., front (-.002")

1шт.

13

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

INSERT ASSY. - main brg., front (-.010")

1шт.

13

A36483

LINING

INSERT ASSY. - main brg., front (-.020")

1шт.

13

A36484

LINING

INSERT ASSY. - main brg., front (-.030")

1шт.

14

G2129

CAP

- bearing

1шт.

15

G2127

CAP

- intermediate bearing

2шт.

16

G2127

CAP

- center bearing

1шт.

17

G2127

CAP

- front bearing

1шт.

18

113-444

BOLT

- bearing cap (1/2 x 4-1/2" N.C. hex.)

8шт.

19

G49077

BOLT

- front bearing cap (1/2 x 5-1/8" N.C. hex)

2шт.

25

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft (Hi-Pro #808)

2шт.

26

A39288

GEAR

- carnkshaft (1-5/32" wide) (Replaces A29263 & A29294)

1шт.

27

A29263

GEAR

- crankshaft (1-1/16" wide) (Order A39288)

1шт.

28

A29294

BUSHING

SPACER - thrust, crankshaft (only w/A29263 gear)

1шт.

29

A29259

SLINGER

- oil

1шт.

30

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, front (2-1/8 x 3 x 1/2") (Replaces A36609)

1шт.

31

G11342

X

PULLEY - fan & generator drive

1шт.

32

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.
