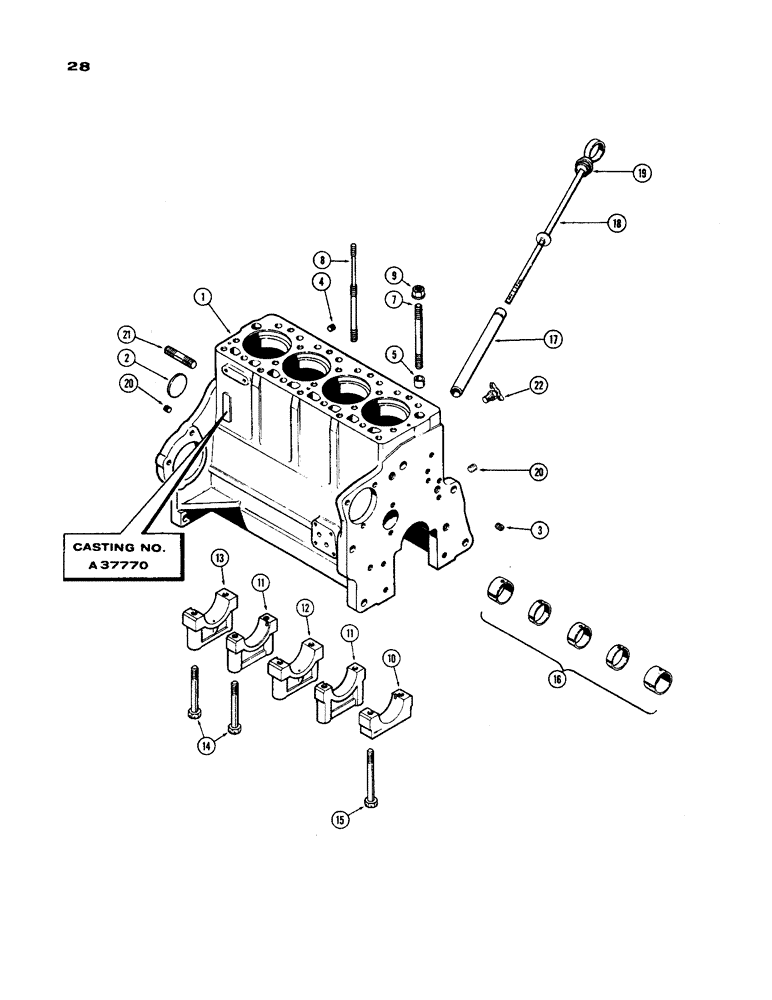

Запчасти Case 450 (028) - CYLINDER BLOCK ASSY., (188) DIESEL ENG., FOR WIDE FLANGED SLEEVES, USED ENG. S.N. 2610997 - 2614826 (01) - ENGINE

A37773

BLOSK ASSY. - cylinder, (Order A41814 Figure 26) (incl. stripped block, crankshaft & brgs., camshaft, timing gears, piston assy., connecting rods, brgs. & oil pump assy.) (Casting #A37770), Includes: Ref. 1 - 22

1шт.

1

A37772

BLOCK ASSY - stripped (Order A41597 Figure 26) (Casting #A37770), Includes: Ref. 2 - 19

1шт.

2

A39241

PLUG,Exp, 2.12" dia

- camshaft hole (2-1/8" Exp.)

1шт.

3

G49070

PLUG

- oil gallery, front, drilled

1шт.

4

221-32

PLUG,Sq Soc, 3/8"-18 NPTF

- water jacket (3/8" P.T., ctsk. sckt. hd.)

1шт.

5

G49608

RING

DOWEL - ring, head locating (17/32 x 3/4 x 7/8")

2шт.

7

A36904

STUD

- cyl. head (1/2" N.C. x 4") 4

4шт.

7

A36902

STUD

- cyl. head (1/2" N.C. x 5-5/8)

11шт.

7

A36905

STUD

- cyl. head (1/2" N.C. x 6")

2шт.

8

A36903

STUD

- cyl. head & cover

2шт.

9

A37030

FLANGE NUT

- cyl. head stud (1/2" N.C., flanged)

19шт.

10

G2126

CAP

- main brg., front

1шт.

11

G2128

CAP

- main brg., intermediate

2шт.

12

G2127

CAP

- main brg., center

1шт.

13

G2129

CAP

- main brg., rear

1шт.

14

113-444

BOLT

- brg. caps (1/2 x 4-1/2" N.C. spec.)

8шт.

15

G49077

BOLT

- frt. brg. cap (1/2 x 5-1/8" N.C. spec.)

2шт.

16

A41232

KIT

BUSHING KIT - camshaft, Pre-sized (Replaces A36317)

1шт.

17

A37149

TUBE

- dipstick, w/bead

1шт.

18

A37148

DIPSTICK

ASSY. - (Guide 15/16" wide), Includes: Ref. 19

1шт.

19

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - disptick (3/4 x 1 x 1/8")

2шт.

20

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

2шт.

21

A29333

STUD

- engine (5/8" N.C. x 3")

2шт.

22

A23656

COCK, DRAIN

COCK - drain, engine block

1шт.
