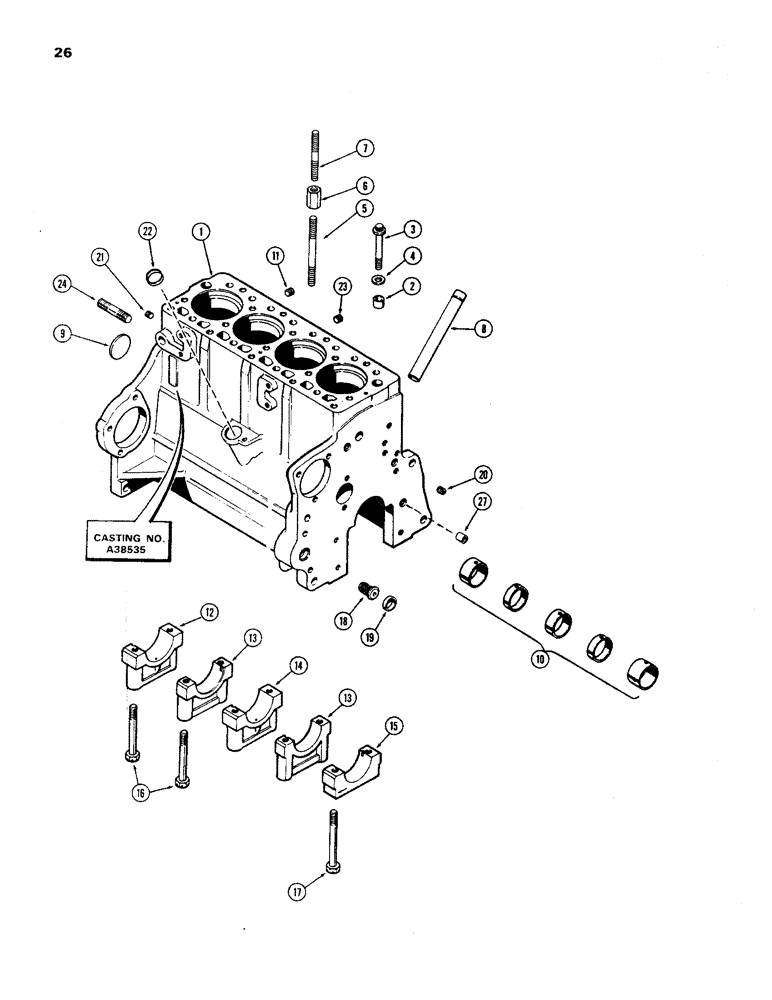

Запчасти Case 450 (026) - CYLINDER BLOCK ASSEMBLY, (188) DIESEL ENGINE, WITH CYLINDER BLOCK HEAD BOLTS (01) - ENGINE

A42814

CYLINDER BLOCK

BLOCK ASSY. - short (Casting No. A38535) (incl. stripped block, crankshaft & brgs., camshaft, timing gears, piston assy, conn. rods & oil pump, Includes: Ref. 1 - 21

1шт.

1

A41597

SKELETON ENGINE

BLOCK ASSY. - stripped (Casting No. A38535), Includes: Ref. 2 - 21

1шт.

2

G49608

RING

- dowel, head locating

2шт.

3

A39047

12 PT SCREW

BOLT - cyl. head (1/2 x 3-1/2" N.C., 12 pt. hd.)

4шт.

3

A39048

12 PT SCREW

BOLT - cyl. head (1/2 x 5-1/8" N.C., 12 pt. hd.)

11шт.

3

A39049

12 PT SCREW

BOLT - cyl. head (1/2 x 5-5/8" N.C., 12 pt. hd.)

2шт.

4

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- cyl. head bolts (1/2 x 7/8 x 1/8")

17шт.

5

A36902

STUD

- cyl. head (1/2" N.C. x 5-5/8")

2шт.

6

A51114

NUT

- head stud (1/2" N.C. x 3/8" N.C.)

2шт.

7

A51271

STUD

- cyl. head cover (3/8" N.C. x 3-3/4")

2шт.

8

A37149

TUBE

- oil filler & dipstick

1шт.

9

A39241

PLUG,Exp, 2.12" dia

- rear (2-1/8" exp.) (Replaces A30033)

1шт.

10

A42746

CAM

BUSHING SET - camshaft

1шт.

11

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - 3/8" sckt. hd.

1шт.

12

A38385

CAP

- main bearing, rear

1шт.

13

G2128

CAP

- main bearing, intermediate

2шт.

14

G2127

CAP

- main bearing, center

1шт.

15

G2126

CAP

- main bearing, front

1шт.

16

113-444

BOLT

- bearing cap (1/2 x 4-1/2" N.C. hex)

8шт.

17

113-445

BOLT

- front bearing cap (1/2 x 5-1/8" N.C. hex.)

2шт.

18

A153552

ADAPTER

- oil filter

1шт.

19

41-1016

PLUG,Cup, 1"

- adapter (1" cup type)

1шт.

20

G49070

PLUG

- drilled (1/4" P.T.)

1шт.

21

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Rear Hex Soc, 1/4"-18 NPTF

2шт.

22

A38534

PLUG

- tach. drive opening (1-1/16" cup type)

1шт.

23

221-662

PLUG,Hex Hd, 1/4"-18

- drain cyl. block (1/4" P.T. sq. hd.)

1шт.

24

A29363

STUD

- engine mounting (5/8" N.C.-N.F. x 2-1/4")

2шт.
