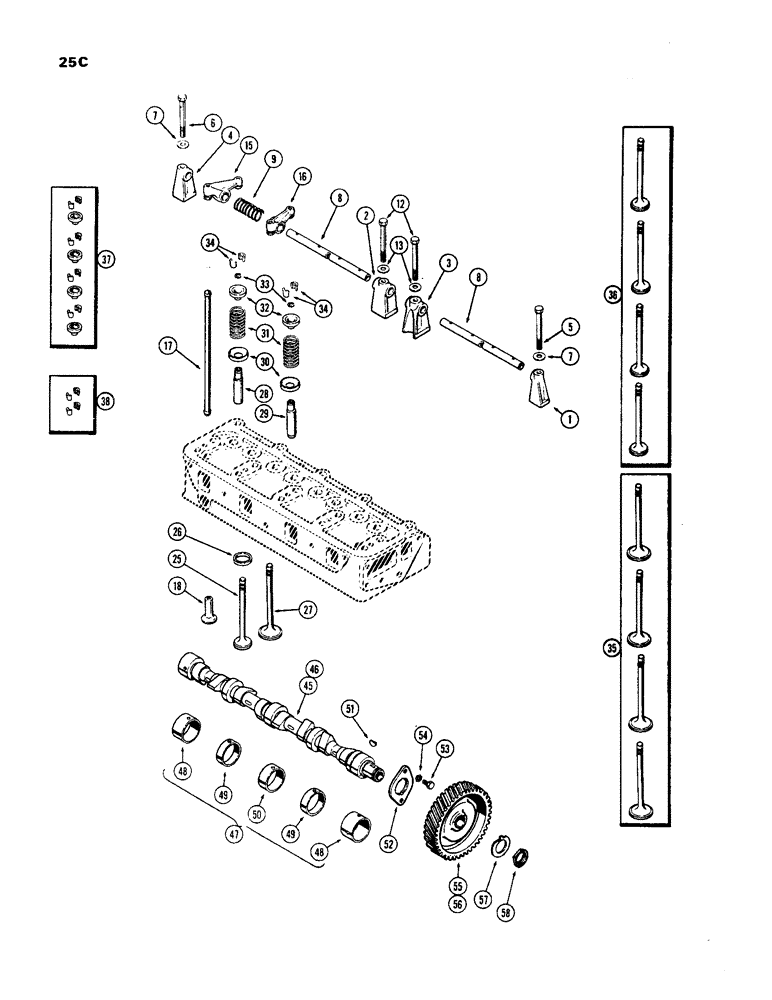

Запчасти Case 450 (025C) - VALVE MECHANISM AND CAMSHAFT, (188) DIESEL ENGINE (01) - ENGINE

1

G2100

BRACKET

- front, rocker arm shaft

1шт.

2

G2101

BRACKET

- center, rocker arm shaft

1шт.

3

G2102

BRACKET

- intermediate, rocker arm shaft

2шт.

4

A36615

BRACKET

- rear, rocker arm shaft

1шт.

5

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- (3/8 x 3-1/2" N.C. hex)

4шт.

6

G49067

BOLT

- rear bracket (3/8 x 3-1/2" N.C. hex., drilled)

1шт.

7

A30058

WASHER

- bracket bolt (13/32 x 7/8 x 1/8")

5шт.

8

A38181

SHAFT

- rocker arm (Replaces G11743 & G11747)

1шт.

9

G48501

SPRING

- rocker arm shaft

4шт.

15

A51149

ARM

ASSY. - rocker, L.H. (Replaces G45771)

4шт.

16

A51148

ARM

ASSY. - rocker, R.H. (Replaces G45770)

4шт.

17

G47079

ROD

- push

8шт.

18

G47077

TAPPET

- valve

8шт.

25

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 35)

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order from Figure 24)

4шт.

27

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 36)

4шт.

28

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve stem (Order from Figure 24)

4шт.

29

NSS

NOT SOLD SEPARAT

GUIDE - intake valve stem (Order from Figure 24)

4шт.

30

G49065

SEAT

- valve spring

8шт.

31

A30025

SPRING

- valve

8шт.

32

NSS

NOT SOLD SEPARAT

RETAINER - valve spring (Order ref.37)

8шт.

33

G46851

SEAL

- rubber, valve stem

8шт.

34

NSS

NOT SOLD SEPARAT

LOCK - retainer, valve spring (Order ref.38)

16шт.

35

A41727

VALVE

SET - exhaust (set of 4)

1шт.

36

A41726

VALVE

SET - intake (Set of 4)

1шт.

37

G11927

RETAINER

SET - (Set of 4 ret. & 8 locks)

2шт.

38

G11929

LOCK

SET - valve spring retainer (Set of 4)

4шт.

45

A36853

X

CAMSHAFT - (Order A39013 & A38931 gear)

1шт.

46

A36853

X

CAMSHAFT - (w/tach. drive gear)

1шт.

47

A41232

KIT

BUSHING SET - camshaft (Replaces A36317), Includes: Ref. 48 - 50

1шт.

48

NSS

NOT SOLD SEPARAT

BUSHING - front & rear (1-7/32" wide)

2шт.

49

NSS

NOT SOLD SEPARAT

BUSHING - intermediate (1/2" wide)

2шт.

50

NSS

NOT SOLD SEPARAT

BUSHING - center (23/32" wide)

1шт.

51

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft gear #6, 5/32" x 5/8"

1шт.

52

A29290

PLATE

- thrust

1шт.

53

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

BOLT - thrust plate

2шт.

54

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

55

G2066

X

GEAR - camshaft (w/1 core hole) (Order A38931)

1шт.

56

A38931

GEAR

- camshaft (w/2 core holes)

1шт.

57

A29438

LOCK NUT

WASHER - tab, camshaft nut lock

1шт.

58

A30063

NUT

-, Serial Range: gear-camshaft

1шт.
