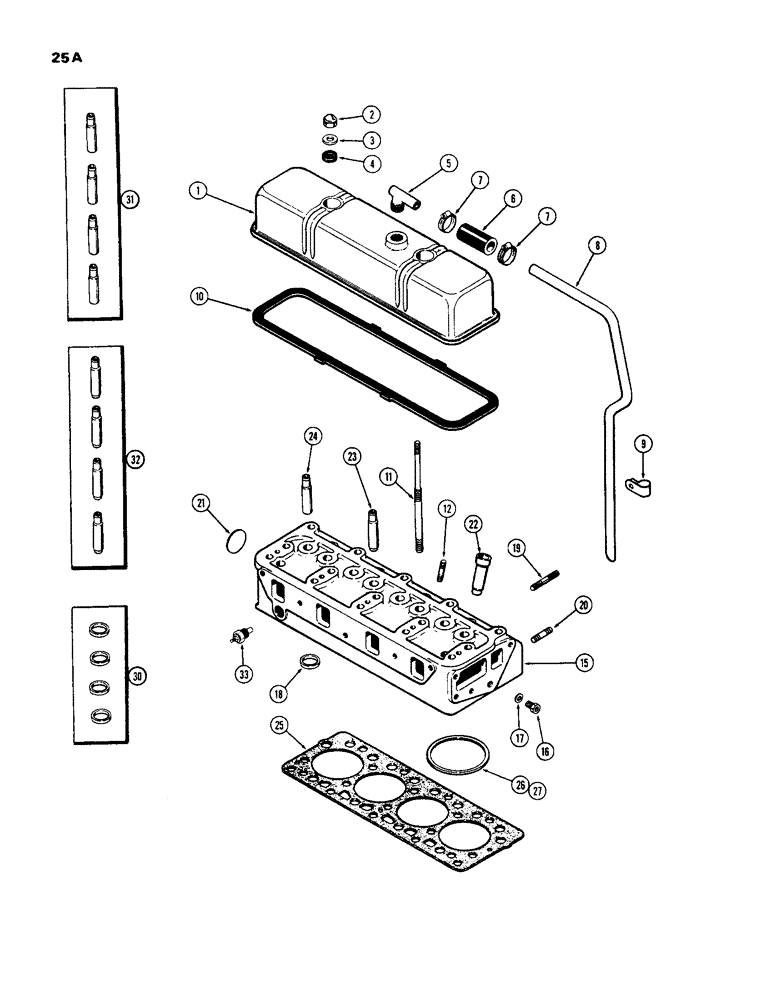

Запчасти Case 450 (025A) - CYLINDER HEAD AND COVER, (188) DIESEL ENGINE, USED PRIOR TO TNE. S.N. 2627377 (01) - ENGINE

1

A36815

COVER

- valve

1шт.

2

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex)

2шт.

3

G49400

WASHER

- cover nut (13/32 x 1-5/32 x 10 Ga.)

2шт.

4

G46867

GROMMET

- (13/32 x 1-1/4 x 3/8" rubber)

2шт.

5

A9155

90 ELBOW

- breather tube

1шт.

6

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Breather tube 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

7

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose (9/16" to 1-1/16")

2шт.

8

D35014

TUBE

- oil breather

1шт.

9

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube

1шт.

10

A43030

GASKET,3.05mm Thk

-, Serial Range: cover-head

1шт.

11

A36903

STUD

- head & cover

2шт.

15

A36880

HEAD ASSY. - cylinder (Casting No. A36876) (Replaces A36764), Includes: Ref. 16 - 24

1шт.

16

G49083

BOLT

- drilled, gear cover

1шт.

17

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER - (1/2" ext. skpf.)

1шт.

18

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 30)

4шт.

19

A35175

STUD

- manifold clamp (3/8' N.C. x 2-7/16")

6шт.

20

A29431

STUD

- manifold & injector (3/8" N.C. x 1-3/4")

12шт.

21

A30036

PLUG

- (1-3/4" expansion)

1шт.

22

G11724

LINER

- fuel injector

4шт.

23

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 32)

4шт.

24

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 31)

4шт.

25

A36877

GASKET

-, Serial Range: head-block

1шт.

26

A36900

RING, PISTON

RING - fire (See ref. 47) (color coded orange)

4шт.

27

A37031

RING

- fire (oversized) (color coded black)

4шт.

30

G11986

KIT

INSERT SET - exhaust valve seat (Set of 4)

1шт.

31

G11946

GUIDE

SET - exhaust valve stem (Set of 4)

1шт.

32

G11945

GUIDE

SET - intake valve stem (Set of 4)

1шт.
