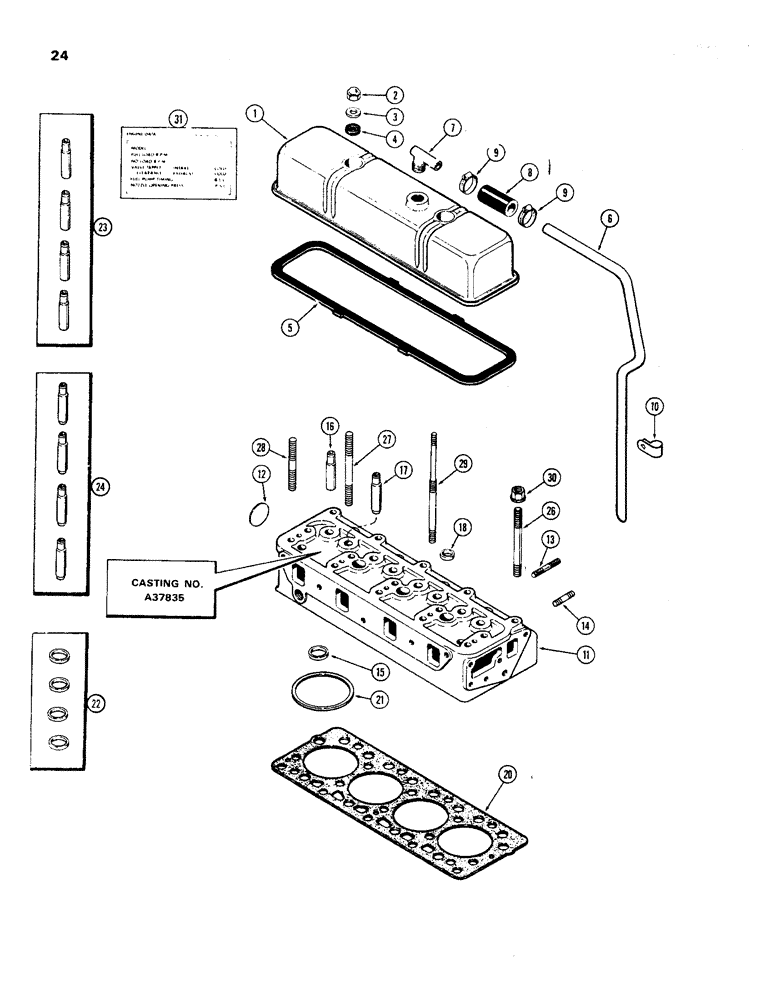

Запчасти Case 450 (024) - CYLINDER HEAD AND COVER, (188) DIESEL ENGINE, 1ST USED ENG. S.N. 2627377 (01) - ENGINE

1

A36815

COVER

- valves & head

1шт.

2

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

3

G49400

WASHER

- cover nut

2шт.

4

G46867

GROMMET

- rubber

2шт.

5

A43030

GASKET,3.05mm Thk

- cover to head (Replaces G46866)

1шт.

6

D35014

TUBE

- breather

1шт.

7

A9155

90 ELBOW

- breather tube

1шт.

8

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Breather tube 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

9

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

1шт.

10

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

-, Serial Range: tube-engine

1шт.

11

A37856

CYLINDER HEAD

HEAD ASSY. - cylinder (Casting #A37835) (Replaces A36764), Includes: Ref. 12 - 18

1шт.

12

A30036

PLUG

- (1-3/4" expansion)

1шт.

13

A35175

STUD

- manifold clamp

6шт.

14

A29431

STUD

- manifold

4шт.

15

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 22)

4шт.

16

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve stem (Order ref. 23)

4шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - intake valve stem (Order ref. 24)

4шт.

18

41-1016

PLUG,Cup, 1"

- cup, cyl. head top

3шт.

20

A36877

GASKET

-, Serial Range: head-block

1шт.

21

A36900

RING, PISTON

RING - fire (Std. w/orange mark)

4шт.

21

A37031

RING

- fire (oversized w/black mark)

4шт.

22

G11986

KIT

INSERTS - exhaust valve seat (Set of 4)

1шт.

23

G11946

GUIDE

S - exhaust valve stem (Set of 4)

1шт.

24

G11945

GUIDE

S - intake valve stem (Set of 4)

1шт.

26

A36902

STUD

- head to block (1/2 x 5-5/8")

11шт.

27

A36905

STUD

- head to block (1/2 x 6-1/8")

2шт.

28

A36904

STUD

- head to block (1/2 x 4")

4шт.

29

A36903

STUD

-, Serial Range: head-cover

2шт.

30

A37030

FLANGE NUT

- flanged, head stud

19шт.

31

321-1372

DECAL - engine data

1шт.
