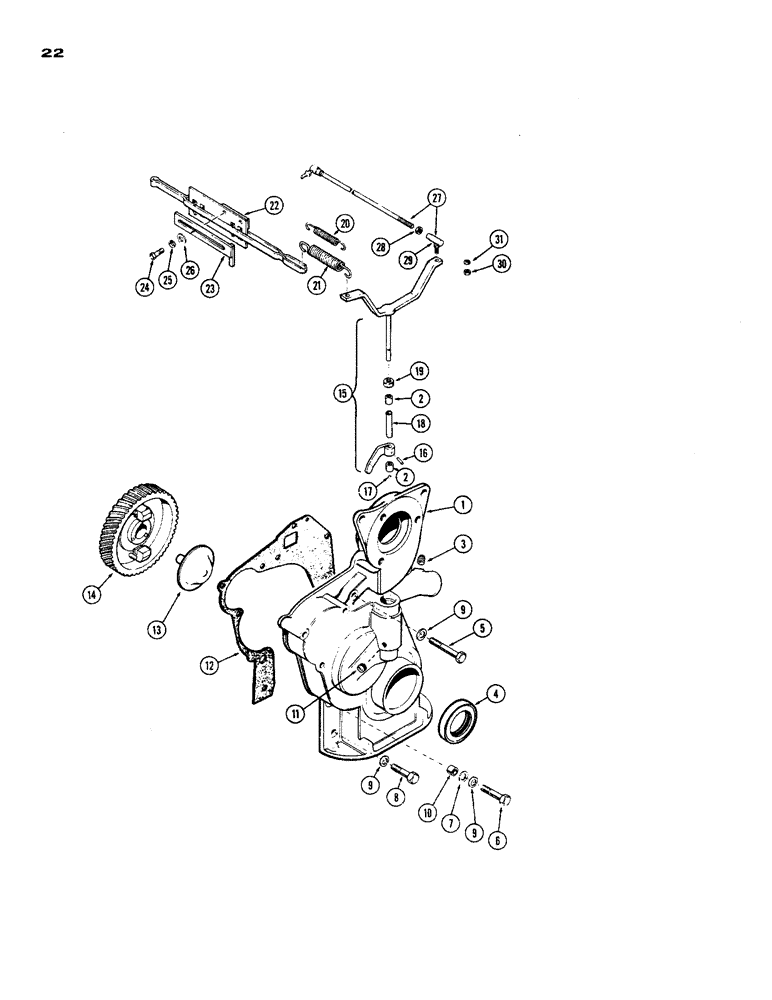

Запчасти Case 450 (022) - TIMING GEAR COVER AND GOVERNOR, (188) SPARK IGNITION ENGINE (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A36822
COVER
ASSY. - timing gear, Includes: Ref. 2 - 4
1шт.
2
A35822
NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W
BEARING - needle, governor shaft
2шт.
3
221-1013
DRAIN PLUG,Sq Hd, 3/8"-18 NPTF
PLUG - (3/8" P.T., sq. hd.)
1шт.
4
A36609
OIL SEAL
- oil, crankshaft, front (2-1/8 x 3 x 1/2")
1шт.
5
13-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
1шт.
5
13-652
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
- (3/8 x 3-1/4" N.C. hex)
1шт.
6
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
7
195-25
WASHER,3/8"
- (13/32 x 13/16 x 1/16")
2шт.
8
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
9
92-6
LOCK WASHER,3/8"
7шт.
10
A29442
RING
- dowel, cover to block (13/32 x 9/16 x 5/8")
2шт.
11
A30016
FITTING
PLUG - (1/8" P.T., sltd. hd.)
1шт.
12
A38227
GASKET
-, Serial Range: cover-block
1шт.
13
A29957
SHAFT
ASSY. - governor
1шт.
14
G37066
GEAR
ASSY. - camshaft (incl. weights)
1шт.
15
A30125
SHAFT
ARM ASSY. - governor control, Includes: Ref. 16
1шт.
16
138-57
LOCK PIN,1/8" x 3/4", Slotted
PIN, 1/8" x 3/4", Slotted
1шт.
17
211-5
BALL,3/16" Dia
- thrust (.) 3/16" Dia
1шт.
18
A30012
SPACER
- thrust, governor shaft (25/64 x 1/2 x 1-11/16")
1шт.
19
A30011
SEAL
- dust, governor shaft (3/8 x 13/16 x 3/8" felt)
1шт.
20
A37005
SPRING
- inner, governor control
1шт.
21
G48511
SPRING
- outer, governor control
1шт.
22
G45793
ROD
- governor control
1шт.
23
G45792
STOP
- governor control
1шт.
24
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
25
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
26
195-521
WASHER,5/16", SAE
- (11/32 x 11/16 x 1/16")
2шт.
27
G45228
ROD
ASSY. - governor arm to carburetor, Includes: Ref. 28 and 29
1шт.
28
25-114
NUT,1/4"-28, G5
- (1/4" N.F. hex)
1шт.
29
A10329
BALL JOINT,1/4" - 28 x 1"
- front
1шт.
30
25-114
NUT,1/4"-28, G5
- (1/4" N.F. hex.)
2шт.
31
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
Выбрано товаров: 32
