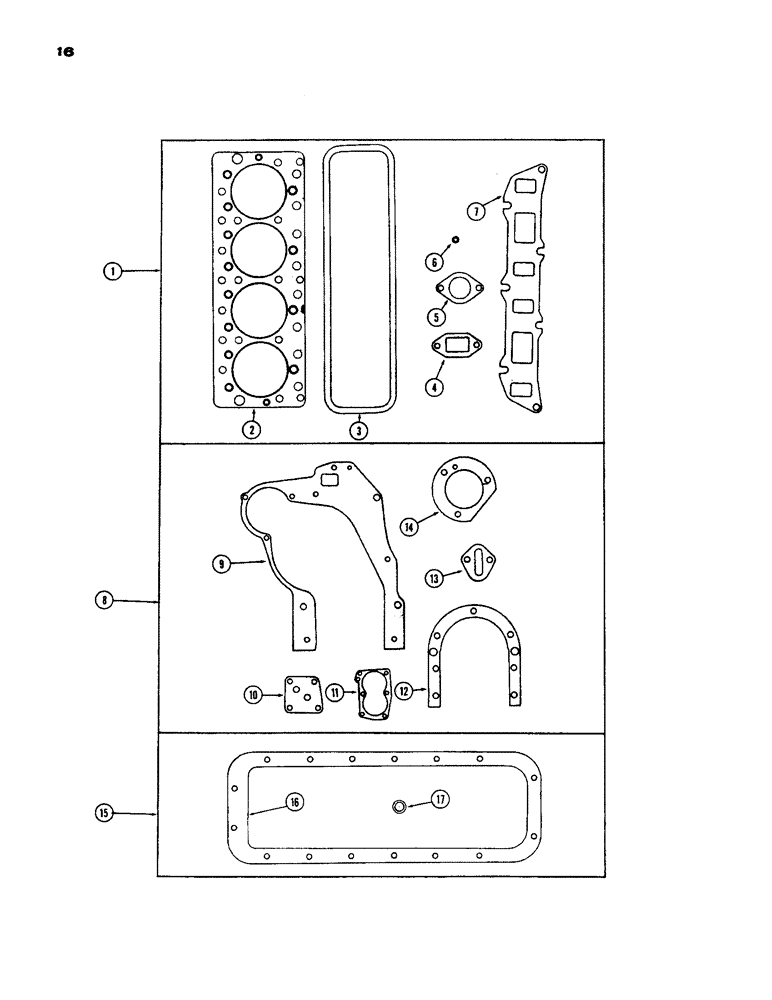

Запчасти Case 450 (016) - ENGINE GASKET KITS, (188) SPARK IGNITION ENGINE (01) - ENGINE

1

A36411

GASKET

VALVE GRIND KIT, Includes: Ref. 2 - 7

1шт.

For complete engine overhaul order 1-A36411, 1-A41466 & 1-A40712 kit.

1шт.

2

A36585

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

3

G46866

GASKET

- valve cover

1шт.

4

A30003

GASKET

- outlet elbow

1шт.

5

G46826

GASKET

- carburetor

1шт.

6

G46851

SEAL

- rubber, intake valve stem

4шт.

7

G46868

MANIFOLD GASKET

-, Serial Range: manifold-head

1шт.

8

A41466

GASKET

CYLINDER BLOCK KIT, Includes: Ref. 9 - 14

1шт.

9

A38227

GASKET

- timing gear cover

1шт.

10

G46854

GASKET

- oil filter bracket

1шт.

11

G46852

GASKET

- oil pump cover

1шт.

12

G46802

GASKET

- crankshaft rear oil seal

1шт.

13

A65561

GASKET

- fuel pump

1шт.

14

G46875

GASKET

- oil pump

1шт.

15

A40712

KIT

GASKET KIT - oil pan, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40712)

1шт.

17

A27927

OIL PAN GASKET SET

- drain plug

1шт.
