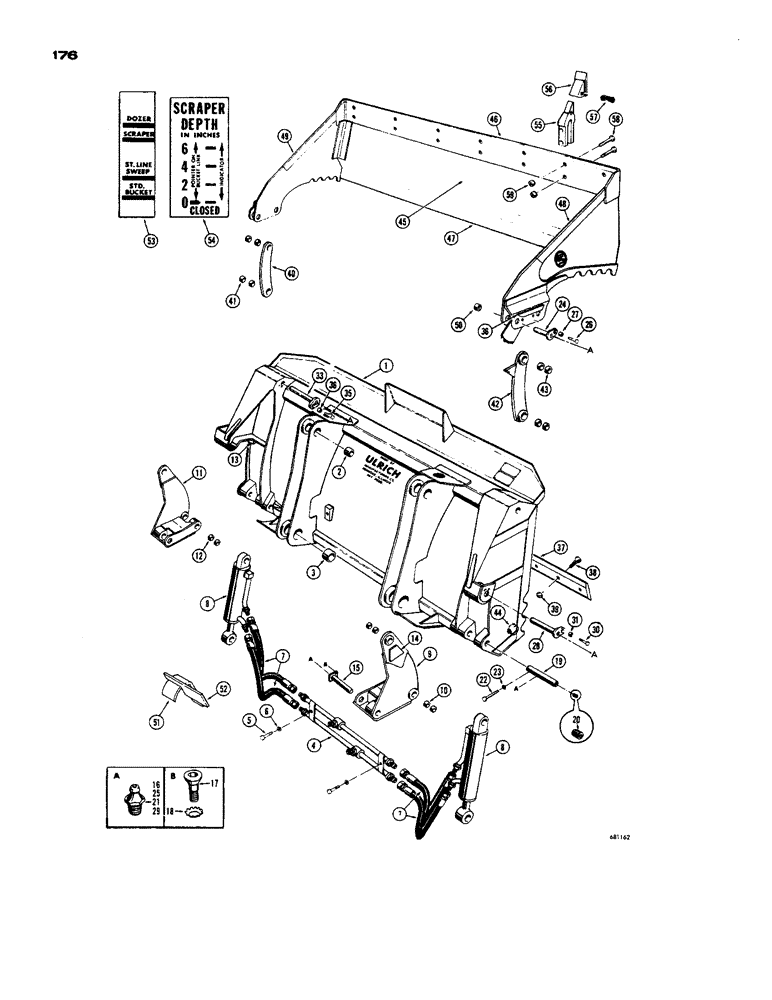

Запчасти Case 450 (176) - ULRICH MULTI-PURPOSE BUCKET (19) - BUCKETS

D42239

ULRICH BUCKET - without teeth, 1 yd. (Machinery item), Includes: Ref. 1 - 44

1шт.

D39173

BLADE ASSEMBLY - bucket, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

2

D39175

BUSHING - upper

4шт.

3

D39176

BUSHING - lower

4шт.

4

D39159

TUBE ASSEMBLY - hydraulic

1шт.

5

164-53

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1 1/2"

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

6

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

7

D39081

HOSE ASSY.

HOSE - hydraulic (19-1/2" long)

4шт.

8

D39096

CYLINDER - hydraulic (See Figure 226 for cylinder)

2шт.

9

D39153

BELL CRANK - R.H., Includes: Ref. 10

1шт.

When D39152 bell crank is exhausted order D42413 bell crank. When D39153 bell crank is exhausted order D42414 bell crank. Also, order one each - D42419 pin, D42422 pin 113-449 HHCS, 92-8 lock washer, D40607 bushing, D39162 stop, 61-636 HHCS, 92-6 lock washer, 221-841 and two 219-1 grease fittings with each bell crank.

1шт.

10

D39101

BUSHING

6шт.

11

D39152

X

BELL CRANK - L.H., Includes: Ref. 12

1шт.

When D39152 bell crank is exhausted order D42413 bell crank. When D39153 bell crank is exhausted order D42414 bell crank. Also, order one each - D42419 pin, D42422 pin 113-449 HHCS, 92-8 lock washer, D40607 bushing, D39162 stop, 61-636 HHCS, 92-6 lock washer, 221-841 and two 219-1 grease fittings with each bell crank.

1шт.

12

D39101

BUSHING

6шт.

13

D39164

STOP BLOCK - clam open

2шт.

14

D39162

STOP BLOCK - clam closed

2шт.

15

D39116

PIN - bell, Serial Range: crank-cylinder

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

17

113-449

HHCS - 1/2" - 13 NC x 3/4"

2шт.

18

D40607

BUSHING - pin

2шт.

19

D39117

PIN - bell, Serial Range: crank-blade

2шт.

20

221-841

PLUG

- hex. socket head (1/4" NPT)

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

22

61-636

HEX SOC SCREW,3/8"-16 x 2 1/4"

HHCS - 3/8" - 16 NC x 2-1/4"

2шт.

23

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

24

D42421

PIN - clevis

4шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

4шт.

26

113-449

HHCS - 1/2" - 13 NC x 3/4"

4шт.

27

D40607

BUSHING - pin

4шт.

28

D39115

PIN -, Serial Range: link-blade

2шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

30

113-449

HHCS - 1/2" - 13 NC x 3/4"

2шт.

31

D40607

BUSHING - pin

2шт.

32

D39114

PIN

-, Serial Range: blade-cylinder

2шт.

33

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

34

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

2шт.

35

D40607

BUSHING - pin

2шт.

36

D42416

LOCK - pin

2шт.

37

D39166

CUTTING EDGE - blade

1шт.

38

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow (1/2" - 13 NC x 1-3/4")

11шт.

39

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

11шт.

40

D42409

LINK - blade to clam (R.H.)

1шт.

41

D42423

BUSHING

- link (1-1/4" I.D. x 1-1/2" O.D.)

4шт.

42

D42408

LINK - blade to clam (L.H.)

1шт.

43

D42423

BUSHING

- link (1-1/4" I.D. x 1-1/2" O.D.)

4шт.

44

D39339

STOP - clam

2шт.

D42410

CLAM ASSEMBLY - bucket, Includes: Ref. 45 - 50

1шт.

45

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

46

D39155

CUTTING EDGE - front

1шт.

47

D39178

CUTTING EDGE - rear

1шт.

48

D39180

WEAR BAR - clam front (R.H.)

1шт.

49

D39179

WEAR BAR - clam front (L.H.)

1шт.

50

D43423

BUSHINGS - clam

8шт.

D39169

INDICATOR ASSEMBLY, Includes: Ref. 51 - 53

1шт.

51

D39072

PLATE - indicator, on loader arm

1шт.

52

D39071

POINTER - indicator plate, on loader arm

1шт.

53

D39168

DECAL - bucket position, on loader arm

1шт.

54

D39064

DECAL - scraper depth, on bucket

1шт.

D40203

TOOTH

ASSEMBLY, bucket optional, Includes: Ref. 55 - 57

7шт.

55

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket optional

1шт.

56

D39093

TOOTH

POINT - tooth, bucket optional

1шт.

57

D39094

BUCKET TOOTH KEY

FLEX PIN, bucket teeth optional

1шт.

58

14-852

BOLT,Hex, 1/2" - 20 x 3-1/4", Gr 5

HHCS - 1/2" - 20 NF x 3-1/4", bucket teeth optional

14шт.

59

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., lock (1/2" - 20 NF), bucket teeth optional

14шт.

59

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., lock (1/2" - 20 NF), bucket teeth optional

14шт.
