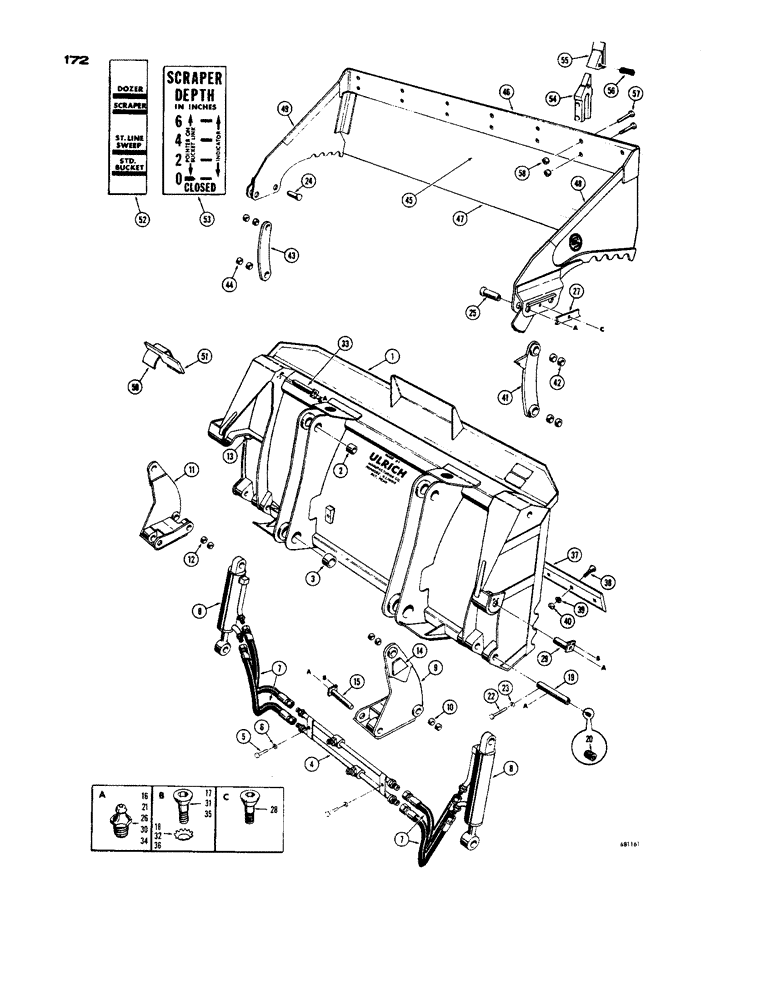

Запчасти Case 450 (172) - ULRICH MULTI-PURPOSE BUCKET (19) - BUCKETS

D35510

ULRICH BUCKET - without teeth (1 yard) Machinery item, Includes: Ref. 1 - 58

1шт.

D39173

BLADE ASSEMBLY - bucket, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

2

D39175

BUSHING - upper

4шт.

3

D39176

BUSHING - lower

4шт.

4

D39159

TUBE ASSEMBLY - control valve to clam cylinder

1шт.

5

164-53

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1 1/2"

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

6

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

7

D39081

HOSE ASSY.

HOSE - tube to clam cylinders (19-1/2" long)

4шт.

8

D39096

CYLINDER - hydraulic (See Figure 226 for cylinder)

2шт.

9

D39153

BELL CRANK - R.H., Includes: Ref. 10

1шт.

When bell crank is exhausted, order D42413 bell crank. When D39153 bell crank is exhausted, order D42414 bell crank, also, order one each - D42419 pin. D42422 pin, 113-449 bolt, 92-8 lock washer, D40607 bushing, D39162 stop, 61-636 bolt, 92-6 lock washer, 221-841 plug and two 219-1 grease fittings with each bell - crank.

1шт.

10

D39101

BUSHING

6шт.

11

D39152

X

BELL CRANK - L.H., Includes: Ref. 12

1шт.

When bell crank is exhausted, order D42413 bell crank. When D39153 bell crank is exhausted, order D42414 bell crank, also, order one each - D42419 pin. D42422 pin, 113-449 bolt, 92-8 lock washer, D40607 bushing, D39162 stop, 61-636 bolt, 92-6 lock washer, 221-841 plug and two 219-1 grease fittings with each bell - crank.

1шт.

12

D39101

BUSHING

6шт.

13

D39164

STOP BLOCK - clam open

2шт.

14

D39162

STOP BLOCK - clam closed

2шт.

15

D39116

PIN - bell, Serial Range: crank-cylinder

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

17

164-40

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"

SCREW - flat head hex. socket (5/16" - 18 NC x 3/4")

4шт.

18

193-76

LOCK WASHER,Ext Csk Tooth, 5/16"

WASHER - Shakeproof lock (5/16")

4шт.

19

D39117

PIN - bell, Serial Range: crank-blade

2шт.

20

221-653

PLUG - pipe, hex. (1/4" NPT)

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

22

61-636

HEX SOC SCREW,3/8"-16 x 2 1/4"

HHCS - 3/8" - 16 NC x 2-1/4"

2шт.

23

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

24

D39165

PIN - bell, Serial Range: crank-clam

2шт.

25

D39165

PIN -, Serial Range: link-clam

2шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

4шт.

27

D39167

RETAINER - pin

2шт.

28

164-99

SCREW - flat head hex. socket (5/16" - 18 NC x 5/8")

2шт.

29

D39115

PIN -, Serial Range: link-blade

2шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

31

164-40

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"

SCREW - flat head hex. socket (5/16" - 18 NC x 3/4")

4шт.

32

193-76

LOCK WASHER,Ext Csk Tooth, 5/16"

WASHER - Shakeproof lock (5/16")

4шт.

33

D39114

PIN

-, Serial Range: blade-cylinder

2шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

35

164-40

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"

SCREW - flat head hex. socket (5/16" - 18 NC x 3/4")

4шт.

36

193-76

LOCK WASHER,Ext Csk Tooth, 5/16"

WASHER - Shakeproof lock (5/16")

4шт.

37

D39166

CUTTING EDGE - blade

1шт.

38

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow (1/2" - 13 NC x 1-3/4")

11шт.

39

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

11шт.

40

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

11шт.

41

D39183

LINK - blade to clam (R.H.), Includes: Ref. 42

1шт.

When D39183 link is exhausted, use D42409 link. When D39161 link is exhausted, use D42408 link. See Figure 176 for these links and their bushing sizes.

1шт.

42

D39101

BUSHING - 1-1/4" I.D. x 1-3/4" O.D.

4шт.

43

D39161

LINK - blade to clam (L.H.), Includes: Ref. 44

1шт.

When D39183 link is exhausted, use D42409 link. When D39161 link is exhausted, use D42408 link. See Figure 176 for these links and their bushing sizes.

1шт.

44

D39101

BUSHING - 1-1/4" I.D. x 1-1/2" O.D.

4шт.

D39181

X

CLAM ASSEMBLY - bucket , Includes: Ref. 45 - 49

1шт.

When D39181 bucket clam assembly is exhausted, order D42411 bucket clam assembly and four each - D42421 pin, 92-8 lock washer, 113-449 capscrew and D40607 bushing.

1шт.

45

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

46

D39155

CUTTING EDGE - front

1шт.

47

D39178

CUTTING EDGE - rear

1шт.

48

D39180

WEAR BAR - clam front (R.H.)

1шт.

49

D39179

WEAR BAR - clam front (L.H.)

1шт.

D39169

INDICATOR ASSEMBLY, Includes: Ref. 50 - 52

1шт.

50

D39072

PLATE - indicator, on loader arm

1шт.

51

D39071

POINTER - indicator plate, on loader arm

1шт.

52

D39168

DECAL - indicator, bucket position (On loader arm)

1шт.

53

D39064

DECAL - scraper depth

1шт.

D40203

TOOTH

ASSEMBLY, Includes: Ref. 54 - 56

7шт.

54

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket optional

1шт.

55

D39093

TOOTH

POINT - tooth, bucket optional

1шт.

56

D39094

BUCKET TOOTH KEY

FLEX PIN, bucket teeth optional

1шт.

57

14-852

BOLT,Hex, 1/2" - 20 x 3-1/4", Gr 5

HHCS - 1/2" - 20 NF x 3-1/4", bucket teeth optional

14шт.

58

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., lock (1/2" - 20 NF), bucket teeth optional

14шт.
