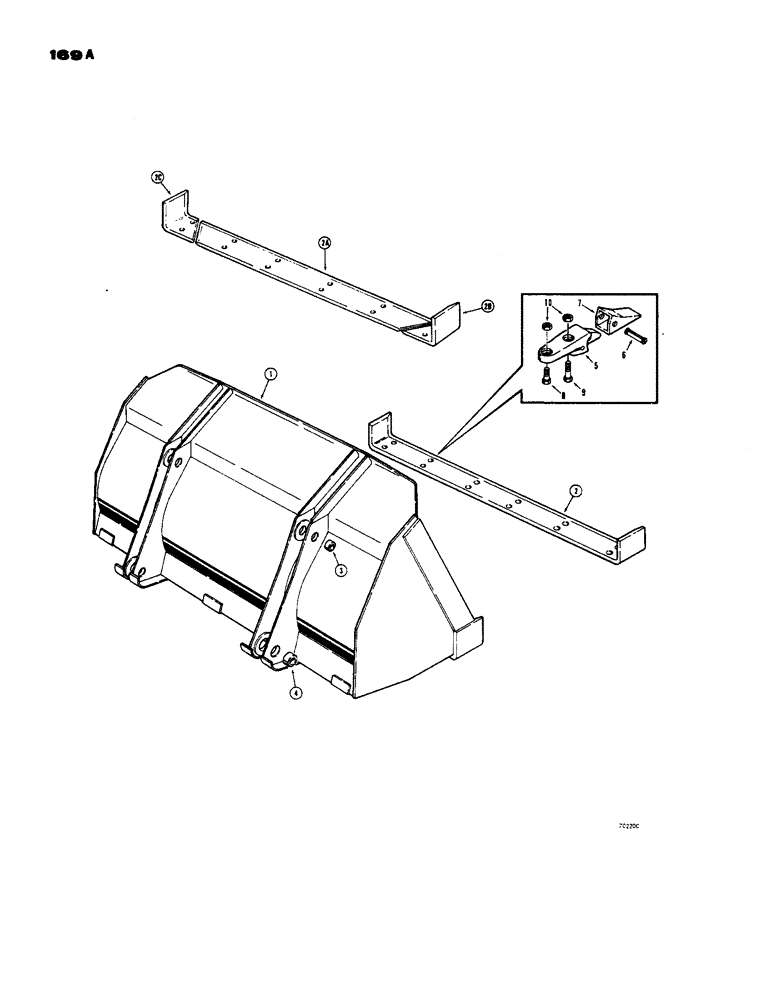

Запчасти Case 450 (169A) - D49578 LOADER BUCKET, 1 CU. YD. BUCKET WITH WELD ON CUTTING (19) - BUCKETS

D49578

BUCKET - loader, complete (Machinery item), Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

D51886

EDGE, CUTTING

EDGE - cutting, 1 piece

1шт.

2a

D49585

BLADE

EDGE - cutting, center

1шт.

2b

D49583

EDGE - cutting, R.H.

1шт.

2c

D49584

EDGE - cutting, L.H.

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- bucket mounting (Upper)

4шт.

4

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- bucket mounting (Lower)

4шт.

D50780

TOOTH

ASSEMBLY - complete, bucket optional, Includes: Ref. 5 - 7

6шт.

5

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket optional

1шт.

6

D39094

BUCKET TOOTH KEY

PIN - flex, bucket teeth optional

1шт.

7

D51750

BUCKET TOOTH POINT

POINT - tooth, bucket optional

1шт.

8

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

HHCS - 5/8" - 11 NC x 2-1/4", bucket teeth optional

6шт.

9

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

HHCS - 5/8" - 11 NC x 2-1/2", bucket teeth optional

6шт.

10

25-1010

NUT,5/8"-11, G5

Bucket teeth optional 5/8"-11, G5

12шт.
