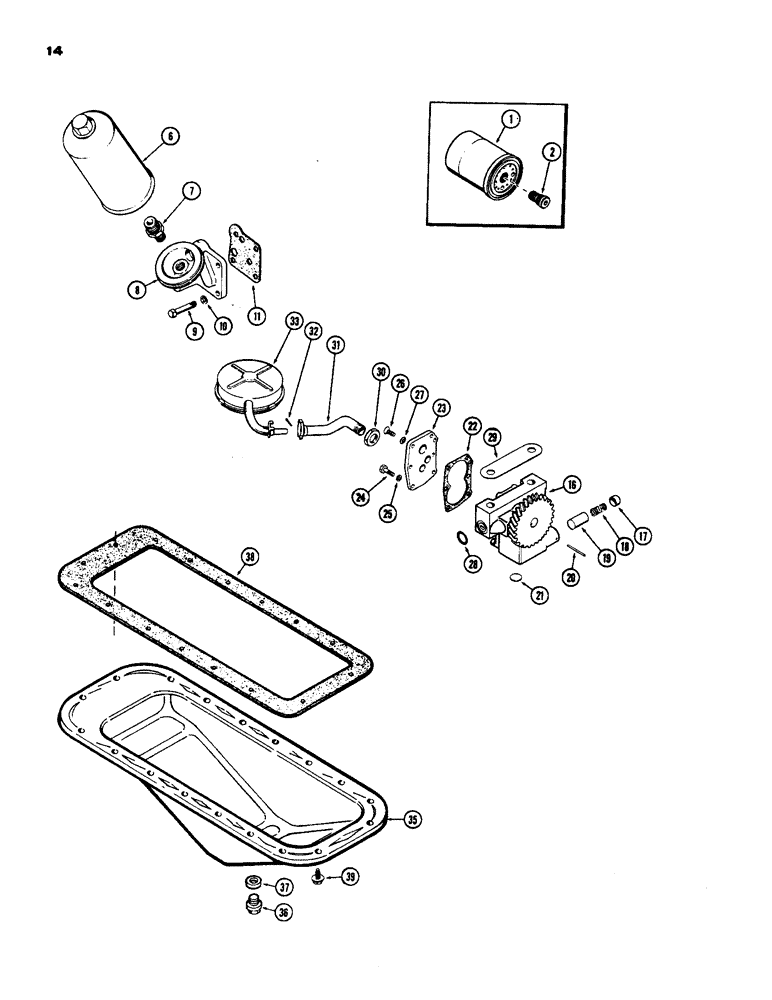

Запчасти Case 450 (014) - OIL FILTER, (188) SPARK IGNITION ENGINE, FLANGE MOUNTED (01) - ENGINE

1

A37189

FILTER, ELEMENT

FILTER ASSY. - oil

1шт.

2

A153552

ADAPTER

-, Serial Range: filter-block

1шт.

6

A37189

FILTER, ELEMENT

FILTER ASSY. - oil, bracket mounted

1шт.

7

A35557

ADAPTER

- filter to bracket, mounted

1шт.

8

A36597

BRACKET - filter mounting

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Bracket mounted Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

9

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Bracket mounted Hex, 5/16"-18 x 2 1/4", G5

1шт.

10

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , Bracket mounted Int Tooth, 5/16"

4шт.

11

G46854

GASKET

- filter bracket, mounted

1шт.

16

G11844

PUMP, ENGINE OIL

PUMP ASSY. - oil, Includes: Ref. 17 - 27

1шт.

17

A29260

RETAINER

- relief spring, oil pump

1шт.

18

G48513

VALVE SPRING

SPRING - relief valve, oil pump

1шт.

19

A155144

VALVE, PRESSURE RELI

- relief, oil pump

1шт.

20

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, , Oil pump 1/8" x 1 1/8", Slotted

1шт.

21

41-102

PLUG,Exp, 1/2"

- body (1/2" exp.), oil pump

2шт.

22

G46852

GASKET

- pump cover, oil

1шт.

23

NSS

NOT SOLD SEPARAT

COVER - pump body, oil

1шт.

24

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Oil pump Hex, 1/4"-20 x 1 1/4", G5

1шт.

24

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Oil pump Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Oil pump 1/4"

4шт.

26

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- mach., 1/4 x 5/8" flat hd., oil pump

2шт.

27

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Oil pump Ext Csk Tooth, 1/4"

2шт.

28

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port (3/4 x 13/16 x 3/32"), pump

1шт.

29

G11337

SHIM,.002" Thk

Pump to block, Oil .002" Thk

2шт.

29

G11338

SHIM,.005" Thk

Pump to block, Oil .005" Thk

1шт.

30

223-207

LOCK NUT

NUT - lock, pipe to pump, oil

1шт.

31

A39035

TUBE

PIPE - suction (Replaces G45766), oil pump

1шт.

32

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.

33

A39036

FLOAT

ASSY. - (incl. screen) (Replaces A30126), oil pump

1шт.

35

A36782

PAN

ASSY. - oil, Includes: Ref. 36 and 37

1шт.

36

A14280

PLUG

- drain, oil pan

1шт.

37

A58608

GASKET

- drain plug (3/4' I.D. x 1" O.D. nylon), oil pan

1шт.

38

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40712)

1шт.

39

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (includes lockwasher)

18шт.
