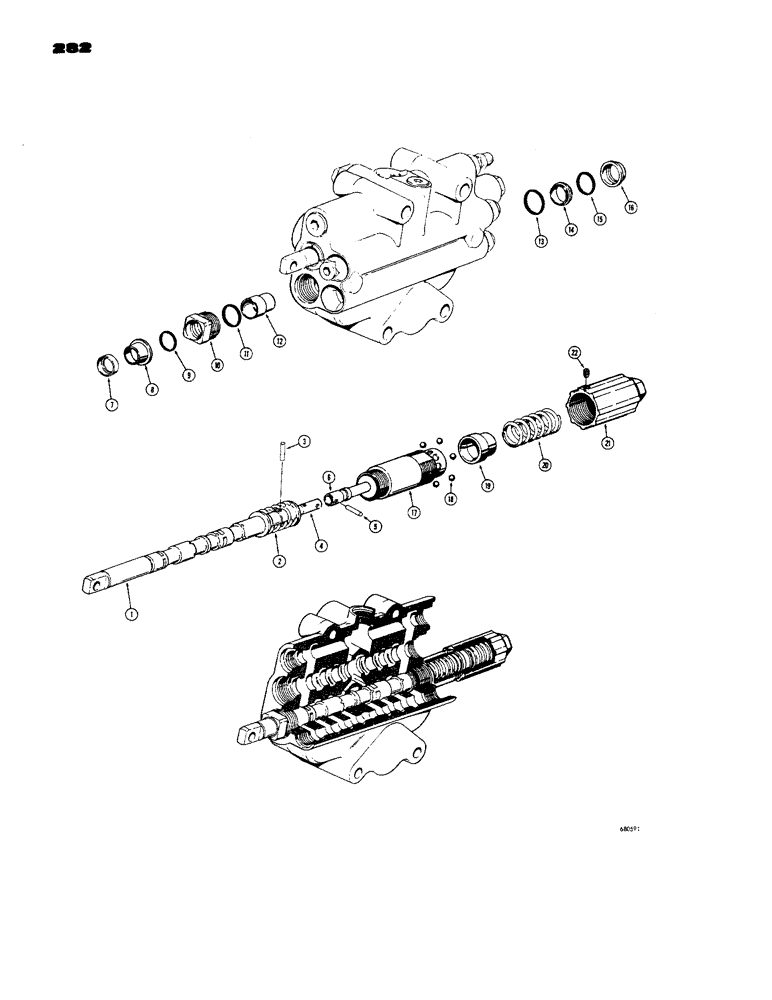

Запчасти Case 450 (282) - 4 POSITION SPOOLS (07) - HYDRAULIC SYSTEM

D37054

SPOOL

ASSEMBLY - four position (Color code - black or letter code - W) .73700" to .73709", Includes: Ref. 1 - 22

1шт.

D37055

SPOOL

ASSEMBLY - four position (Color code - blue or letter code - X) .73710" to .73719", Includes: Ref. 1 - 22

1шт.

D37056

SPOOL

ASSEMBLY - four position (Color code - yellow or letter code - Y) .73720" to .73729", Includes: Ref. 1 - 22

1шт.

D37057

SPOOL ASSEMBLY - four position (Color code - green or letter code - Z) .73730" to .73740", Includes: Ref. 1 - 22

1шт.

D37058

KIT

- D37054 spool assembly, Includes: Ref. 1 - 6

1шт.

D37059

KIT - D37055 spool assembly, Includes: Ref. 1 - 6

1шт.

D37060

SPOOL

KIT - D37056 spool assembly, Includes: Ref. 1 - 6

1шт.

D37061

KIT

- D37057 spool assembly, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY - float

1шт.

2

A16882

SPRING

- centering

1шт.

3

138-2013

PIN,1/8" x 9/16", Coiled

1/8" x 5/8", Coiled, barrel link, front

1шт.

4

D33858

LINK

- detent barrel

1шт.

5

138-2012

PIN,1/8" x 1/2", Coiled

Barrel link, rear 1/8" x 1/2", Coiled

1шт.

6

D33859

SCREW

BARREL - detent

1шт.

7

D37153

RETAINER

- wiper ring

1шт.

8

A14527

SCRAPER

RING - wiper

1шт.

9

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O"ring, gland (Front)

1шт.

10

D37152

RETAINER

GLAND - spool

1шт.

11

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

SEAL - "O"ring, gland (Rear)

1шт.

12

D37076

SLEEVE

- spool

1шт.

13

A16877

SEAL

- "O"ring, outer

1шт.

14

D33857

RETAINER

- "O"ring, front

1шт.

15

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O"ring, inner

1шт.

16

D33856

RETAINER

- "O"ring, rear

1шт.

17

D41797

CAP AND SLEEVE ASSEMBLY - spool

1шт.

18

211-5

BALL,3/16" Dia

- steel (.) 3/16" Dia

6шт.

19

A16852

RETAINER

- ball

1шт.

20

A16853

VALVE SPRING

SPRING - detent

1шт.

21

A16884

CYLINDER END CAP

CAP - rear

1шт.

22

178-28

SET SCREW,Hex Soc, 1/4"-20 x 1/2"

SCREW - set, socket head (1/4" - 20 NC x 1/2")

1шт.
