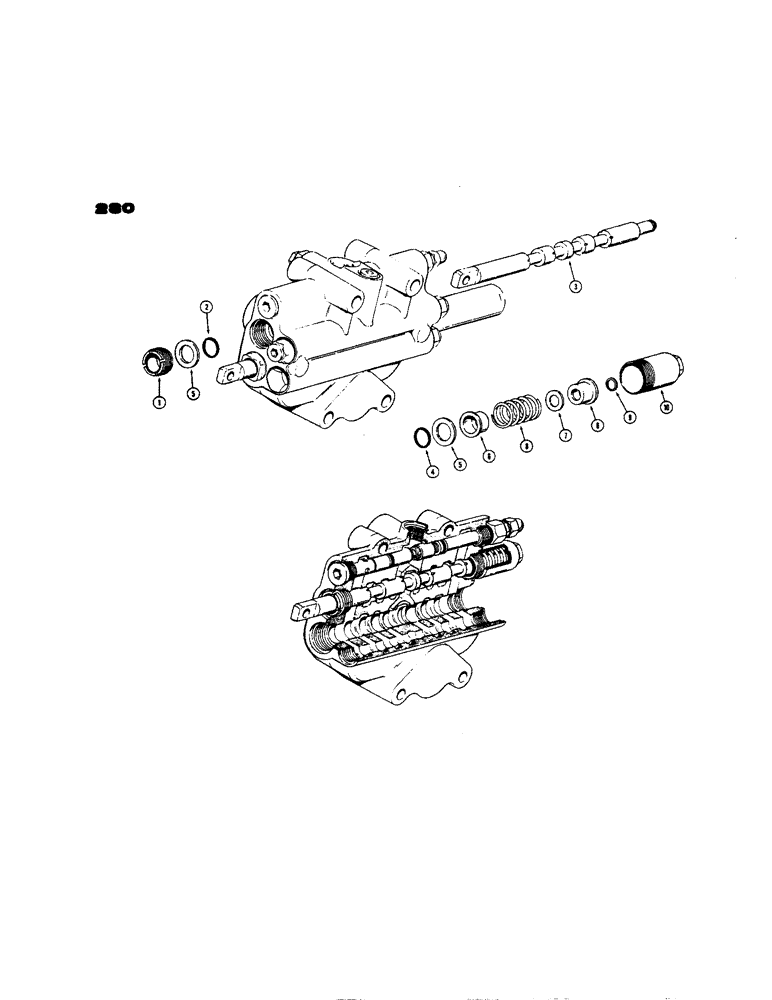

Запчасти Case 450 (280) - 3 POSITION SPOOLS - DOUBLE ACTING (07) - HYDRAULIC SYSTEM

D37050

SPOOL

ASSEMBLY - three position (Color code - black or letter code - W) .73700" to .73709", Includes: Ref. 1 - 10

1шт.

D37051

SPOOL

ASSEMBLY - three position (Color code - blue or letter code - X) .73710" to .73719", Includes: Ref. 1 - 10

1шт.

D37052

SPOOL

ASSEMBLY - three position (Color code - yellow or letter code - Y) .73720" to .73729", Includes: Ref. 1 - 10

1шт.

D37053

SPOOL

ASSEMBLY - three position (Color code - green or letter code - Z) .73730" to .73740", Includes: Ref. 1 - 10

1шт.

1

A25281

X

GLAND AND WIPER - for service use L30744 gland and wiper and A14535 retainer

1шт.

L30744

GLAND

AND WIPER

1шт.

2

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

4

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

5

A14535

RETAINER

- seal

2шт.

6

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

7

A25286

WASHER

- special

1шт.

8

A14534

SPRING

- spool return

1шт.

9

A27020

RING

SNAP RING - spring retainer

1шт.

10

A14529

CAP

- spool

1шт.
