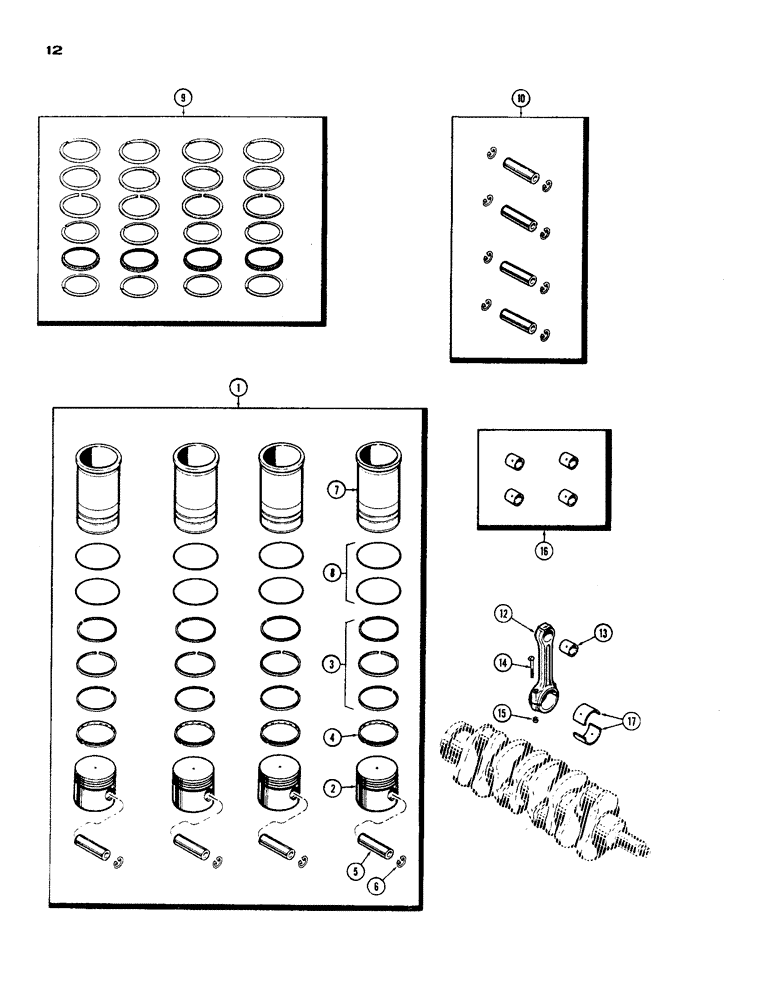

Запчасти Case 450 (012) - PISTON ASSEMBLY AND CONNECTING RODS, (188) SPARK IGNITION ENGINE (01) - ENGINE

1

A36031

SLEEVE

PISTON & SLEEVE SET - (set of 4), Includes: Ref. 2 - 8

1шт.

2

G2092

PISTON

4шт.

3

G4807

RING

- compression (1st & 2nd Groove) (See ref.9)

12шт.

4

G4809

RING

- oil control (3rd Groove) (see ref .9)

4шт.

5

NSS

NOT SOLD SEPARAT

PIN - piston (Order A36030)

4шт.

6

A26915

RING, SNAP

RING - piston pin retaining

8шт.

7

G2090

SLEEVE

- piston (cylinder liner)

4шт.

8

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

8шт.

9

G11999

RING

SET - piston re-ring

1шт.

10

A36030

KIT

PIN SET - piston (set of 4 pins & 8 rings)

1шт.

12

G11172

STEM

ROD ASSY - connecting, Includes: Ref. 13 - 15

4шт.

13

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order G11922)

1шт.

14

G11701

BOLT

- conn. rod cap

2шт.

15

G49060

NUT

- cap bolt

2шт.

16

G11922

BUSHING

SET - piston pin (Set of 4)

1шт.

17

A36500

SEAL

INSERT ASSY. - conn. rod brg. (std.)

4шт.

17

A36501

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.002")

4шт.

17

A36502

LINING

INSERT ASSY. - conn. rod brg. (-.010")

4шт.

17

A36503

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.020")

4шт.

17

A36504

KIT

INSERT ASSY. - conn. rod brg. (-.030")

4шт.
