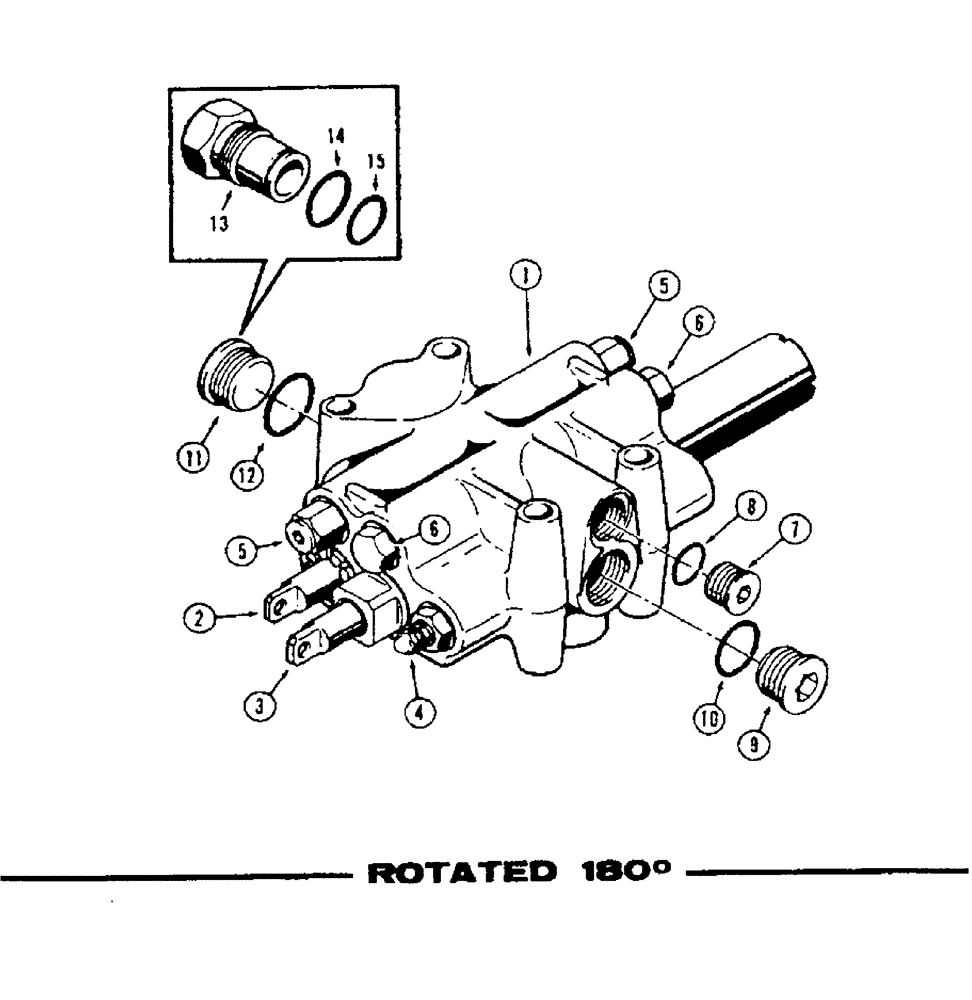

Запчасти Case 450 (268) - D45038 EQUIPMENT CONTROL VALVE (2 SPOOL) (07) - HYDRAULIC SYSTEM

1

D45038

VALVE

- equipment control valve, two spool (Service replacement for D35214 valve), Includes: Ref. 2 - 12

1шт.

2

D37050

SPOOL

- three position (Parts list Figure 280)

1шт.

D37051

SPOOL

- three position (Parts list Figure 280)

1шт.

D37052

SPOOL

- three position (Parts list Figure 280)

1шт.

D37053

SPOOL

- three position (Parts list Figure 280)

1шт.

3

D46024

SPOOL

- four position (Parts list Figure 284)

1шт.

D46025

SPOOL

- four position (Parts list Figure 284)

1шт.

N6592

VALVE

SPOOL - four position (Parts list Figure 284)

1шт.

D46027

SPOOL

- four position (Parts list Figure 284)

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list Figure 280 (1))

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - secondary relief (Parts list Figure 286)

2шт.

6

NSS

NOT SOLD SEPARAT

VALVE - check (Parts list Figure 288)

2шт.

7

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port, Incl Ref 8 Hex Soc, 3/4"-16 ORB

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

9

9841223

PLUG,1-1/16" - 12 ORB

Valve port, Incl. Ref. 10 Hex Soc, 1 1/16"-12 ORB

1шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

11

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Valve port, Incl. Ref 12 Hex Soc, 1 5/16"-12 ORB

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

13

D35401

FITTING

- carryover (Backhoe Models only), Includes: Ref. 14 and 15

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring (Large)

1шт.

15

A25590

O-RING,15" ID x 1 1" OD x 3/32"

SEAL - "O"ring (Small)

1шт.
