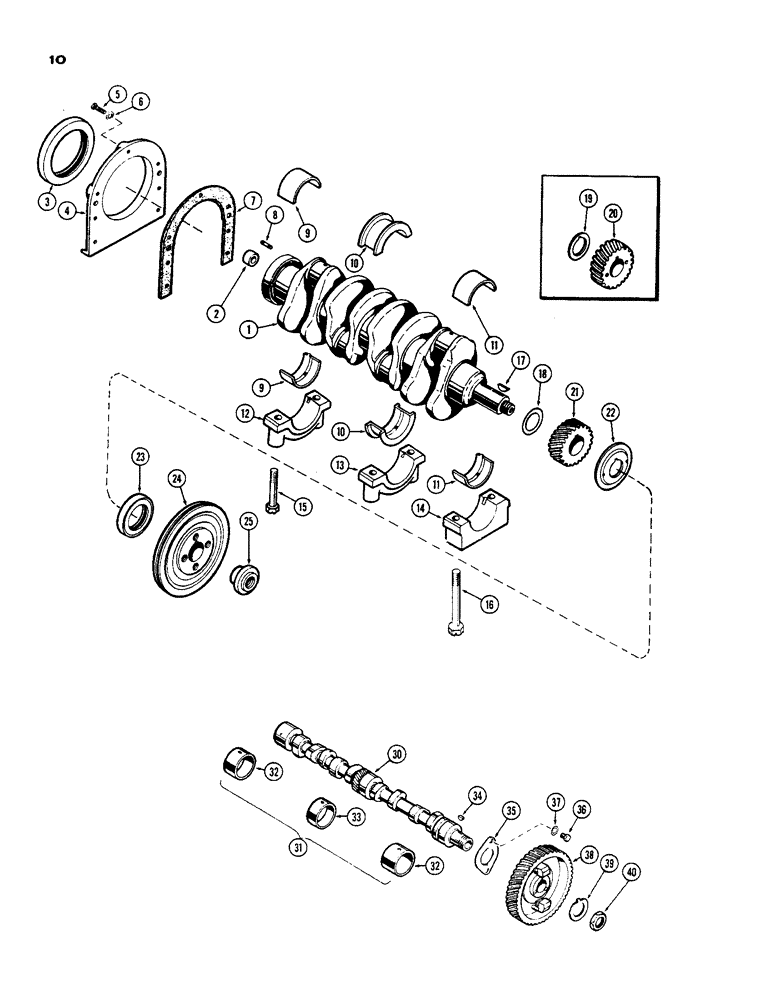

Запчасти Case 450 (010) - CRANKSHAFT, (188) SPARK IGNITION ENGINE (01) - ENGINE

1

A39150

CRANKSHAFT

ASSY., Includes: Ref. 2

1шт.

2

A30024

BUSHING,15.98mm ID x 20.73mm OD x 22.23mm L

- pilot

1шт.

3

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, crankshaft, rear (4 x 5 x 1/2")

1шт.

4

A38390

RETAINER

- oil seal

1шт.

5

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- (1/4" x 3/4" N.C. hex.)

4шт.

5

113-26

BOLT

- (1/4 x 1" N.C. hex )

3шт.

6

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

7

A39188

GASKET

- retainer, rear oil seal

1шт.

8

A29434

STUD

- flywheel to crankshaft (7/16" N.F. x 1-3/4")

4шт.

9

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

INSERT ASSY. - main brg., rear (std.)

1шт.

9

A36496

LINING

INSERT ASSY. - main brg., rear (-.002")

1шт.

9

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

INSERT ASSY. - main brg., rear (-.010")

1шт.

9

A36498

KIT

INSERT ASSY. - main brg., rear (-.020")

1шт.

9

A36499

BEARING LINER

INSERT ASSY. - main brg., rear (-.030")

1шт.

10

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

INSERT ASSY. - main brg., center (std.)

1шт.

10

A36491

LINING

INSERT ASSY. - main brg., center (-.002")

1шт.

10

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

INSERT ASSY. - main brg., center (-.010")

1шт.

10

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

INSERT ASSY. - main brg., center (-.020")

1шт.

10

A36494

LINING

INSERT ASSY. - main brg., center (-.030")

1шт.

11

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

INSERT ASSY. - main brg., front (std.)

1шт.

11

A36481

LINING

INSERT ASSY. - main brg., front (-.002")

1шт.

11

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

INSERT ASSY. - main brg., front (-.010")

1шт.

11

A36483

LINING

INSERT ASSY. - main brg., front (-.020")

1шт.

11

A36484

LINING

INSERT ASSY. - main brg., front (-.030")

1шт.

12

G2062

CAP - rear bearing

1шт.

13

G2060

CAP - center bearing

1шт.

14

G2059

CAP - front bearing

1шт.

15

G49038

BOLT - bearing cap (1/2" x 3-3/8" N.C. hex., spec.)

4шт.

16

G49059

BOLT

- front bearing cap (1/2 x 4-3/4" N.C. hex., spec.)

2шт.

17

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft (Hi-Pro #808)

2шт.

18

A29293

SHIM,.010" Thk

Crankshaft thrust .010" Thk

1шт.

19

A29294

BUSHING

SPACER - crankshaft thrust (use w/A29263 gear only)

1шт.

20

A29263

GEAR

- crankshaft (1-1/16" wide) (Order A39288)

1шт.

21

A39288

GEAR

- crankshaft (Replaces A29263 & A29294)

1шт.

22

A29259

SLINGER

- oil

1шт.

23

A36609

OIL SEAL

- oil, crankshaft, front (2-1/8 x 1/2")

1шт.

24

G11342

X

PULLEY - fan & generator belt drive

1шт.

25

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

30

G2091

CAMSHAFT

1шт.

31

A41229

BUSHING

SET - camshaft, pre-sized (Replaces A36409), Includes: Ref. 32 and 33

1шт.

32

NSS

NOT SOLD SEPARAT

BUSHING - front & rear (1-7/32" wide), camshaft

2шт.

33

NSS

NOT SOLD SEPARAT

BUSHING - center (1/2" wide), camshaft

1шт.

34

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Gear to camshaft #6, 5/32" x 5/8"

1шт.

35

A29290

PLATE

- thrust, camshaft

1шт.

36

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

BOLT - thrust plate, camshaft

2шт.

37

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, , Camshaft Ext Tooth, 5/16"

2шт.

38

G37066

GEAR

- camshaft

1шт.

39

A29438

LOCK NUT

WASHER - tab, camshaft nut lock

1шт.

40

A30063

NUT

- camshaft gear ret.

1шт.
