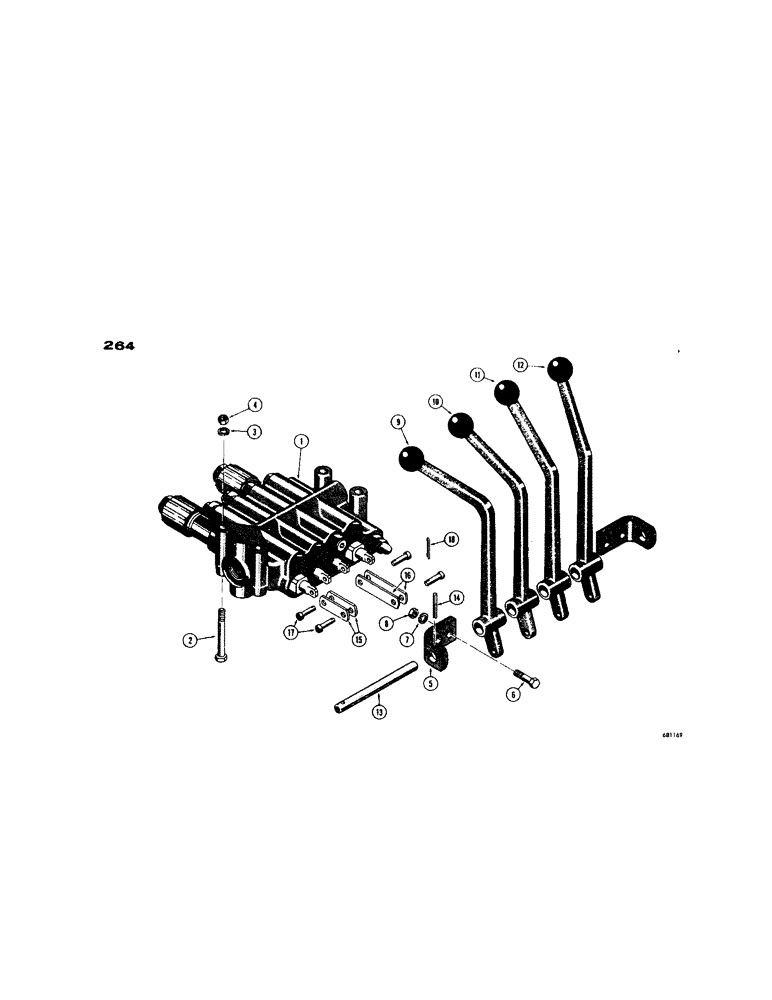

Запчасти Case 450 (264) - 4 SPOOL VALVES AND LEVERS (07) - HYDRAULIC SYSTEM

1

D36185

VALVE - four spool (Use on Power Angle-Tilt Dozer Models with Ripper) Parts list Figure 276 (When stock is exhausted, use D45046 valve for service)

1шт.

D45046

HYDRAULIC VALVE

VALVE - four spool (Use on Power Angle-Tilt Dozer Models with Ripper) Parts list Figure 278

1шт.

D36085

HYDRAULIC VALVE

VALVE - four spool (Use on Loader Models with Ripper, Pull Behind, Clam Type Bucket or Logging Attachment) Parts list Figure 274 (1) (When stock is exhausted, use D45476 valve for service)

1шт.

D45476

VALVE, CHECK

VALVE - four spool (Use on Loader Models with Ripper, Pull Behind, Clam Type Bucket or Logging Attachments) Parts list Figure 278

1шт.

2

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8" - 16 NC x 4-1/4"

4шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

5

D35396

BRACKET

- valve lever mounting

2шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

7

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

9

D36086

LEVER

- valve control, R.H.

1шт.

10

D35395

LEVER

- valve control, center (R.H.)

1шт.

11

D35393

LEVER - valve control, center (L.H.)

1шт.

12

D35394

LEVER - valve control, L.H.

1шт.

13

D36087

SHAFT

- pivot

1шт.

14

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

15

D34624

LINK

- short

4шт.

16

D35397

LINK

- long

4шт.

17

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Link 5/16" x .940"

8шт.

18

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

8шт.
