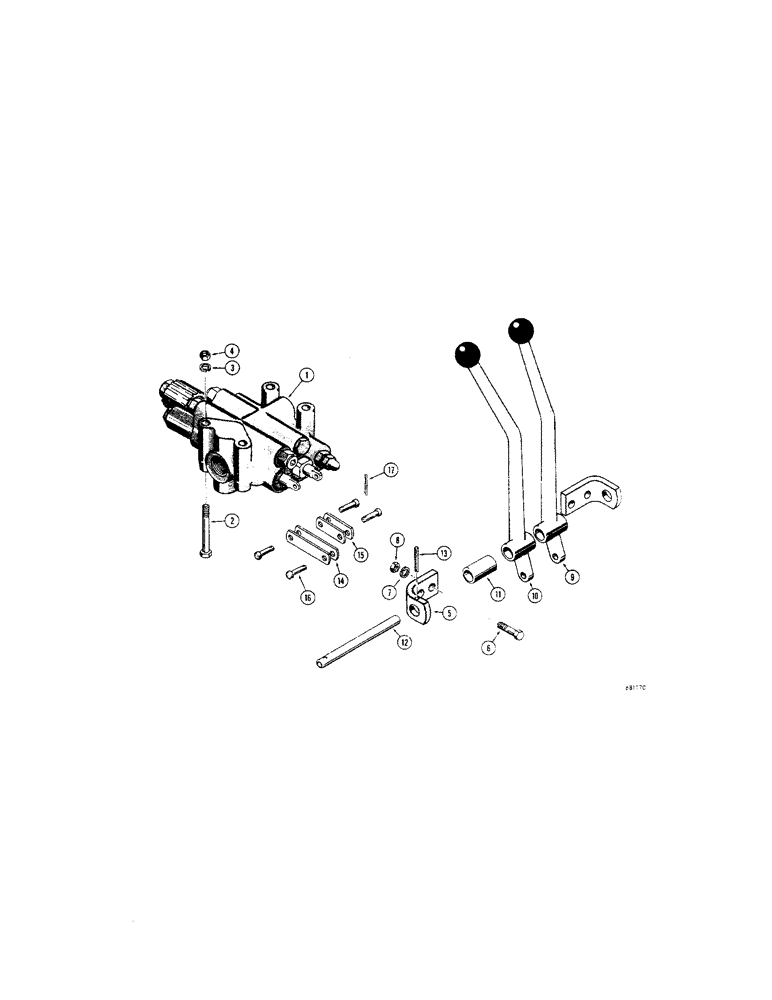

Запчасти Case 450 (264[1]) - 2 SPOOL VALVES AND LEVERS (07) - HYDRAULIC SYSTEM

1

D35214

VALVE - two spool (Use on Power Angling Dozer Models with or without Backhoe and Drawbar models) Parts list Figure 266 (When stock is exhausted, use D45038 valve for service)

1шт.

D45038

VALVE

- two spool (Use on Power Angling Dozer Models with or without backhoe and Drawbar Models) Parts list Figure 268

1шт.

D35212

VALVE

- two spool (Use on Loader Models with Counterweight or Backhoe) Parts list Figure 266 (When stock is exhausted, use D45039 valve for service)

1шт.

D45039

VALVE

- two spool (Use on Loader Models with Counterweight or Backhoe) Parts list Figure 268

1шт.

2

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8" - 16 NC x 4-1/4"

4шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

5

D35396

BRACKET

- valve lever mounting

2шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

HHCS - 3/8" - 16 NC x 1/2"

4шт.

7

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

9

D35394

LEVER - valve control (L.H.)

1шт.

10

D35393

LEVER - valve control (R.H.)

1шт.

11

D33252

SPACER - control lever

1шт.

12

D33251

SHAFT

- pivot

1шт.

13

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

14

D35397

LINK

- long

2шт.

15

D34624

LINK

- short

2шт.

16

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Link 5/16" x .940"

4шт.

17

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

4шт.
