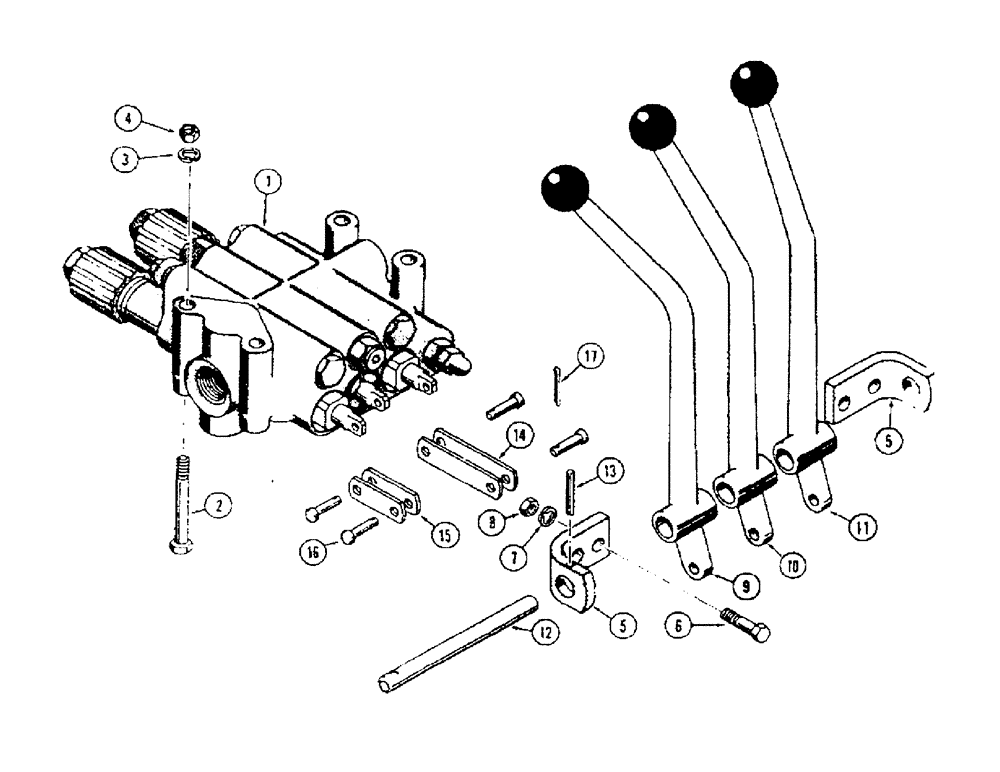

Запчасти Case 450 (262) - 3 SPOOL VALVES AND LEVERS (07) - HYDRAULIC SYSTEM

1

D35215

VALVE - three spool (Use on Power Angling Dozer Models with Ripper) Parts list Figure 270 (1) (When stock is exhausted, use D45042 valve for service)

1шт.

D45042

VALVE - three spool (Use on Power Angling Dozer Models with Ripper) Parts list Figure 272 (1)

1шт.

D35213

VALVE - three spool (Use on Loader Models, with Ripper, Pull Behind, Clam Type Bucket, Counterweight, Backhoe or Logging Attachment) Parts list Figure 270 (When stock is exhausted, use D45041 valve for service)

1шт.

D45041

LOCK VALVE

VALVE - three spool (Use on Loader Models with, Ripper, Pull Behind, Clam Type Bucket, Counterweight, Backhoe or Logging Attachment) Parts list Figure 272

1шт.

2

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8" - 16 NC x 4-1/4"

4шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

5

D35396

BRACKET

- valve lever mounting

2шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

7

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

9

D35395

LEVER

- valve control (R.H.)

1шт.

10

D35393

LEVER - valve control (Center)

1шт.

11

D35394

LEVER - valve control (L.H.)

1шт.

12

D33251

SHAFT

- pivot

1шт.

13

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

14

D35397

LINK

- long

2шт.

15

D34624

LINK

- short

4шт.

16

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Link 5/16" x .940"

6шт.

17

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

6шт.
