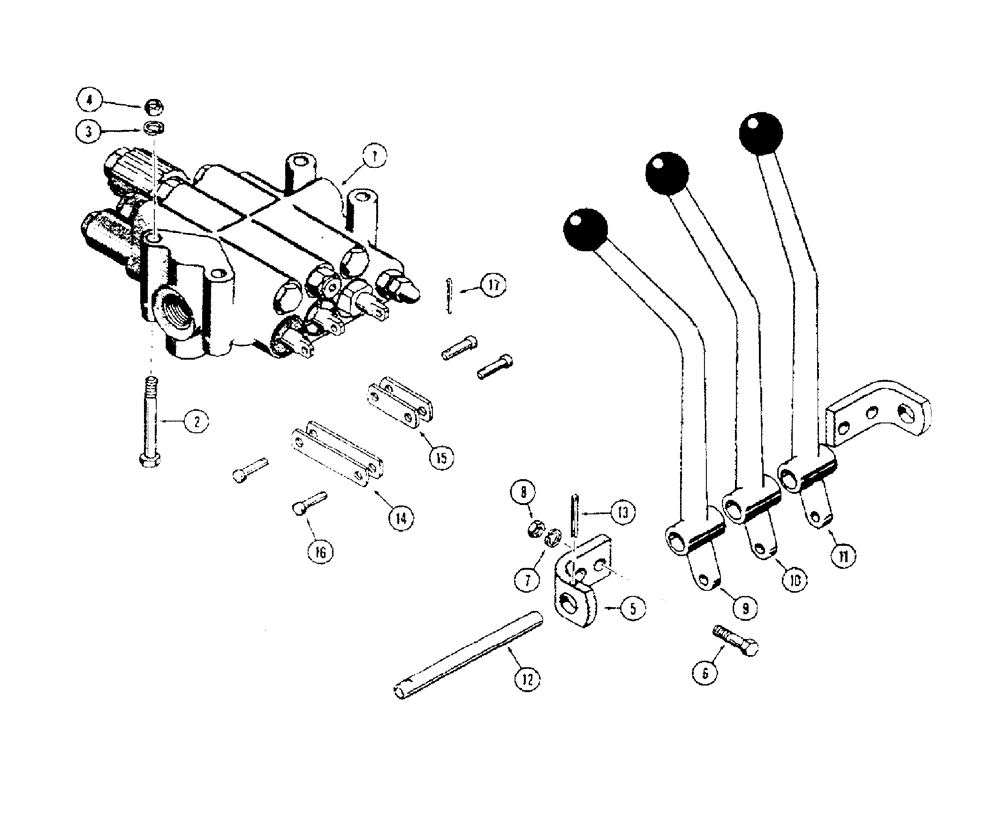

Запчасти Case 450 (262[1]) - 3 SPOOL VALVES AND LEVERS (07) - HYDRAULIC SYSTEM

1

D36184

VALVE

VALVE - three spool (use on power angle-tilt dozer with or without backhoe and power angle dozer with pull behind) parts list page 275 (when stock is exhausted, use D45043 valve for service), lever

1шт.

D45043

VALVE

VALVE - three spool (use on power angle tilt dozer, angle dozer with or without backhoe and power angle dozer with pull behind)parts list page 277, lever

1шт.

2

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

3 spool valves & levers

4шт.

3

92-6

LOCK WASHER,3/8"

3-spool valves & levers

4шт.

4

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC), 3-spool valves & levers

4шт.

5

D35396

BRACKET

BRACKET - valve lever mounting, 3-spool

2шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3-spool valve & lever

4шт.

7

92-6

LOCK WASHER,3/8"

3-spool valve & lever

4шт.

8

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC), 3-spool vavle & lever

4шт.

9

D35395

LEVER

LEVER - valve control (R.H.), 3-spool

1шт.

10

D35393

SPARE PART LEVER - valve control (center), 3-spool

1шт.

11

D35394

SPARE PART LEVER - valve control (L.H.), 3-spool

1шт.

12

D33251

SHAFT

SHAFT - pivot, 3-spool valve & lever

1шт.

13

138-96

LOCK PIN,3/16" x 1", Slotted

3-spool valve & lever

1шт.

14

D35397

LINK

LINK - long, 3-spool valve & lever

4шт.

15

D34624

LINK

LINK - short, 3-spool valve & lever

2шт.

16

141-3

CLEVIS PIN,5/16" x .940"

Link, 3-spool valve & lever

6шт.

17

132-24

COTTER PIN,3/32" x 1/2"

3-spool valve & lever

6шт.
