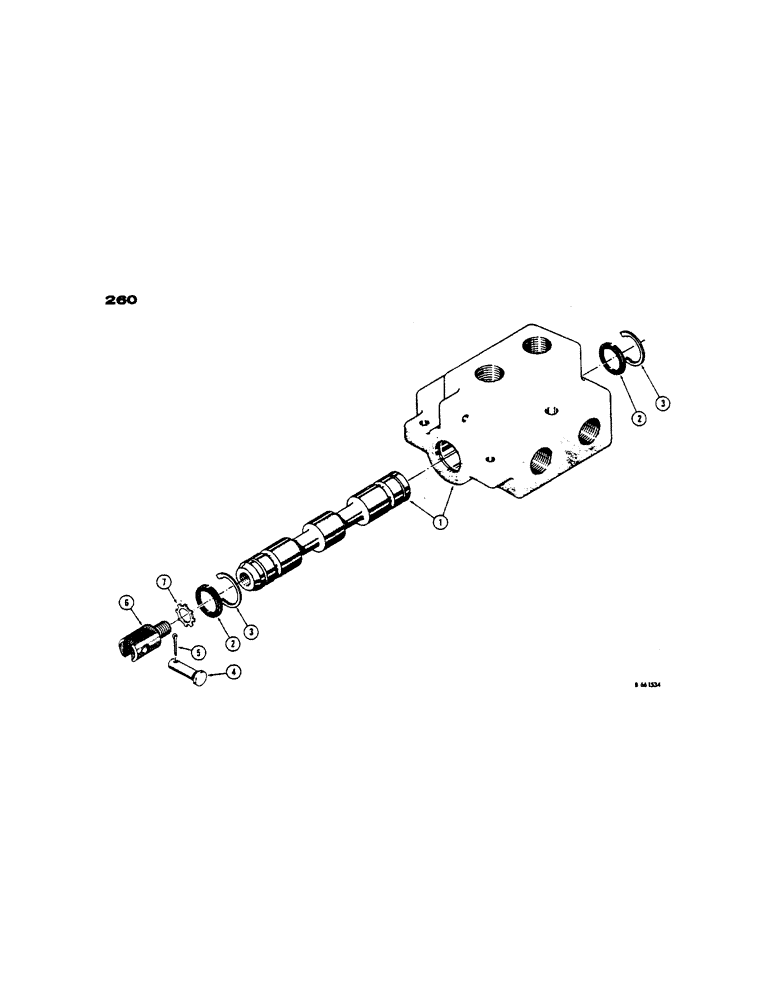

Запчасти Case 450 (260) - D26726 DIVERSION VALVE (07) - HYDRAULIC SYSTEM

D26726

VALVE

- diversion, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - matched set

1шт.

2

D23691

O-RING

SEAL - guad ring, spool

2шт.

3

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, , spool #100, Ext, Crescent

2шт.

4

D23693

AXLE PIN

PIN - clevis

1шт.

5

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

6

D23694

ADAPTER

YOKE - control rod

1шт.

7

D23695

WASHER

- lock

1шт.
