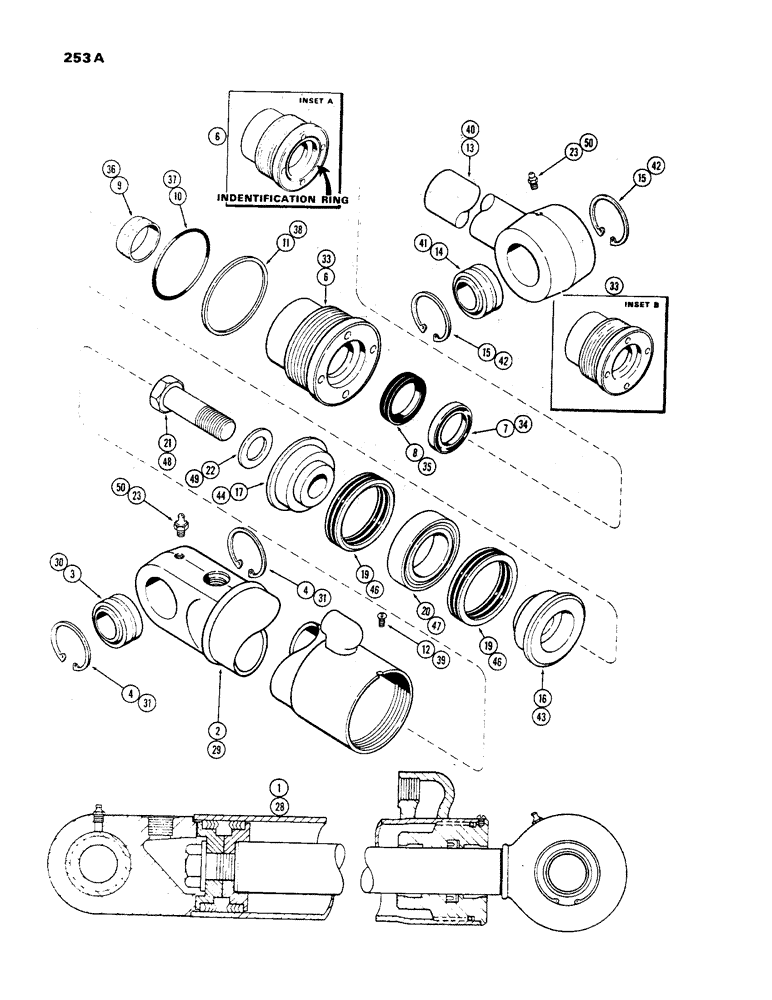

Запчасти Case 450 (253A) - G33609 DOZER TILT CYL., 3-1/2" DIA. CYL. W/8" STROKENING (07) - HYDRAULIC SYSTEM

1

G33609

CYLINDER ASSY. power angle tilt, Includes: Ref. 2 - 23

1шт.

2

D36222

TUBE

ASSY. - cylinder body, Includes: Ref. 3 and 4

1шт.

3

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- tube (self-aligning)

1шт.

4

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , bushing 2.44", Int, #244

2шт.

G33639

GLAND

ASSY., Includes: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring) (See Inset A)

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of P/N G32290 Cylinder Repair Seal Kit

1шт.

8

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

Part of P/N G32290 Cylinder Repair Seal Kit

1шт.

9

D27380

SCRAPER RING

WIPER - piston rod, inner (split type)

1шт.

Part of P/N G32290 Cylinder Repair Seal Kit

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O"RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of P/N G32290 Cylinder Repair Seal Kit

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O"ring back-up

1шт.

Part of P/N G32290 Cylinder Repair Seal Kit

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

13

G33611

ROD

ASSY. - piston (2" dia.) (w/identification ring), Includes: Ref. 14 and 15

1шт.

14

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- piston rod (self-aligning)

1шт.

15

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , bushing 2.44", Int, #244

2шт.

16

G33167

PISTON

- split (rod end) (w/identification ring)

1шт.

17

D28367

PISTON

- split (bolt end), Includes: Ref. 19 - 20

1шт.

19

NSS

NOT SOLD SEPARAT

PACKING ASSY. - ("V" type)

2шт.

20

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

21

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

22

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-7/64 x 1-7/8 x 9/64")

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.

G32290

SEAL

KIT cylinder repair, Includes: Ref. 7 - 11

1шт.

28

G32170

CYLINDER ASSY. power angle tilt, order G33609, Includes: Ref. 29 - 50

1шт.

29

D36222

TUBE

ASSY. - cylinder body, G32170 dozer tilt cylinder w/o gland id ring, Includes: Ref. 30 and 31

1шт.

30

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- tube (self-aligning), G32170 dozer tilt cylinder w/o gland id ring

1шт.

31

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , bushing, G32170 dozer tilt cylinder without gland id ring 2.44", Int, #244

2шт.

G32736

GLAND

ASSY., G32170 dozer tilt cylinder w/o id ring, Includes: Ref. 33 - 38

1шт.

33

NSS

NOT SOLD SEPARAT

GLAND - (w/out identification ring) (See Inset B), G32170 dozer tilt cylinder

1шт.

34

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16"), G32170 dozer tilt cylinder w/o gland id ring

1шт.

Part of P/N G32290 Cylinder Repair Seal Kit

1шт.

35

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16"), G32170 dozer tilt cylinder w/o gland id ring

1шт.

Part of P/N G32290 Cylinder Repair Seal Kit

1шт.

36

D27380

SCRAPER RING

WIPER - piston rod, inner (split type), G32170 dozer tilt cylinder w/o gland id ring

1шт.

Part of P/N G32290 Cylinder Repair Seal Kit

1шт.

37

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O"RING - gland (3-1/2 x 3-3/4 x 1/8"), G32170 dozer tilt cylinder w/o id ring

1шт.

Part of P/N G32290 Cylinder Repair Seal Kit

1шт.

38

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O"ring back-up, G32170 dozer tilt cylinder w/o id ring

1шт.

Part of P/N G32290 Cylinder Repair Seal Kit

1шт.

39

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tappein), G32170 dozer tilt cylinder w/o gland id ring

1шт.

40

D36217

ROD ASSY.

- piston (2" dia.) (w/o identification ring), G32170 dozer tilt cylinder, Includes: Ref. 41 and 42

1шт.

41

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- piston rod (self-aligning), G32170 dozer tilt cylinder w/o gland id ring

1шт.

42

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , bushing, G32170 dozer tilt cylinder without gland id ring 2.44", Int, #244

2шт.

43

D28368

PISTON

- split (rod end) (w/out identification ring), G32170 dozer tilt cylinder

1шт.

44

D28367

PISTON

- split (bolt end), G32170 dozer tilt cylinder w/o gland id ring

1шт.

G33237

PACKING

ASSY. - piston, G32170 dozer tilt cylinder w/o gland id ring, Includes: Ref. 46 and 47

1шт.

Part of P/N G32290 Cylinder Repair Seal Kit

1шт.

46

NSS

NOT SOLD SEPARAT

PACKING ASSY. - ("V" type), G32170 dozer tilt cylinder w/o gland id ring

2шт.

47

NSS

NOT SOLD SEPARAT

RING - center bearing, G32170 dozer tilt cylinder w/o gland id ring

1шт.

48

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston, G32170 dozer tilt cylinder w/o gland id ring Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

50

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.), G32170 dozer tilt cylinder w/o gland id ring

2шт.

G32290

SEAL

KIT cylinder repair, Includes: Ref. 34 - 38 and P/N G33237, G32170 dozer tilt cylinder w/o gland id ring

1шт.
