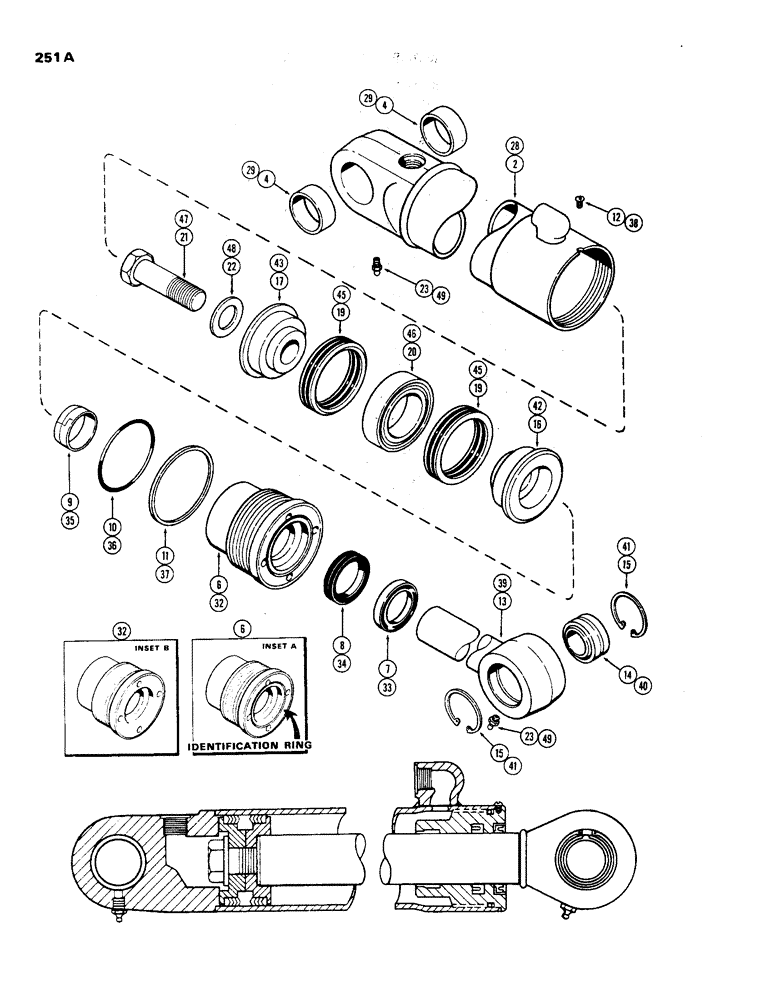

Запчасти Case 450 (251A) - G33620 DOZER ANGLING CYL., 4" DIA. CYL. W/8-5/16" STROKE (07) - HYDRAULIC SYSTEM

G33620

CYLINDER

ASSY. power angle tilt,, Includes: Ref. 2 - 23

1шт.

2

D36212

TUBE

ASSY. - cylinder body, Includes: Ref. 4

1шт.

4

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

G33640

GLAND

ASSY, Includes: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring) (See Inset A)

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of P/N G32614 Cylinder Repair Seal Kit

1шт.

8

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

Part of P/N G32614 Cylinder Repair Seal Kit

1шт.

9

D27380

SCRAPER RING

WIPER - piston rod, inner (split type)

1шт.

Part of P/N G32614 Cylinder Repair Seal Kit

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O"RING - gland (4 x 4-1/4 x 1/8")

1шт.

Part of P/N G32614 Cylinder Repair Seal Kit

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland "O" Ring

1шт.

Part of P/N G32614 Cylinder Repair Seal Kit

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

13

G33621

ROD ASSY.

- piston (w" dia.) (w/identification ring), Includes: Ref. 14 and 15

1шт.

14

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- piston rod (self-aligning)

1шт.

15

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , bushing 2.44", Int, #244

2шт.

16

G33623

PISTON

- split (rod end) (w/identification ring)

1шт.

17

D46930

PISTON

- split (bolt end)

1шт.

G33239

PACKING

ASSY. - piston, Includes: Ref. 19 and 20

1шт.

Part of P/N G32614 Cylinder Repair Seal Kit

1шт.

19

NSS

NOT SOLD SEPARAT

PACKING ASSY. - ("V" type)

2шт.

20

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

21

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston

1шт.

22

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.

G32614

SEAL KIT

cylinder repair, Includes: 7 - 11 and P/N G33239

1шт.

G32583

CYLINDER ASSY. power angle tilt, order G33620, Includes: Ref. 28 - 49

1шт.

28

D36212

TUBE

ASSY. - cylinder body, G32583 dozer angling cylinder w/o gland id ring, Includes: Ref. 29

1шт.

29

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube, G32583 dozer angling cylinder w/o gland id ring

2шт.

G32800

GLAND

ASSY., G32583 dozer angling cylinder w/o gland id ring, Includes: Ref. 32 - 37

1шт.

32

NSS

NOT SOLD SEPARAT

GLAND - (w/o identification ring) (See Inset B), G32583 dozer angling cylinder

1шт.

33

95144

BALL BEARING

WIPER - piston rod, outer (2 x 2-1/2 x 5/16"), G32583 dozer angling cylinder w/o gland id ring

1шт.

Part of P/N G32614 Cylinder Repair Seal Kit

1шт.

34

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7-16"), G32583 dozer angling cylinder w/o gland id ring

1шт.

Part of P/N G32614 Cylinder Repair Seal Kit

1шт.

35

D27380

SCRAPER RING

WIPER - piston rod, inner (split type), G32583 dozer angling cylinder w/o gland id ring

1шт.

Part of P/N G32614 Cylinder Repair Seal Kit

1шт.

36

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O"RING - gland (4 x 4-1/4 x 1/8"), G32583 dozer angling cylinder w/o id ring

1шт.

Part of P/N G32614 Cylinder Repair Seal Kit

1шт.

37

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland "O" Ring , G32583 Dozer angling cylinder w/o ID ring

1шт.

Part of P/N G32614 Cylinder Repair Seal Kit

1шт.

38

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4"self-tapping), G32583 dozer angling cylinder w/o id ring

1шт.

39

D36207

ROD

ASSY. - piston (2" dia.) (w/o identification ring), G32583 dozer angling cylinder, Includes: Ref. 40 and 41

1шт.

40

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- piston rod (self-aligning), G32583 dozer angling cylinder w/o gland id ring

1шт.

41

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , bushing, G32583 dozer angling cylinder without gland id ring 2.44", Int, #244

2шт.

42

D46424

PISTON

- split (rod end) (w/o identification ring), G32583 dozer angling cylinder

1шт.

43

D46930

PISTON

- split (bolt end), G32583 dozer angling cylinder w/o gland id ring

1шт.

G33239

PACKING

ASSY. - piston, G32583 dozer angling cylinder w/o gland id ring, Includes: Ref. 45 and 46

1шт.

Part of P/N G32614 Cylinder Repair Seal Kit

1шт.

45

NSS

NOT SOLD SEPARAT

PACKING ASSY. - ("V" type), G32583 dozer angling cylinder w/o gland id ring

2шт.

46

NSS

NOT SOLD SEPARAT

RING - center bearing, G32583 dozer angling cylinder w/o gland id ring

1шт.

47

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston, G32583 dozer angling cylinder w/o gland id ring

1шт.

48

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64"), G32583 dozer angling cylinder w/o gland id ring

1шт.

49

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.), G32583 dozer angling cylinder w/o gland id ring

2шт.

G32614

SEAL KIT

cylinder repair, Includes: Ref. 33 - 37 and P/N G33239, G32583 dozer angling cylinder w/o gland id ring

1шт.
