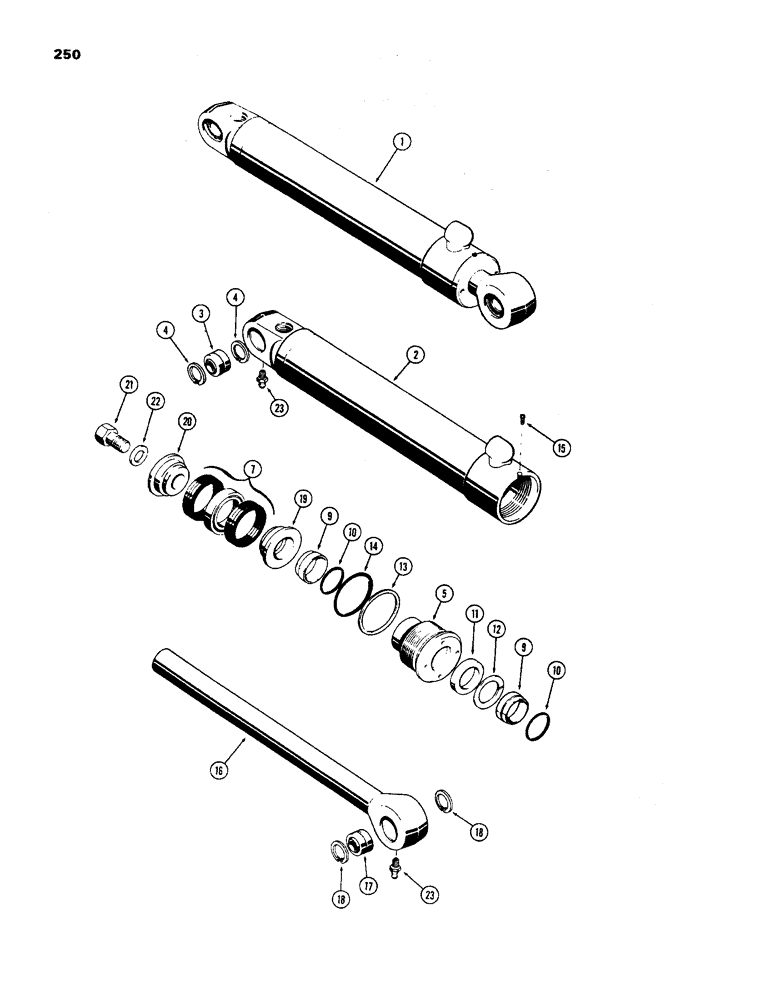

Запчасти Case 450 (250) - D34791 DOZER ANGLING CYLINDER, 4" DIAMETER CYLINDER W/8-5/16" STROKE (07) - HYDRAULIC SYSTEM

1

D34791

CYLINDER ASSY. - angle tilt (Order G33620 Figure 251A), Includes: Ref. 2 - 23

1шт.

2

D36212

TUBE

ASSY. - cylinder body, Includes: Ref. 2 and 3

1шт.

3

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- tube (self-aligning)

1шт.

4

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , bushing 2.44", Int, #244

2шт.

5

D45071

GLAND

- (w/o identification ring)

1шт.

7

D36964

PACKING

ASSY. - piston

1шт.

D42876

GLAND

REPAIR KIT, Includes: Ref. 9 - 15

1шт.

9

D27380

SCRAPER RING

WIPER - piston rod, inner & outer (split type)

2шт.

10

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

"O"RING - wiper seal

2шт.

11

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

12

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- seal back-up

1шт.

13

D27382

RING

- gland "O"ring back-up

1шт.

14

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O"RING - gland (4 x 4-1/4 x 1/8")

1шт.

15

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

16

D36207

ROD

ASSY. - piston (2" dia.) (w/o identification ring), Includes: Ref. 17 and 18

1шт.

17

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- piston rod (self-aligning)

1шт.

18

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , bushing 2.44", Int, #244

2шт.

19

D46424

PISTON

- split (rod end) (w/o identification ring)

1шт.

20

D46930

PISTON

- split (bolt end)

1шт.

21

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston retaining

1шт.

22

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.
