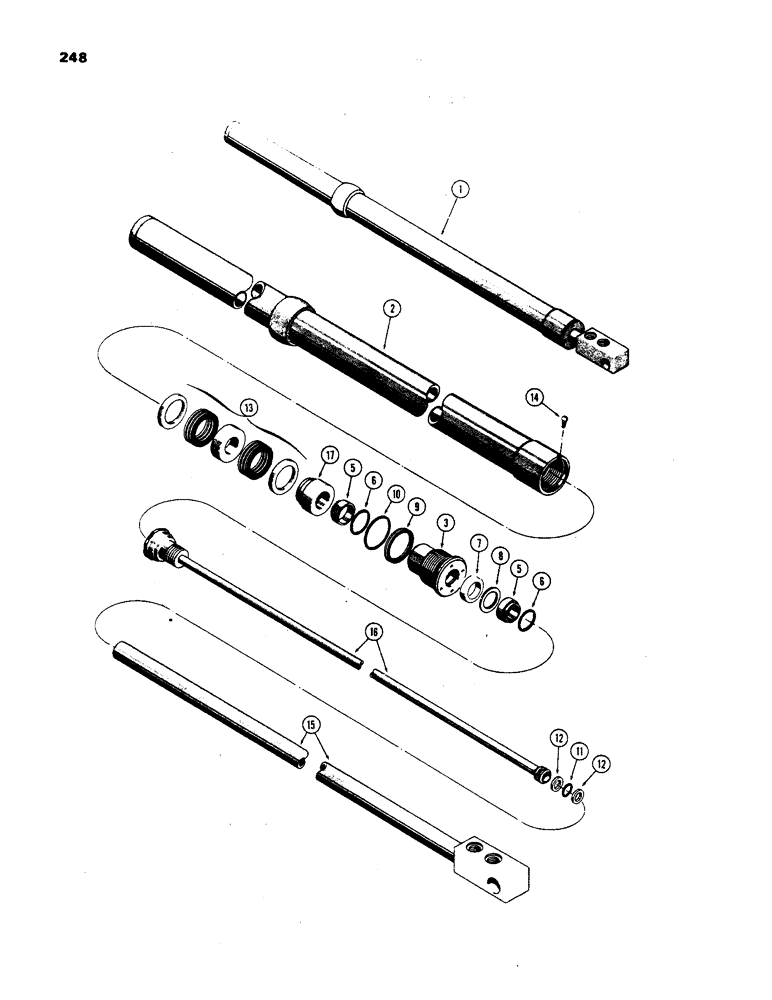

Запчасти Case 450 (248) - D34302 DOZER ANGLING CYLINDER, 2" DIAMETER CYLINDER WITH 36-1/2" STROKE (07) - HYDRAULIC SYSTEM

1

D34302

CYLINDER ASSY. - angling (Order G33764 Figure 249A), Includes: Ref. 2 - 17

1шт.

2

D34671

TUBE

- cylinder body

1шт.

3

D45066

GLAND

- (w/o identification ring)(Order G32733 from Figure 249A)

1шт.

D37361

KIT

PACKING - cylinder repair (used w/D45066 gland), Includes: Ref. 5 - 14

1шт.

5

D27706

WIPER SEAL

WIPER - piston rod, inner & outer (split type)

2шт.

6

D27878

O-RING,1.609" ID x 1.887" OD

"O"RING - wiper

2шт.

7

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

8

D28498

RING

- piston seal back-up

1шт.

9

D27856

RING

- gland "O"ring back-up

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O"RING - gland (2-1/2 x 2-3/4 x 1/8")

1шт.

11

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O"RING - inner tube (5/8 x 13/16 x 3/32")

1шт.

12

D34938

BACK-UP RING,0.827" OD

- tube "O"ring back-up

2шт.

13

D34384

PACKAGE

PACKING ASSY. - piston

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland (#8-32 x 1/4" self-tapping)

1шт.

15

D34672

ROD

- piston (1-1/2" dia.) (w/o identification ring)

1шт.

16

D34385

TUBE

- piston rod, inner

1шт.

17

D34388

PISTON - split, front half (w/o identification ring)

1шт.
