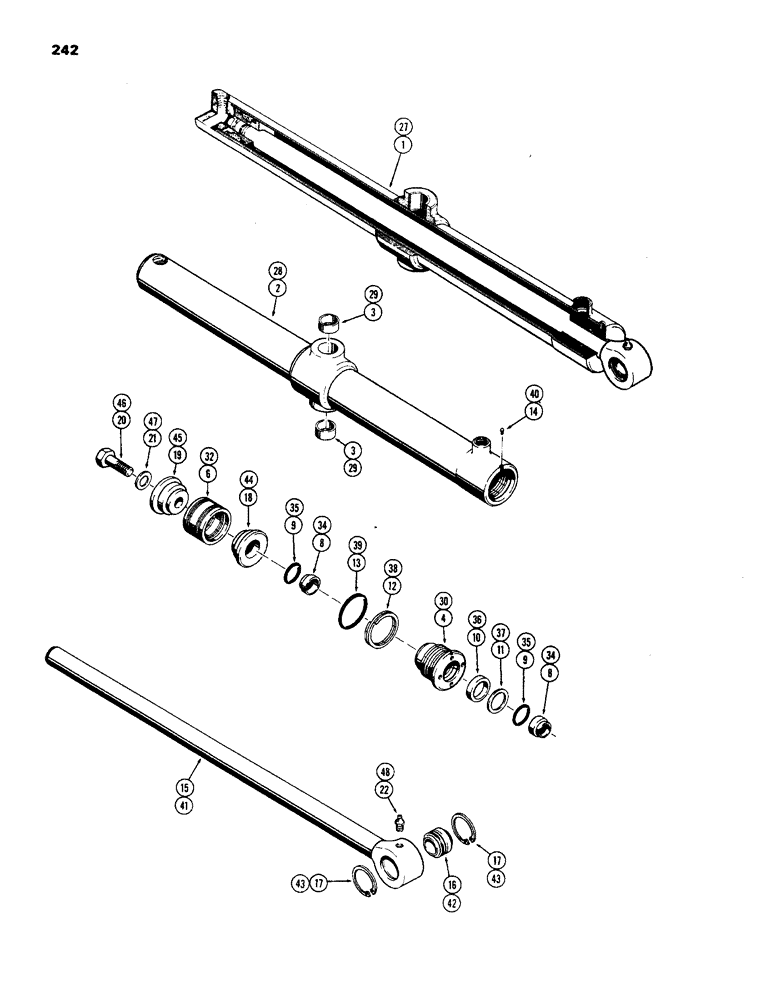

Запчасти Case 450 (242) - D34790 DOZER LIFT CYL., 2-1/2" DIA. CYL. W/27-3/8" STROKE (07) - HYDRAULIC SYSTEM

1

D34790

CYLINDER ASSY.

- lift (power angle-tilt), Includes: Ref. 2 - 22

2шт.

2

D36215

TUBE

ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube trunnions

2шт.

4

D45070

GLAND

- (w/out identification ring)

1шт.

6

G33193

PACKING

ASSY. - piston

1шт.

D42867

GLAND

REPAIR KIT, Includes: Ref. 8 - 14

1шт.

8

D27705

WIPER

- piston rod, inner & outer (split type)

2шт.

9

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O"RING - wiper seal (1-3/8 x 1-7/8 x 1/8")

2шт.

10

A36968

SEAL - piston rod (1-1/4 x 1-3/4 x 7/16")

1шт.

11

D28497

RING

- piston seal back-up

1шт.

12

D27856

RING

- gland "O"ring back-up

1шт.

13

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O"RING - gland (2-1/2 x 2-3/4 x 1/8")

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

15

D36214

PISTON ROD

ROD ASSY. - piston (1-1/4" dia.) (w/o identification ring), Includes: Ref. 16 and 17

1шт.

16

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING - piston rod (self-aligning)

1шт.

17

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , bushing 1.625", Int, #162

2шт.

18

NLS

NO LONGER SERVICED

PISTON - split (rod end) (w/o identification ring)

1шт.

19

D28364

PISTON

- split (bolt end)

1шт.

20

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston retaining (3/4 x 2-1/2" N.F. hex.)

1шт.

21

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T str.)

1шт.

27

D34301

NO LONGER SERVICED

CYLINDER ASSY. - lift (power angling), D34301 dozer used w/ power angle 2-1/2"dia w/ 30-3/8" stroke, Includes: Ref. 28 - 48

2шт.

28

D35093

TUBE

ASSY. - body, D34301 dozer lift cylinder used w/ power angle 2-1/2"dia w/ 30-3/8" stroke, Includes: Ref. 29

1шт.

29

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube, D34301 dozer lift cylinder used w/ power angle 2-1/2"dia w/ 30-3/8" stroke

2шт.

30

D45070

GLAND

- (w/o identification ring), D34301 dozer lift cylinder used w/ power angle 2-1/2"dia w/ 30-3/8" stroke

1шт.

32

G33193

PACKING

ASSY. - piston, D34301 dozer lift cylinder used w/ power angle 2-1/2"dia w/ 30-3/8" stroke

1шт.

D42867

GLAND

REPAIR KIT, D34301 dozer lift cylinder used w/ power angle 2-1/2"dia w/ 30-3/8" stroke, Includes: Ref. 34 - 40

1шт.

34

D27705

WIPER

- piston rod, inner & outer (split type), D34301 dozer lift cylinder used w/ power angle 2-1/2"dia w/ 30-3/8" stroke

2шт.

35

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O"RING - wiper seal (1-3/8 x 1-7/8 x 1/8"), D34301 dozer lift cylinder used w/ power angle 2-1/2"dia w/ 30-3/8" stroke

2шт.

36

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod (1-1/4 x 1-3/4 x 7/16"), D34301 dozer lift cylinder used w/ power angle 2-1/2"dia w/ 30-3/8" stroke

1шт.

37

D28497

RING

- piston seal back-up, D34301 dozer lift cylinder used w/ power angle 2-1/2"dia w/ 30-3/8" stroke

1шт.

38

D27856

RING

- gland "O"ring back-up, D34301 dozer lift cylinder used w/ power angle 2-1/2"dia w/ 30-3/8" stroke

1шт.

39

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O"RING - gland (2-1/2 x 2-3/4 x 1/8"), D34301 dozer lift cylinder used w/ power angle 2-1/2"dia w/ 30-3/8" stroke

1шт.

40

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping), D34301 dozer lift cylinder used w/ power angle 2-1/2"dia w/ 30-3/8" stroke

1шт.

41

D34728

PISTON ROD

ROD ASSY. - piston (1-1/4" dia.) (w/o identification ring), D34301 dozer lift cylinder used w/ power angle 2-1/2"dia w/ 30-3/8" stroke, Includes: Ref. 42 and 43

1шт.

42

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING - piston rod (self-aligning), D34301 dozer lift cylinder used w/ power angle 2-1/2"dia w/ 30-3/8" stroke

1шт.

43

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , bushing, D34301 dozer lift cylinder used with power angle 2-1/2"dia with 30-3/8" stroke 1.625", Int, #162

2шт.

44

NLS

NO LONGER SERVICED

PISTON - split (rod end) (w/o identification ring), D34301 dozer lift cylinder used w/ power angle 2-1/2"dia w/ 30-3/8" stroke

1шт.

45

D28364

PISTON

- split (bolt end), D34301 dozer lift cylinder used w/ power angle 2-1/2"dia w/ 30-3/8" stroke

1шт.

46

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston retaining (3/4 x 2-1/2" N.F. hex.), D34301 dozer lift cylinder used w/ power angle 2-1/2"dia w/ 30-3/8" stroke

1шт.

47

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt, D34301 dozer lift cylinder used w/ power angle 2-1/2"dia w/ 30-3/8" stroke

1шт.

48

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8 P.T. str.), D34301 dozer lift cylinder used w/ power angle 2-1/2"dia w/ 30-3/8" stroke

1шт.
