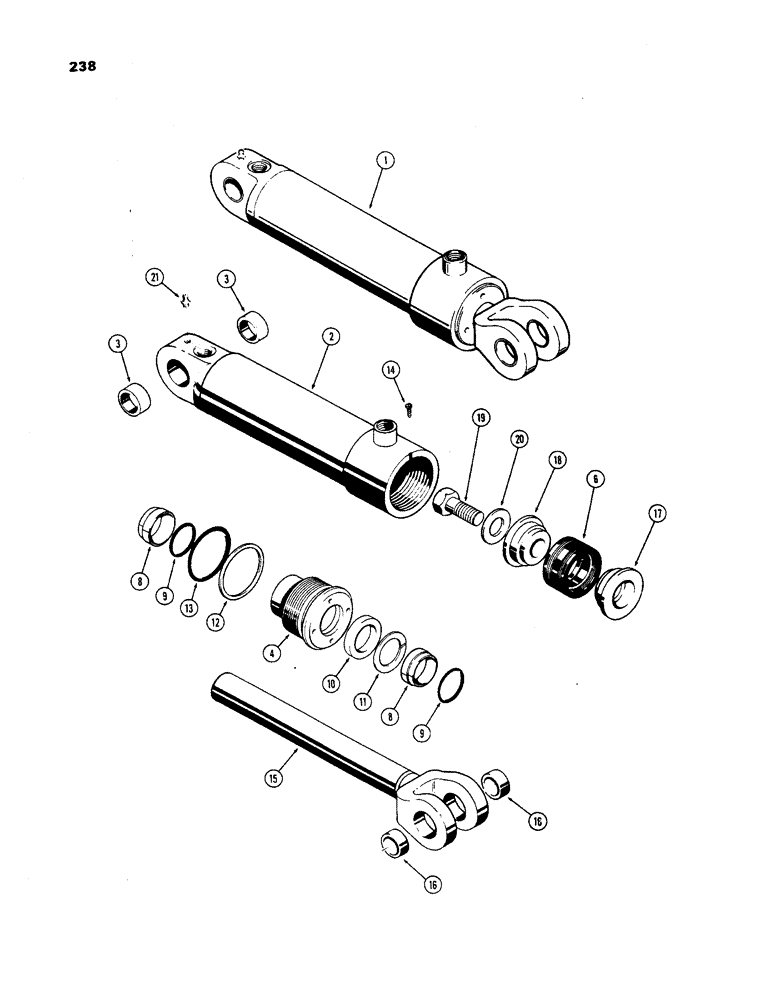

Запчасти Case 450 (238) - D34738 LOADER HYDRA-LEVELING CYL., 3" DIA. CYL. W/7-1/4" STROKE, W/O GLAND ID RING, W/SOLID OUTER WI (07) - HYDRAULIC SYSTEM

1

D34738

CYLINDER

ASSY. - hydra-leveling, Includes: Ref. 2 - 21

1шт.

2

D35129

CYLINDER

TUBE ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

4

D45068

GLAND

- (w/out identification ring)

1шт.

D42872

GLAND

PACKING KIT, Includes: Ref. 6 - 14

1шт.

6

D28374

PACKAGE,SERVICE

PACKING ASSY. - piston

1шт.

D42872

GLAND

REPAIR KIT, Includes: Ref. 8 - 14

1шт.

8

D27432

SHIM

- piston rod, inner & outer (split type)

2шт.

9

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O"RING- wiper seal (1-7/8 x 2-1/8 x 1/8")

1шт.

10

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")

1шт.

11

D28499

RING

- piston seal back-up

1шт.

12

D28049

RING

- gland "O"ring back-up

1шт.

13

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O"RING - gland (3 x 3-1/4 x 1/8")

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

15

D35126

ROD

ASSY. - piston (1-3/4" dia.) (w/o identification ring), Includes: Ref. 16

1шт.

16

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

17

D28897

PISTON

- split (rod end) (w/o identification ring)

1шт.

18

D28896

PISTON

- split (bolt end)

1шт.

19

12-1640

BOLT - piston retaining (1 x 2-1/2" N.F. hex.)

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-7/64 x 1-7/8 x 9/64")

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.
