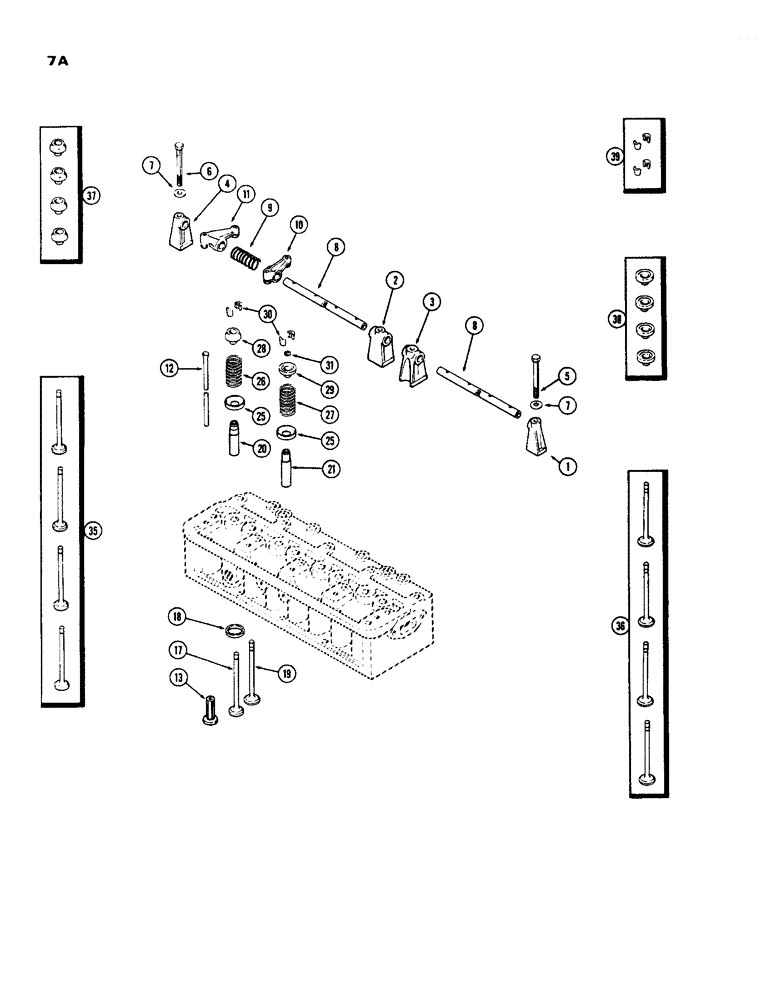

Запчасти Case 450 (007A) - VALVE MECHANISM, (188) SPARK IGNITION ENGINE (01) - ENGINE

1

G2100

BRACKET

- front, rocker shaft

1шт.

2

G2101

BRACKET

- center, rocker shaft

1шт.

3

G2102

BRACKET

- intermediate, rocker shaft

2шт.

4

A36615

BRACKET

- rear, rocker arm shaft

1шт.

5

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- rocker bracket (3/8 x 3-1/2" N.C. hex.)

4шт.

6

G49067

BOLT

- rear bracket (3/8 x 3-1/2" N.C. hex, drilled)

1шт.

7

A30058

WASHER

- bracket bolts (13/32 x 7/8 x 1/8")

5шт.

8

A38181

SHAFT

- rocker arm (Replaces G11747 & G11743)

1шт.

9

G48501

SPRING

- rocker shaft

4шт.

10

A51149

ARM

ASSY. - rocker, L.H. (Replaces G45771)

4шт.

11

A51148

ARM

ASSY. - rocker, R.H. (Replaces G45770)

4шт.

12

G47129

PUSH ROD

ROD - push

8шт.

13

A30006

TAPPET

- valve

8шт.

17

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 35)

4шт.

18

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order from figure 7)

4шт.

19

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 36)

4шт.

20

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve stem (Order from figure 7)

4шт.

21

NSS

NOT SOLD SEPARAT

GUIDE - intake valve stem (Order from figure 7)

4шт.

25

G49065

SEAT

- valve spring

8шт.

26

G10004

SPRING

- exhaust valve (2-3/16" free length w/7-3/4 coils)

4шт.

27

A30025

SPRING

- intake valve (2-3/8" free length w/8-1/4 coils)

4шт.

28

NSS

NOT SOLD SEPARAT

CAP ASSY. - roto, exhaust valve (Order ref. 37)

4шт.

29

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 38)

4шт.

30

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order ref. 39)

16шт.

31

G46851

SEAL

- rubber, intake valve stem

4шт.

35

G11988

VALVE

SET - exhaust (Set of 4)

1шт.

36

G11987

VALVE

SET - intake (Set of 4)

1шт.

37

G11928

CAP

ROTO CAP SET - exhaust valve (Set of 4)

1шт.

38

G11927

RETAINER

SET - intake valve spring (Set of 4)

1шт.

39

G11929

LOCK

SET - valve spring (Set of 4)

4шт.
